A-10 Stereo Amfi
50W Stereo Amplifier with Direct Energy Design
Simplicity. Finesse. Performance.
The A-10 Direct Energy Design amplifiers with Symmetrical Construction offer class-leading, high quality sound, wrapped in understated, technical elegance.

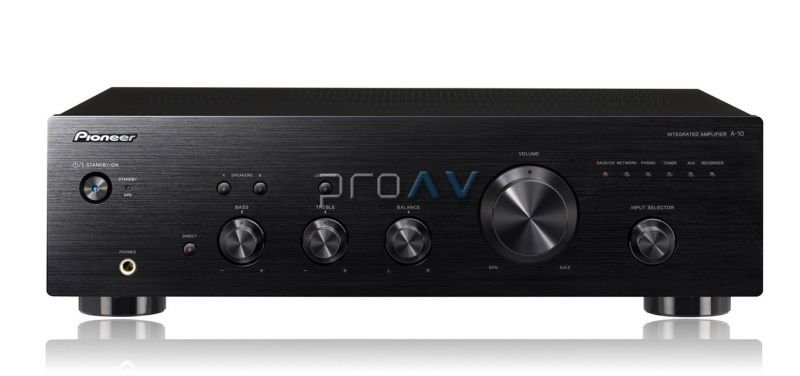

The front panel comes with control knobs for Volume, Bass/ Treble/ Balance and Input Source selection. A range of tactile buttons finetune Loudness, Direct Mode and Speaker A/B. The rear panel provides immediate connectivity to Aux-In, Network, Recorder, Speaker A + B and 'Source Direct Mode' devices.
Product highlights at a glance:
- 50W + 50W (4 Ω, 20Hz - 20kHz)
- Phono MM input
- Auto Power Down.
Main Features
Output Power per Channel50W
Impedance at Output Level• 4 Ω - 16 Ω (A / B)
• 8 Ω - 32 Ω (A + B)
• 4 Ω - 16 Ω (Bi-wiring)Number of Channels2
Input Connections• SACD/CD
• Phono (MM)
• Aux
• Network
• Recorder
• TunerOutput Connections• Recorder
• Phones
Input & Output connections
HeadphoneYes
Large speaker terminalsYes
Phono InputYes
Speaker A/BYes
Audio Features
Bass/Treble Tone ControlsYes
'DIRECT' SwitchYes
Loudness (+)Yes
MutingYes
Source DirectYes
Power Output
Power output per channel50 W
Condition20 Hz – 20 kHz, 0,1 % КНИ, 4 Ω
Rated Power Output50 W per channel
Power RequirementsAC 220 - 230 В / 50 Гц
Power Consumption (in use / standby)135 W / 0.30 W
Auto Power DownYes
Construction
Design- Direct Energy Design Amp
- Symmetrical Power Amp
- Clean Ground Construction
- Isolated Power Supply
- Source Direct Mode
- Speaker A, B, A+B Selector
- Auto Power Down
Amplifier Specifications
Dimensions (W x H x D)435 x 128 x 360 mm
Weight6.7 kg
| User manual | 01/06/2012 | Turkish | 2424 KB | View in browser|Download |
