A-30 Stereo Amfi

Simplicity. Finesse. Performance.

The A-30 Direct Energy Design amplifiers with Symmetrical Construction offer class-leading, high quality sound, wrapped in understated, technical elegance.

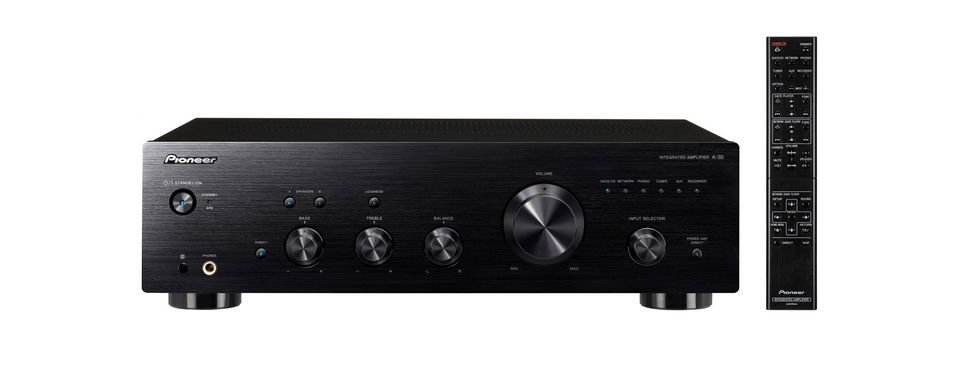

The brushed aluminium front panel comes with polished-black, aluminium control knobs for Volume, Bass / Treble / Balance and Input Source adjustments, whilst a selection of blue LED buttons fine-tune Loudness, Speaker A/B, Power Amp Direct and confirm your choice of Input Source.

The rear panel is designed to meet the audio requirements of multiple systems and provide immediate connectivity to Aux-In, Network, Recorder, Power Amp Direct, Speaker A + B and 'Source Direct Mode' devices.

Exclusive to this mid-range model:

Symmetrical Construction

Clean Ground Construction

Power Amp Direct Mode

5 tacticle keys including Power Amp Direct

A trans-stabiliser

12 blue LED selector buttons

Motorised aluminium Volume Knob

Main Features

Output Power per Channel: 70 W

Impedance at Output Level

4-16 Ω (A / B)


8-16 Ω (A + B)


4-16 Ω (Bi-Wire)

Number of Channels: 2

Input Connections

SACD/CD


Network


Recorder


PHONO (MM)


Aux

Tuner

Powe Amp Direct In

Output Connections: Recorder
, Phones

Remote Control: High-quality aluminium remote control included

Input & Output connections

Headphone

Large speaker terminals

Phono Input

Pre-amp Output: (2.1 ch)

Speaker A/B

Audio Features

Bass/Treble Tone Controls

'DIRECT' Switch

Loudness (+)

Muting

Source Direct

Power Output

Power output per channel: 70 W

Condition: 20 Hz-20 kHz, 1% THD, 4Ω

Rated Power Output: 70 W per channel

Power Requirements

AC 220 - 230 V / 50/60 Hz

Power Consumption (in use / standby): 175 W / 0.30 W

Auto Power Down

Frequency Response: LINE etc.: 5 Hz - 100 kHz, +0/-3 Hz

Construction

Direct Construction (+)

Design Direct Energy Design Amp


Symmetrical Power Amp


Clean Ground Construction


Isolated Power Supply


Source Direct Mode


Trans-Stabiliser


Speaker A, B, A+B Selector


Aluminium Panels


Aluminium Volume Knob


Auto Power Down

Amplifier Specifications

Dimensions (W x H x D): 435 x 128 x 360 mm

Weight: 7.9 kg
