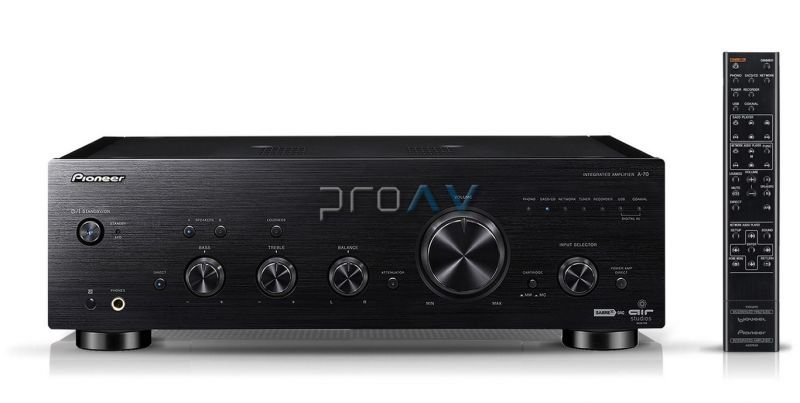

A-70 Stereo Amfi
180W Class D Integrated Amplifier with ESS SABRE32 DAC, USB DAC and AIR Studios Monitor Certification
Engineered for audiophile-grade amplification.
The A-70-K amplifier is designed to reproduce the finest sonoric details in every chord, cadence and audio composition. Extensively tuned by several of the world's leading sound technicians, the A-70-K comes with the prestigious AIR Studios seal of approval.
The A-70-K features high-fidelity amplification with the most efficient Class D amplifier; the Twin Block Shield Transformers maintain a stable current for powerful, clean sound reproduction. High-grade parts are used for the integrated amplifier’s terminals to provide the best connection for pure sound delivery. Metal insulators, a rigid under-base and the aluminium panels further enhance sound quality.
At ease with old-school vinyl as well as the most current digital files, whether they're stored on PC, USB or CD, the A-70-K is fully equipped to handle and optimise even your most compromised audio formats.
Massive power
Audiophile-level Class D amps bring you unprecedented power output. Short signal paths ensure impeccable sound. Efficient cooling provides superior performance with lower power consumption (-44% vs Analogue Amps). Now with 4-16Ω speaker support.
AIR Studios tuning
To ensure professional-grade performance, this amplifier has been tested by the professionals at AIR Studios. London's AIR Studios is a state-of-the-art recording complex with unmatched facilities for film scoring, rock, pop, classical and orchestral work, post-production and live events.
Jitter-free performance
The highly acclaimed 192 kHz/32-bit ESS SABRE32 Audio DAC delivers exceptional sound, with ultra low distortion and high signal-to-noise ratio. The result is an astounding audio reproduction that will satisfy the most demanding audio enthusiasts.
Multi-functional setup
This integrated amplifier is equipped with a power amp direct terminal, allowing it to be used as a power amplifier in a multi-channel setup. Twin transformers are, provided for the power amp and the pre amp, each shielded in separate blocks to ensure their integrity and reduce interference.
Play lossless digital music files from USB
USB DAC (Digital Analogue Converter) lets you bypass your PC's DAC in favour of your amp's higher grade internal DAC and transforms your FLAC and WAV music files into the purest audio possible.
Perfect pitch
Fine-tuning sound levels with a volume knob isn't always ideal, especially at a quieter levels. By pressing the Attenuator Function button on the front panel, you can make smoother, more subtle volume adjustments across the entire range.
Main Features
-
Output Power per Channel 90W
-
Impedance at Output Level • 4 Ω - 16 Ω (A / B)
• 8 Ω - 32 Ω (A + B)
• 4 Ω - 16 Ω (Bi-wiring) -
Number of Channels 2
-
Input Connections • SACD/CD
• Phono (MM/MC)
• Aux
• Network
• Digital Coaxial Input
• Recorder
• Tuner
• Power Amp Direct In
• USB
• SR In
-
Output Connections • Recorder
• Phones
• SR Out -
Remote Control Multi-functional remote control
Input & Output connections
-
Digital Coaxial Input/Output Yes
-
Headphone Yes
-
Large speaker terminals Yes
-
Phono Input Yes
-
Pre-amp Output Yes
-
Speaker A/B Versatile speaker configuration
Audio Features
-
Bass/Treble Tone Controls Yes
Power Output
-
Power output per channel 90 W
-
Condition 20 Hz - 20 kHz, THD 0,5%, 4Ω
-
Rated Power Output 90 W per channel
-
Power Requirements AC 220 - 230 V / 50 Hz
-
Power Consumption (in use / standby) 74 W / 0.2 W
-
Auto Power Down Yes
Construction
-
Design • Separated Construction for Preamp and Power Amp
• Twin Block Shield Transformer
• Source Direct Mode
• DAC Mode
• Clean Ground Construction
• Isolated Power Supply
• Trans-Stabiliser
• Rigid Under Base
• Solid aluminium volume knob and front/ side panels
• Gold-plated Speaker Terminals (large type)
• Gold-Plated Analogue Audio Terminals
• High-Grade AC Power Cord
Amplifier Specifications
-
Amplifier MOSFET Class D Amplifier
-
D/A Converter • ESS SABRE32 192 kHz/32-bit Audio DAC
• Asynchronous 192 kHz/32-bit USB DAC -
Dimensions (W x H x D) 435 x 141.5 x 361.5 mm
-
Weight 17.1 kg
