BS 263 Raf Tipi Hoparlör
ELAC BS 263 Raf Tipi Hoparlör
No small achievement.

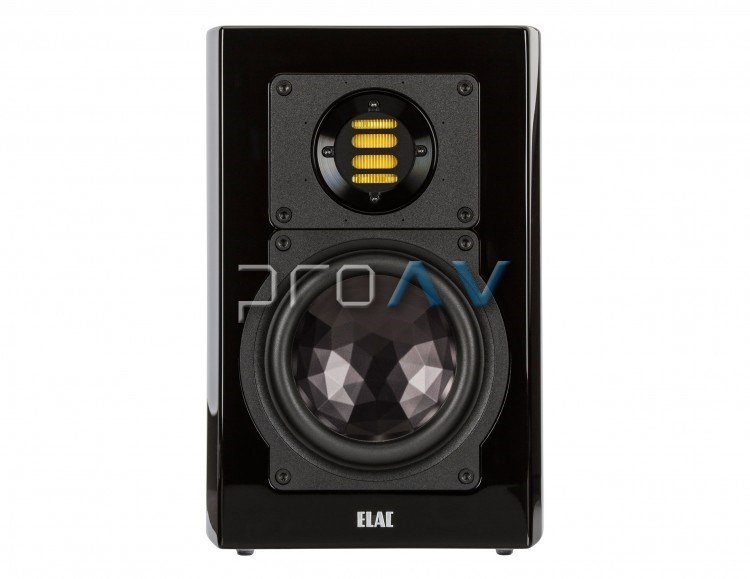

Do not be deceived by the compact dimensions of the BS 263. Focus instead on its exceptionally grown-up sound! The fact that the cabinet of this 2-way, bass-reflex design is enlarged progressively towards the front baffle ensures that even low bass frequencies are effortlessly reproduced.
Specifications
Speaker type: 2-way, bass reflex
Tweeter: 1 x JET 5
Woofer: 1 x 150 mm AS -XR cone
Crossover frequency: 2,500 Hz
Frequency response: 41 to 50,000 Hz
Sensitivity: 87 dB at 2.83 v/1m
Recommended amplifier power: 30 to 150 wpc
Nominal/peak power handling: 60 / 80 wpc
Nominal impedance: 4 Ω; minimum 3.7 Ω @ 230 Hz
Binding posts: 5-way metal
Magnetic shielding: No

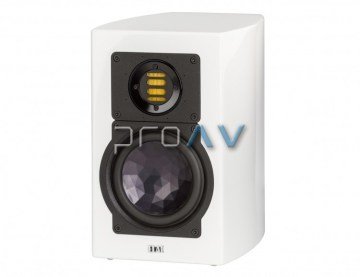

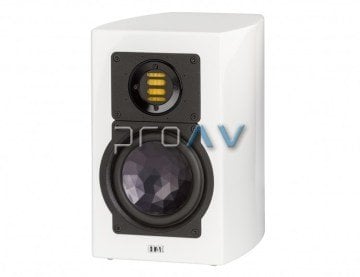

Cabinet finish: High gloss black or white
Accessories included: Magnetic fabric grille; rubber feet; polishing cloth (black finish only)
Height: 11.2 in / 285 mm
Width: 7.7 in / 195 mm
Depth: 11.2 in / 285 mm
Net weight (each): 14.6 lb / 6.6 kg
