BS 302 Raf Tipi Hoparlör
ELAC BS 302 Raf Tipi Hoparlör
The perfect complement to the silver screen.

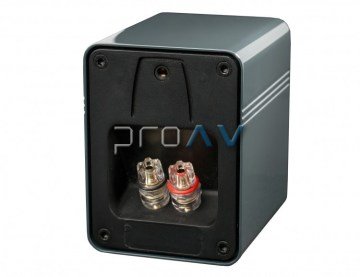

Offering unmistakable style and sound, the 2-way BS 302 replaces the BS 301.2 with a few new tricks up its sleeve. While a revised magnet system and modified crossover benefit the sound, the rear of the cabinet can accommodate an optional and practical wall bracket. Thanks to its diminutive size, the BS 302 can easily be integrated into any living space—delivering expansive sound and unique tonal reproduction.
Specifications
Speaker type: 2-way, closed box, high-pass integrated
Tweeter: 1 x 20 mm cloth dome
Woofer: 1 x 78 x 108 mm AS oval cone
Crossover frequency: 80/2,390 Hz
Frequency response: 80 to 35,000 Hz
Sensitivity: 86 dB at 2.83 v/1m
Recommended amplifier power: 20 to 120 wpc
Nominal/peak power handling: 60 / 75 wpc
Nominal impedance: 4 Ω; minimum 3.5 Ω @ 1,200 Hz

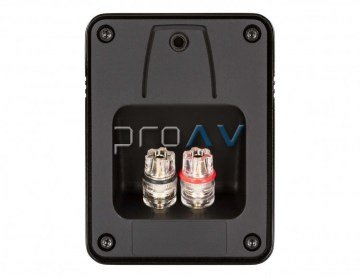

Binding posts: 5-way metal
Magnetic shielding: Yes
Cabinet finishes: High gloss black, gray or white
Accessories included: Metal grille
Height: 4.8 in / 121 mm
Width: 3.6 in / 91 mm
Depth: 4.4 in / 111 mm
Net weight (each): 2.9 lb / 1.3 kg
