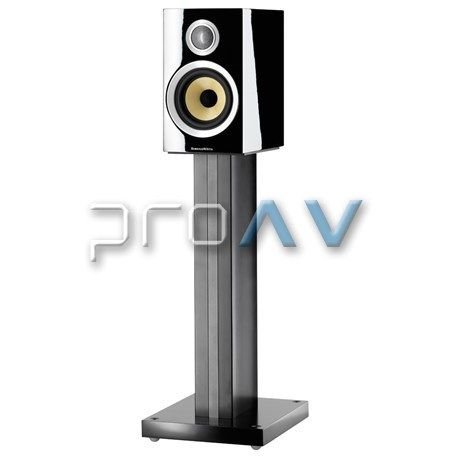

CM 1 S2
Small is beautiful, and sounds beautiful with CM1 S2. The smallest speaker in the CM Series combines precise audio with modern design and enough power to fill most rooms.
The CM1 S2 was the original CM Series speaker, launched in
2006. Now the new CM1 S2 features vastly improved internal components and a
Decoupled Double Dome tweeter for stunningly precise and amazingly powerful
audio for its size.
The Decoupled Double Dome Tweeter uses an aluminium dome and ring combined for
lightness and rigidity, preventing distortion. A ring of gel cushioning
decouples the tweeter from the cabinet for improved imaging and dispersion and
a more natural, spacious treble.
As well as the new tweeter, every key component inside the CM1 S2 cabinet is
improved. Like the rest of the CM Series, it uses new, improved crossovers,
internal wiring and input terminals. The results sound stunning for such a
small speaker. And it's beautiful: choose from Satin White, Gloss Black or
Rosenut real-wood veneer.
|
Woven Kevlar |
|
|
Flowport |
|
|
Technical features |
Nautilus tube loaded Decoupled Double Dome aluminium
tweeter |
|
Description |
2-way vented-box system |
|
Drive units |
1x ø25mm (1 in) Decoupled Double Dome aluminium
high-frequency |
|
Frequency range |
-6dB at 45Hz and 50kHz |
|
Frequency response |
50Hz - 28kHz ±3dB |
|
Dispersion |
Within 2dB of reference response |
|
Sensitivity |
84dB spl (2.83V, 1m) |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) |
|
Nominal impedance |
8Ω (minimum 4.0Ω) |
|
Crossover frequencies |
4kHz |
|
Recommended amplifier power |
30W - 100W into 8Ω on unclipped programme |
|
Max. recommended cable impedance |
0,1 Ω |
|
Dimensions |
Height: 280mm (11 in) |
|
Net weight |
6.7kg (14.7 lb) |
|
Finishes |
|
|
Cabinet: |
Rosenut |
|
Grille: |
Black |
