CM 6 S2

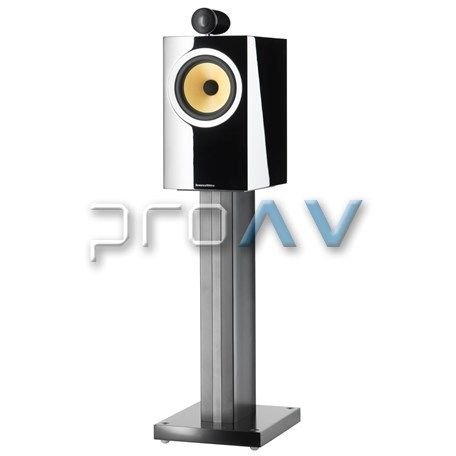

Power without bulk - CM5 S2 will fill rooms, without taking up floor space, used as a bookshelf or standmount speaker.
As well as now featuring a Decoupled Double Dome Tweeter,
CM5 S2 features a 165mm Kevlar® cone bass/midrange driver with Anti-Resonance
Plug dustcap. The result is power, with precision, from a small shelf or
standmounted speaker.
Every key component in the CM5 S2 has been improved, like the rest of the CM
Series, in the pursuit of audio performance. Updated internal wiring, a Mundorf
capacitor in the crossover and a nickel-plated terminal tray all help the new
CM5 S2 deliver precise, powerful audio.
No detail has been left untouched. Even the CM Series stand has been
redesigned. The new FS-CM S2 now features integrated cable management and is
designed to be sand-filled for improved damping. The result, again, is better
sound.
|
Woven Kevlar |
|
|
Flowport |
|
|
Technical features |
Nautilus tube loaded Decoupled Double Dome aluminium tweeter Kevlar® brand fibre cone bass / midrange Flowport™ |
|
Description |
2-way vented-box system |
|
Drive units |
1x ø25mm (1 in) Decoupled Double Dome aluminium high-frequency 1x ø165mm (6.5 in) woven Kevlar® cone bass / midrange |
|
Frequency range |
-6dB at 45Hz and 50kHz |
|
Frequency response |
50Hz - 28kHz ±3dB |
|
Dispersion |
Within 2dB of reference response Horizontal: over 60º arc Vertical: over 10º arc |
|
Sensitivity |
88dB spl (2.83V, 1m) |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) <1% 100Hz - 22kHz <0.5% 150Hz - 20kHz |
|
Nominal impedance |
8Ω (minimum 3.7Ω) |
|
Crossover frequencies |
4kHz |
|
Recommended amplifier power |
30W - 120W into 8Ω on unclipped programme |
|
Max. recommended cable impedance |
0,1 Ω |
|
Dimensions |
Height: 340mm (13.4 in) Width: 200mm (7.8 in) Depth: 285mm (11.2 in) cabinet only 301mm (11.9 in) including grille and terminals |
|
Net weight |
8.9kg (19.6 lb)) |
|
Finishes |
|
|
Cabinet: |
Rosenut |
|
Grille: |
Black |
