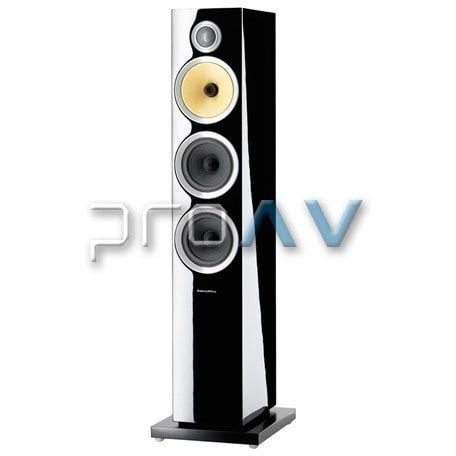

CM 8 S2 Kule Hoparlör
True floorstander performance from a seriously slim speaker. CM8 S2 will slip into any room, yet delivers power and precision from three Kevlar drivers and a Decoupled Double Dome tweeter.
With a cabinet just 165mm wide, CM8 S2 will fit in any room.
And thanks to concealed fixings and a minimalist, magnetic and protective
tweeter grille, CM8 S2 combines subtle stylish looks with modern, practical
design.
Key to its slim profile is the use of two 130mm Kevlar bass drive units
combined with a 130mm Kevlar FST midrange. The FST driver uses
"surroundless" suspension to improve crossover with the tweeter, give
a faster response and improve accuracy through the midrange.
Of course, CM8 S2 isn't designed solely to deliver power in a smaller form
factor. With an FST midrange and Decoupled Double Dome Tweeter for increased
rigidity and isolation from the cabinet, CM8 S2 is also designed for precise
audio response.
|
Woven Kevlar |
|
|
Flowport |
|
|
Technical features |
Nautilus tube loaded Decoupled Double Dome aluminium
tweeter |
|
Description |
3-way vented-box system |
|
Drive units |
1x ø25mm (1 in) Decoupled Double Dome aluminium
high-frequency |
|
Frequency range |
-6dB at 43Hz and 50kHz |
|
Frequency response |
48Hz - 28kHz ±3dB |
|
Dispersion |
Within 2dB of reference response |
|
Sensitivity |
88dB spl (2.83V, 1m) |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) |
|
Nominal impedance |
8Ω (minimum 3.1Ω) |
|
Crossover frequencies |
350Hz, 4kHz |
|
Recommended amplifier power |
30W - 150W into 8Ω on unclipped programme |
|
Max. recommended cable impedance |
0,1 Ω |
|
Dimensions |
Height: 924mm (36.4 in) cabinet only |
|
Net weight |
19.5kg (43 lb) |
|
Finishes |
|
|
Cabinet: |
Rosenut |
|
Grille: |
Black |
