CONCERT C 10 CEN
C 10 CEN
1-inch (25 mm) silk dome decoupled tweeter with Anti-Diffraction WaveGuide and Tweeter Distortion Reduction
Two 6-inch (152 mm) Hybrid Composition Conical Cone woofers with Long Displacement Surround technology
Anti-Diffraction Waveguide (ADW): Provides improved off-axis response with more uniform high frequency extension.
Hybrid Composition Conical Cone (HCCC): Provides the stiffness and strength of aluminum or titanium, with the transient response and smoothness of wood fibre.
Tweeter Distortion Reduction (TDR): Provides lower distortion, greater high frequency extension and smoother high end.
Long Displacement Surround (LDS): Provides cleaner, tighter, deeper bass.
Aluminum centre-plug: Eliminates cone breakup for faster attack and increased vocal clarity. Additional voice-coil cooling reduces power compression.
Design
The aesthetic of Jamo's flagship Concert Series was envisioned by Kieron Dunk, world-renowned industrial designer. Concert Series' beautiful exteriors house high-performance drivers, acoustically tuned to provide open, transparent playback of movies and music. Warm, natural sound is delivered throughout the environment, enveloping the listener.
High-quality cabinetry, designer finishes and advanced technologies combine to create gorgeous furniture whose exceptional acoustics are surpassed only by their beauty. Hand-polished high gloss finishes, satin painted MDF baffles, polished chrome logo, satin aluminum trim rings, centre plugs and stabilizer feet make the C 10 series aesthetically elegant, while providing exceptional acoustic performance.

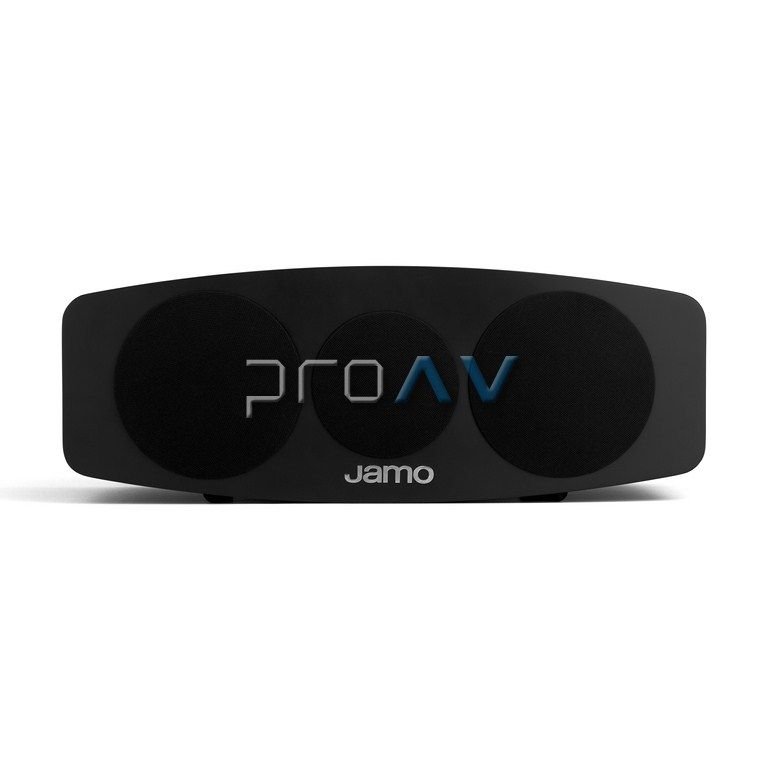

The C 10 CEN is a 2-way bass reflex center channel speaker using two 6-inch woofers and a 1-inch decoupled tweeter to deliver remarkably accurate sound. The C 10 CEN is available in High Gloss Black, High Gloss White and Walnut Veneer finishes with satin-painted MDF baffles for a premium, contemporary appearance.
System Type 2-Way Bass Reflex
Impedance 6 Ohm
Weight (Kg/lb) 11.8 / 26
Tweeter (mm/in) 25 / 1
Woofer (mm/in) Two: 152.4 / 6
Product dimensions (mm/in, HxWxD) 222 x 600 x 249.5 / 8.7 x 23.6 x 9.8
Frequency Response (Hz, +/-3dB) 49Hz - 27kHz
Power Handling (Watts Long/Short Term) 160 / 320
Sensitivity (dB, 2.8V/1m) 88dB
Finish High Gloss Black, High Gloss White, Real Walnut Veneer
Minimum Amp Recommended 50W
