CONCERT C 10 SURROUND (ÇİFT)

Technology

Two 1-inch (25 mm) silk dome decoupled tweeters with Anti-Diffraction WaveGuide and Tweeter Distortion Reduction

Two 6-inch (152 mm) Hybrid Composition Conical Cone woofers with Long Displacement Surround technology.

Anti-Diffraction Waveguide (ADW): Provides improved off-axis response with more uniform high frequency extension.

Hybrid Composition Conical Cone (HCCC): Provides the stiffness and strength of aluminum or titanium, with the transient response and smoothness of wood fibre.

Tweeter Distortion Reduction (TDR): Provides lower distortion, greater high frequency extension and smoother high end.

Long Displacement Surround (LDS): Provides cleaner, tighter, deeper bass.

Neutral Phase Surround Technology (NPST): Maximum detail with minimum phase distortion with front speakers. Can also be used as Left/Right surrounds and Rear Left/Right surrounds interchangeably. Patent Pending.

Aluminum centre-plug: Eliminates cone breakup for faster attack and increased vocal clarity. Additional voice-coil cooling reduces power compression.

Dual, 5-way binding posts: Allows bi-wiring/bi-amplification with multiple connection options with wire up to 12 gauge (AWG).

Design

The aesthetic of Jamo's flagship Concert Series was envisioned by Kieron Dunk, world-renowned industrial designer. Concert Series' beautiful exteriors house high-performance drivers, acoustically tuned to provide open, transparent playback of movies and music. Warm, natural sound is delivered throughout the environment, enveloping the listener.

High-quality cabinetry, designer finishes and advanced technologies combine to create gorgeous furniture whose exceptional acoustics are surpassed only by their beauty. Hand-polished high gloss finishes, satin painted MDF baffles, polished chrome logo, satin aluminum trim rings, centre plugs and stabilizer feet make the C 10 series aesthetically elegant, while providing exceptional acoustic performance.

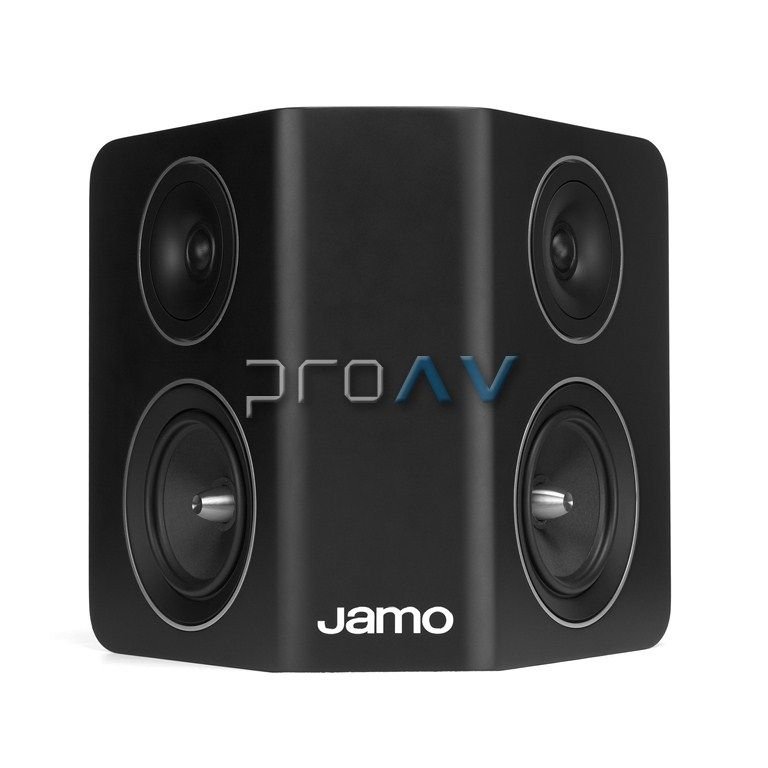

The C 10 SUR is a 2-way sealed surround speaker using two 6-inch woofers and two 1-inch decoupled tweeters to deliver remarkably accurate sound. The C 10 SUR is available in High Gloss Black finish with satin-painted MDF baffles for a premium, contemporary appearance.

System Type 2-Way Sealed NPST

Impedance 6 Ohm

Weight (Kg/lb) 9.5 / 21

Tweeter (mm/in) Two: 25 / 1

Woofer (mm/in) Two: 152.4 / 6

Product dimensions (mm/in, HxWxD) 350 x 400 x 200 / 13.8 x 15.7 x 7.9

Frequency Response (Hz, +/-3dB) 65Hz - 27kHz

Power Handling (Watts Long/Short Term) 160 / 320

Sensitivity (dB, 2.8V/1m) 87dB

Finish Black

Minimum Amp Recommended NA
