CONCERT C 109 Kule Hoparlör

JAMO C 109

Technology

One 1-inch (25 mm) silk dome decoupled tweeters with Anti-Diffraction WaveGuide and Tweeter Distortion Reduction

7-inch (178 mm) Hybrid Composition Conical Cone midrange driver with Long Displacement Surround technology

Two 7-inch (178 mm) Hybrid Composition Conical Cone woofers with Long Displacement Surround technology.

Anti-Diffraction Waveguide (ADW): Provides improved off-axis response with more uniform high frequency extension.

Hybrid Composition Conical Cone (HCCC): Provides the stiffness and strength of aluminum or titanium, with the transient response and smoothness of wood fibre.

Tweeter Distortion Reduction (TDR): Provides lower distortion, greater high frequency extension and smoother high end.

Long Displacement Surround (LDS): Provides cleaner, tighter, deeper bass.

Aluminum centre-plug: Eliminates cone breakup for faster attack and increased vocal clarity. Additional voice-coil cooling reduces power compression.

Dual, 5-way binding posts: Allows bi-wiring/bi-amplification with multiple connection options with wire up to 12 gauge (AWG).

Design

The aesthetic of Jamo's flagship Concert Series was envisioned by Kieron Dunk, world-renowned industrial designer. Concert Series' beautiful exteriors house high-performance drivers, acoustically tuned to provide open, transparent playback of movies and music. Warm, natural sound is delivered throughout the environment, enveloping the listener.

High-quality cabinetry, designer finishes and advanced technologies combine to create gorgeous furniture whose exceptional acoustics are surpassed only by their beauty. Hand-polished high gloss finishes, satin painted MDF baffles, polished chrome logo, satin aluminum trim rings, centre plugs and stabilizer feet make the C 10 series aesthetically elegant, while providing exceptional acoustic performance.

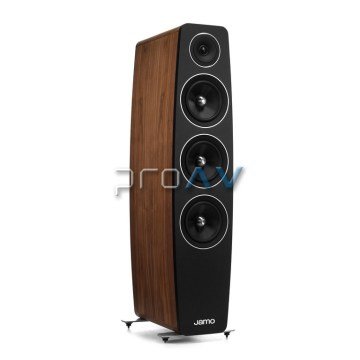

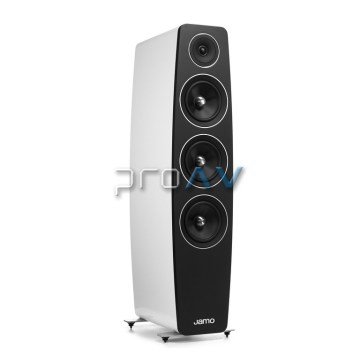

The C 109 is a feature-packed, 3-way bass reflex floorstanding speaker using two 7-inch woofers, a 7-inch midrange driver and a 1-inch decoupled tweeter to deliver remarkably accurate sound. The C 109 is available in High Gloss Black, High Gloss White and Walnut Veneer finishes with satin-painted MDF baffles for a premium, contemporary appearance.

System Type 3-Way Bass Reflex

Impedance 6 Ohm

Weight (Kg/lb) 36.3 / 80

Tweeter (mm/in) 25 / 1

Woofer (mm/in) Two: 177.8 / 7

Product dimensions (mm/in, HxWxD) 1132 x 234.5 x 417 / 44.6 x 9.2 x 16.4

Frequency Response (Hz, +/-3dB) 30Hz - 27kHz

Power Handling (Watts Long/Short Term) 200W / 400W

Sensitivity (dB, 2.8V/1m) 89dB

Midrange (mm/in) 177.8 / 7

Finish High Gloss Black, High Gloss White, Real Walnut Veneer

Minimum Amp Recommended 75W
