CONCERT C 93

Technology

1-inch (25 mm) silk dome decoupled tweeter with Anti-Diffraction WaveGuide and Tweeter Distortion Reduction

6-inch (152 mm) Hybrid Composition Conical Cone woofer with Long Displacement Surround technology.

Anti-Diffraction Waveguide (ADW): Provides improved off-axis response with more uniform high frequency extension.

Hybrid Composition Conical Cone (HCCC): Provides the stiffness and strength of aluminum or titanium, with the transient response and smoothness of wood fibre.

Tweeter Distortion Reduction (TDR): Provides lower distortion, greater high frequency extension and smoother high end.

Long Displacement Surround (LDS): Provides cleaner, tighter, deeper bass.

Aluminum centre-plug: Eliminates cone breakup for faster attack and increased vocal clarity. Additional voice-coil cooling reduces power compression.

Design

The aesthetic of Jamo's flagship Concert Series was envisioned by Kieron Dunk, world-renowned industrial designer. Concert Series' beautiful exteriors house high-performance drivers, acoustically tuned to provide open, transparent playback of movies and music. Warm, natural sound is delivered throughout the environment, enveloping the listener.

High-quality cabinetry, designer finishes and advanced technologies combine to create gorgeous furniture whose exceptional acoustics are surpassed only by their beauty. High quality finishes, satin painted MDF baffles, polished chrome logo, satin aluminum trim rings, centre plugs and stabilizer feet make the C 9 series aesthetically elegant, while providing exceptional acoustic performance

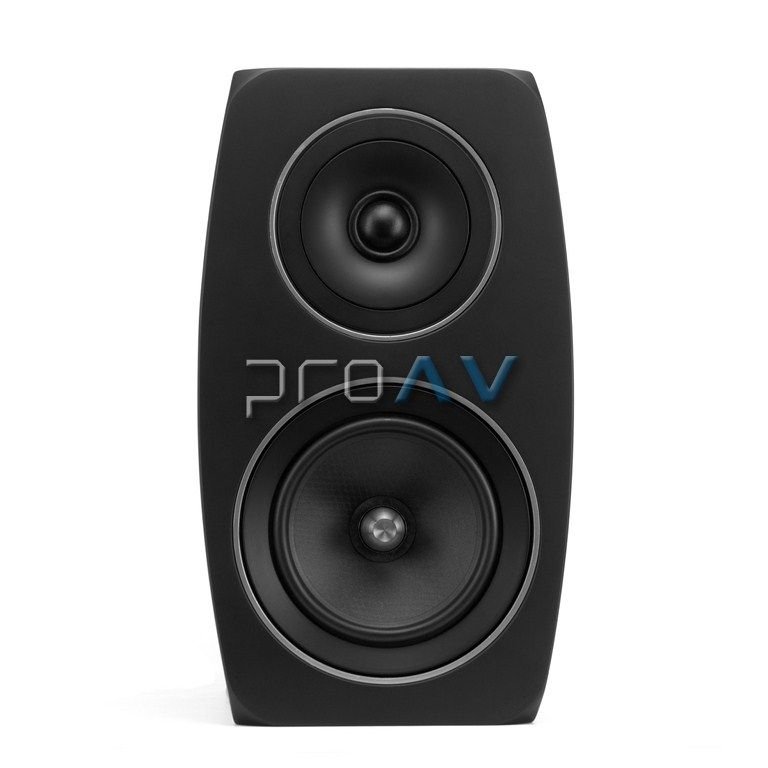

The C 93 is a 2-way bass reflex bookshelf speaker using a 6-inch woofer and a 1-inch decoupled tweeter to deliver remarkably accurate sound. The C 93 is available in Satin Black, Satin White and Dark Apple finishes with satin-painted MDF baffles for a premium, contemporary appearance.

System Type 2-Way Bass Reflex

Impedance 6 Ohm

Weight (Kg/lb) 6.4 / 14

Tweeter (mm/in) 25 / 1

Woofer (mm/in) 152.4 / 6

Product dimensions (mm/in, HxWxD) 350 x 200 x 259 / 13.8 x 7.9 x 10.2

Frequency Response (Hz, +/-3dB) 45Hz - 24kHz

Power Handling (Watts Long/Short Term) 120 / 240

Sensitivity (dB, 2.8V/1m) 88dB

Finish Satin Black, Satin White, Dark Apple

Minimum Amp Recommended 50W
