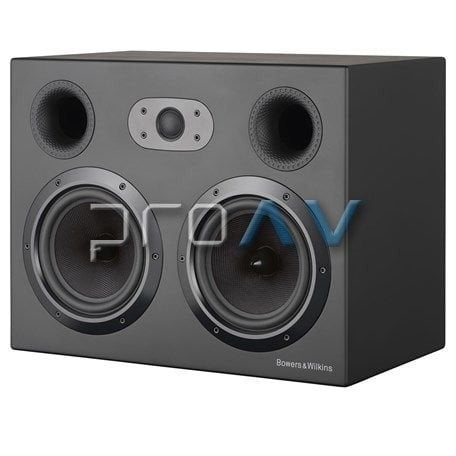

CT 7.4 LCRS
The mid-point speaker in the CT700 range offers superior performance at lower frequencies through its two 6" Kevlar® bass/midrange drivers.
The mid-point speaker in the CT700 range offers superior
performance at lower frequencies through its two 6" Kevlar® bass/midrange
drivers.
Designed to slot discreetly into custom-built cabinetry, every speaker in the
CT700 range can take on either front, centre or surround duties within a
multi-channel theatre set-up. Each speaker used Kevlar drive units, and
features B&W’s famous Nautilus tube-loaded tweeters – a pioneering
technology that draws away and dampens distorting sound waves from the rear of
the drive units, thereby producing a much purer sound from the front.
Technical features |
Nautilus™ tube loaded tweeter |
Description |
2-way vented-box system |
Drive units |
1x ø25mm (1 in) cloth dome high-frequency |
Frequency range |
-6dB at 43Hz and 28kHz |
Frequency response |
49Hz – 22kHz ±3dB on reference axis |
Dispersion |
Within 2dB of reference response |
Sensitivity |
94dB spl (2.83V, 1m) |
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) |
Nominal impedance |
8 ohm (minimum 4.0 ohm) |
Crossover frequency |
4kHz |
Recommended amplifier power |
50W – 150W into 8 ohm on unclipped programme |
Max. recommended cable impedance |
0.1 ohm |
Dimensions |
Height: 343mm (13.5 in) |
Net weight |
11.5kg (25.4lb) |
Finishes |
Cabinet Black painted |
