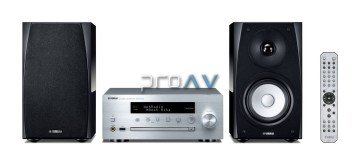

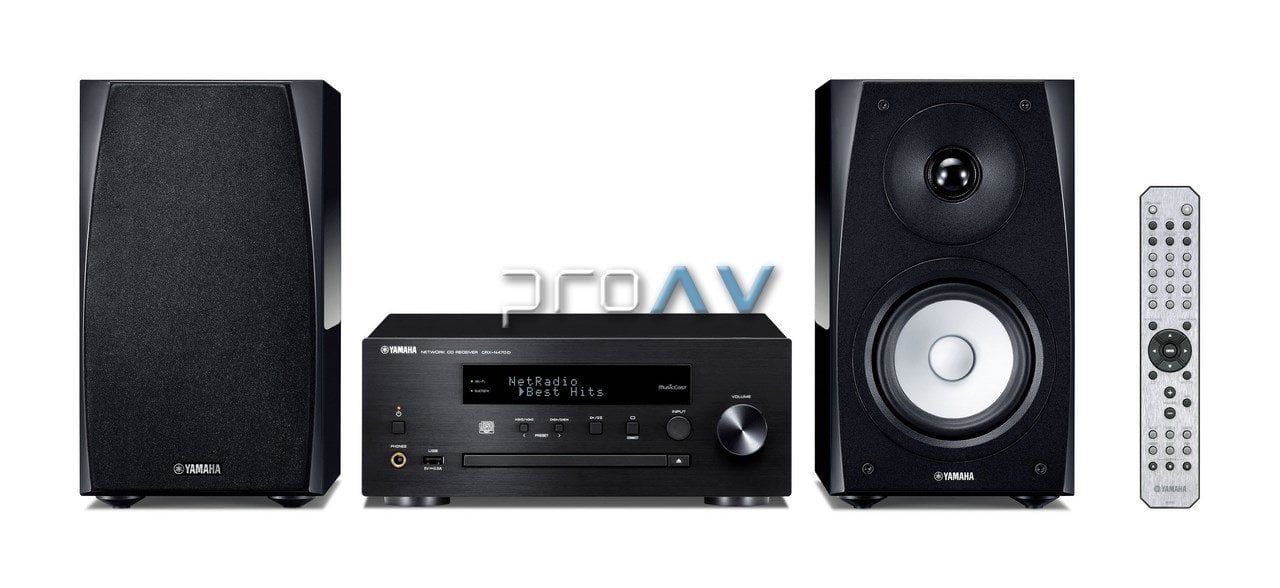

MCR-N570D Kompakt Sistem
You’ll enjoy a wide range of sources and functions, from CD, USB and FM / DAB radio to the latest versions of Wi-Fi, MusicCast, AirPlay® and Bluetooth®.
- MusicCast for audio enjoyment in every room
- Support for internet radio and various music streaming services
- Aluminium front panel with hairline finish
- Heavy, thick, beautifully shaped speaker cabinet
- High performance speaker with VCCS (Vibration Control Cabinet Structure) technology
- 2-way speaker system with high quality white cone 12 cm (4-3/4") woofer
- Supports 192 kHz/24-bit High Resolution Music (Flac / WAV / AIFF)
- Bluetooth® for wireless music streaming
- Supports Bluetooth output for pairing MCR-N570D and other Bluetooth equipped products
- AirPlay® allows music streaming from Mac, PC, iPod®, iPhone®, iPad®
- Control app for easy operations (MusicCast CONTROLLER)
- Front USB terminal for playback of USB memory (mass storage class)
- Enjoy digital radio from DAB / DAB+ tuner
MusicCast
MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it’s completely up to you. Control it, all from one app, designed to be intuitive, quick and simple to use. Use a soundbar, a wireless speaker, an AV Receiver, Hi-Fi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on. All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.
Enjoy All Your Music Sources
MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. Audio content from Bluetooth-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms.
Sophisticated Appearance
The MCR-N570D maintains the design image of Yamaha Hi-Fi components, presenting an extremely high-class, sophisticated appearance. The centre unit has a front panel made of high-grade aluminium with a hairline finish that looks clean and elegant. The speakers have a luxury design with rounded corners and a beautiful, deep luster piano finish. Adding this stylish system to your audio room will increase your listening pleasure.
A Digital Amplifier that Fully Inherits the Yamaha Hi-Fi Concept
The MCR-N570D features Yamaha’s own high efficiency digital amplifier technology to provide lossless high fidelity digital audio playback whether from network audio, USB or CD. Its circuit design fully inherits the Yamaha Hi-Fi concept, with a minimised signal path and thorough elimination of mutual audio signal interference helping you enjoy high quality sound from a wide range of sources from music CDs to hi-resolution audio format .
VCCS Vibration Control Cabinet Structure Technology
To prevent unwanted cabinet vibration, Yamaha developed an internal structure called VCCS (Vibration Control Cabinet Structure) that uses strategically placed pieces of a composite material providing excellent vibration isolation performance. In addition, three legs provide additional shock absorption, considerably enhancing sound quality.
2-Way System with High Quality White Cone Woofer
The speaker units are a 12 cm (4-3/4") cone woofer and a 3 cm (1-1/8") soft dome tweeter. The woofer is an A-PMD (Advanced Polymer-injected Mica Diaphragm) unit created by downsizing and performing specialised tuning of a woofer used in Yamaha’s high-end speakers of "Soavo” line. It is a high specification speaker using the white cone, the symbol of Yamaha high sound quality.
Easily Select the Music Source You Want to Hear
The MusicCast App makes it easy to select and play songs from CDs and USB devices, as well as to select radio stations (FM and DAB). In addition, by using the MusicCast Link function, you can send those sources to other MusicCast compatible devices for enjoying them in other rooms.
Stream via Bluetooth® or AirPlay®
You can hear all the music sources from your smartphone via wireless Bluetooth or AirPlay connection. You can play music from music apps, radio apps, or YouTube™-type video hosting services.
Bluetooth Output for Convenient Music Streaming
The MCR-N570D is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the MCR-N570D to Bluetooth headphones for private listening or to Bluetooth speakers.
|
|
||
|---|---|---|
| Specifications |
||
| Center Unit | Bluetooth Version/Profile | Ver. 2.1 + EDR / A2DP, AVRCP ; [Audio Codec] SBC, AAC |
| Bluetooth Maximum Communication Range | 10 m / 32.8 ft. 10 in. (without interference) | |
| Disc Type | CD, CD-R, CD-RW (Audio CD, MP3, WMA) | |
| USB | Yes | |
| Internet Radio | vTuner | |
| Wi-Fi | Yes | |
| AirPlay | Yes | |
| DLNA | Yes | |
| File Format | MP3, WMA, MPEG4, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) --- (*1) 192 kHz / 24-bit; (*2) 96 kHz / 24-bit | |
| Ethernet | Yes | |
| Tuner | DAB, DAB+, FM | |
| Preset Memory | DAB x 30, FM x 30 | |
| Headphone Jack | Yes | |
| Analog Audio Input | RCA × 1, 3.5mm STEREO mini Jack × 1 | |
| Total Harmonic Distortion(CD to Sp Out, 20 Hz-20 kHz) | 0.05% | |
| Output Power/Channel (6 ohms, 1 kHz, 10% THD) | 22 W + 22 W | |
| Standby Power Consumption | 0.5 W (Network standby off / Bluetooth standby off), 1.9 W (Network standby on / Bluetooth standby on, Wi-Fi connection) | |
| Dimensions (W x H x D) | 270 x 110 x 330 mm; 10-5/8” x 4-3/8” x 13” | |
| Weight | 3.0 kg; 6.6 lbs. | |
| Speaker System | Woofer | 12 cm (4-3/4") cone woofer |
| Tweeter | 3 cm (1-1/8") dome tweeter | |
| Input Power (Max/Nominal) | 40 W / 110 W | |
| Frequency Response | 60 Hz-40 kHz | |
| Sensitivity | 83 dB / 2.83 V / 1 m | |
| Crossover Frequency | 5 kHz | |
| Impedance | 6 ohms | |
| Dimensions (W x H x D) | 154 x 273 x 230 mm; 6” x 10-6/8” x 9” | |
| Weight | 3.3 kg; 7.2 lbs. | |
