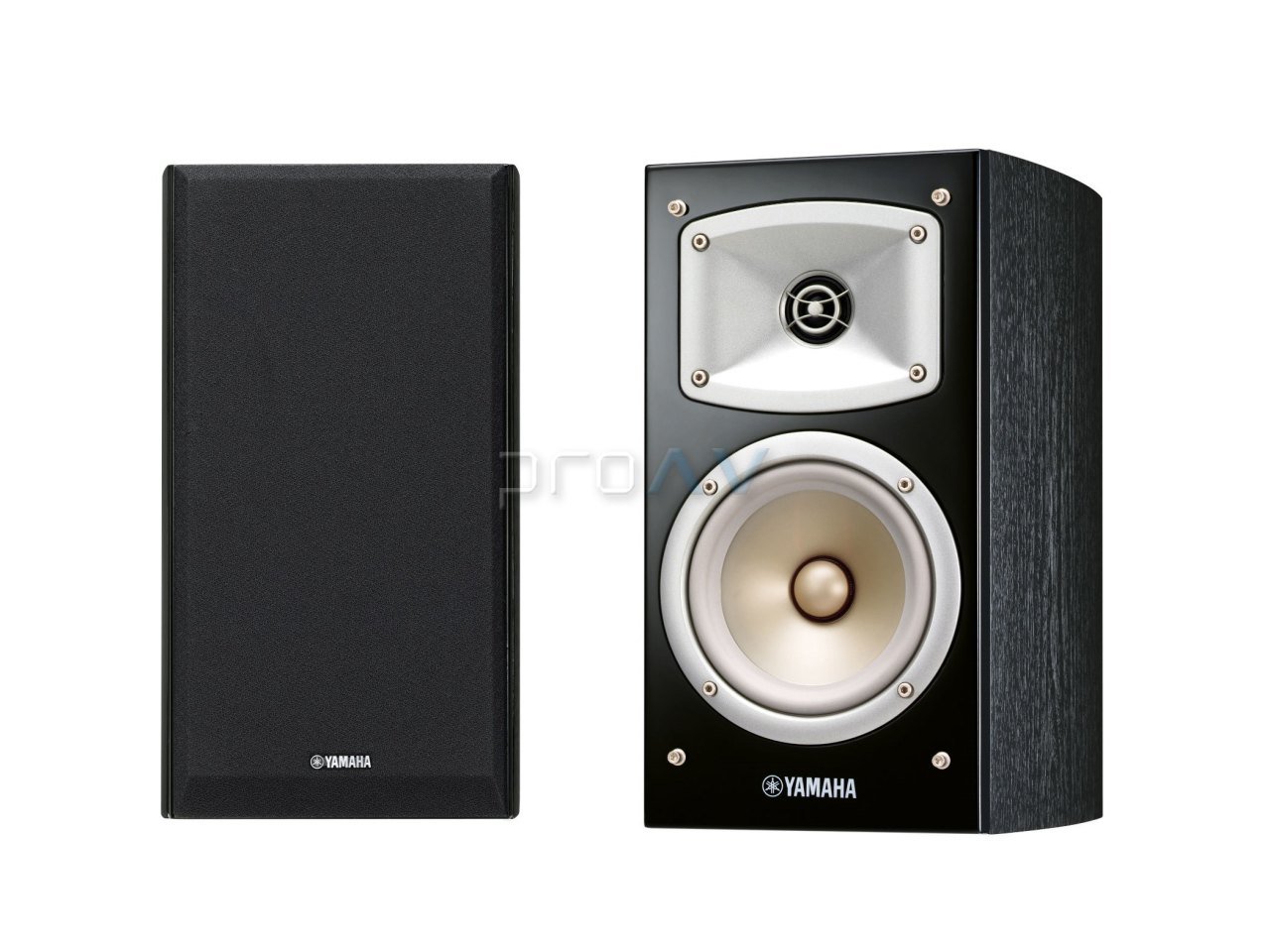

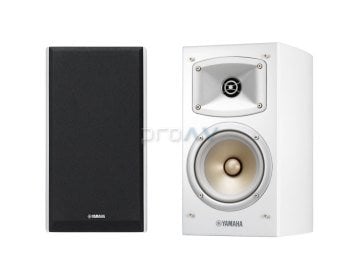

NS-B330 Raf Tipi Hoparlör
High frequency reproduction that is truly outstanding. A 45 kHz (–10 dB) HiFi small bookshelf speaker. Bright, dense and wide range, it makes music listening a comfortable experience.
- All-new 3 cm (1”) aluminium dome tweeter capable of 45kHz (–10 dB) reproduction is compatible with high resolution sound sources
- Unique waveguide horn controls the directivity of the tweeter
- Supple and strong. 13 cm (5”) woofer with a PMD cone that finely hones the low tones’ expressive power
- Rounded shape suppresses standing waves, and its double structure finish strengthens the front baffle
- Front baffle features a black or white mirror-like piano finish
- Beautiful black side panels with elegant round shape
- Wall mountable
Full Spec Entry Class Model. A Small HiFi Bookshelf Unit that Makes Listening to Music a Pleasure
In this era of high spec sources, we are looking toward the future of small bookshelf speakers, not only providing good value for price. It utilises an all-new high resolution compatible dome tweeter that makes it completely different from ordinary speakers that claim high resolution compatibility: 40kHz. The focus is on tuning that brings out the reality of vocals, where listeners notice differences in quality the most, and on delivering expansive high and low tones without colouration.
Expansive, Glistening Sound. A New 3 cm (1”) Aluminium Dome Tweeter that Reproduces 45 kHz (–10 dB) High Frequencies
Tweeter Features a Unique Waveguide Horn for Directivity Control
The unique waveguide horn and tweeter utilise the same waveguide technology used for directivity control in studio monitor speakers to control the incidence of indirect sound. The Vertical and horizontal directivity control increases the sense of sound field, providing vivid stereo reproduction.
Supple and strong. 13 cm (5”) Woofer Utilises a PMD cone with a Proven Track Record in Europe and Japan
Incorporating 30% high quality white mica, the 13 cm (5”) woofer utilises a lightweight, high rigidity PMD (Polymer-injected Mica Diaphragm) cone that achieves ideal internal loss and high elasticity characteristics. The new design put both the voice coil and spider under the knife, achieving massive, expansive low tones. As the future of HiFi small bookshelf speakers, its supple and strong bass redefines musical expressiveness.
Rounded Front Baffle with Double Structure
The cabinet features a rounded shape that curves smoothly to both sides. By reducing the number of parallel surfaces it minimises standing waves and unwanted resonance. The front baffle has a double structure with a mirror-like piano finish. With reinforced strength, it produces more natural, extremely transparent high tones.
|
|
||
|---|---|---|
| Specifications | ||
| Type | 2-way bass-reflex bookshelf speakers | |
| Woofers | 13cm (5”) cone | |
| Tweeter | 3cm (1”) aluminium dome | |
| Frequency Response | 55 Hz–45 kHz | |
| Nominal Input Power | 40 W | |
| Maximum Input Power | 120 W | |
| Sensitivity | 87 dB/2.83 V/1 m | |
| Crossover Frequencies | 2.8 kHz | |
| Impedance | 6 ohms | |
| Dimensions (W x H x D) | 183 x 320 x 267 mm; 7-1/4” x 12-5/8” x 10-1/2” | |
| Weight | 6.1 kg; 13.4 lbs./unit | |
