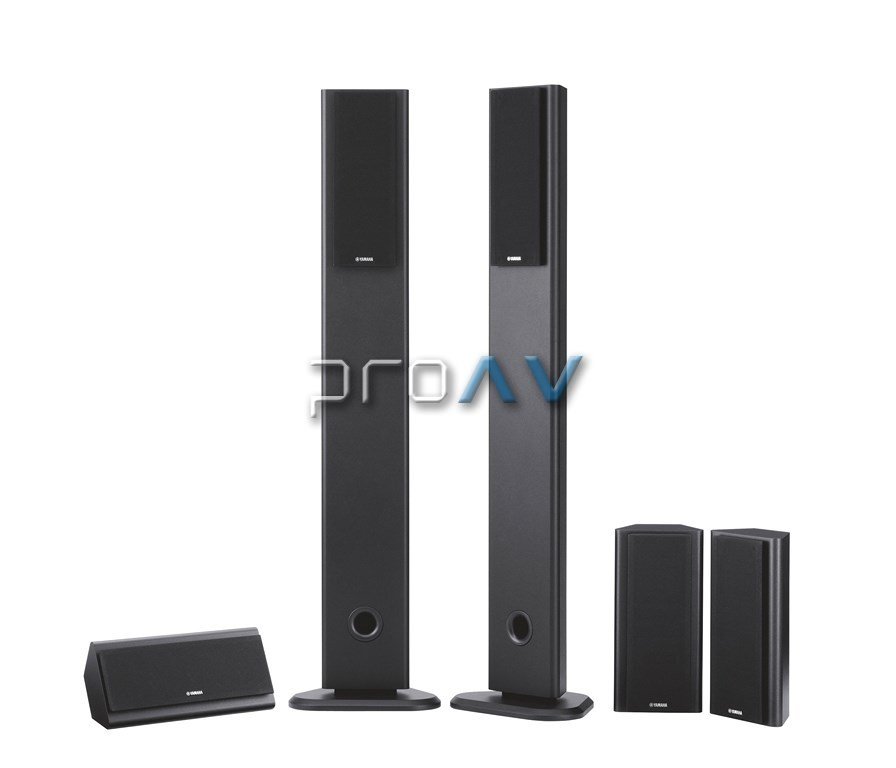

NS-PA120 5.0 Ev Sinema Hoparlör Paketi

This package of stylishly flat speakers is designed to nicely complement any flat-screen TV. Capable of sound quality good enough for enjoying HD sources, it also delivers generous bass output.

• Flat shape matches the look of flat-screen TVs.
• The NS-F120 has a space-saving stand that allows it to be neatly installed along a wall.
• The NS-B120 and NS-C120 can be placed on a shelf or rack or be mounted on a wall.
• High sound quality design capable of dynamic reproduction of HD sources.
• The NS-F120 uses a high volume, wood cabinet and round bass reflex port to deliver dynamic sound and strong bass.
• Two 6.5cm (2-1/2”) cone woofers and 2cm (3/4”) silk dome tweeter provide natural, well-balanced sound.
• NS-C120 centre speaker outputs clear dialogue and vocals aimed directly at the viewer.
• Large, threaded, gold-plated speaker jacks ensure best sound quality.

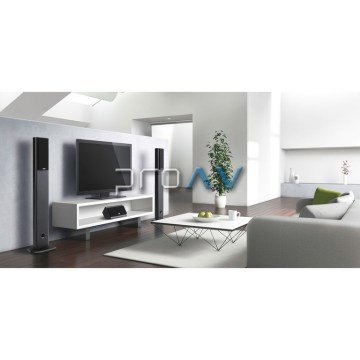

Stylish Design Matches Flat TVs

The NS-F120 has an elegantly flat shape, measuring only 9.6cm (3-3/4”) deep. This makes it a perfect match for flat-screen TVs. Place one on each side of the TV for a stylish system that looks great in any room.



Convenient Placement

The NS-F120 has a triangular stand with rounded corners that makes it easy to position the speaker, even along a wall where the available space is narrow. The stand is also convenient for placing the speaker in a corner of the room.

Wall Mounting (NS-B120, NS-C120)

These speakers will fit easily on a rack, bookshelf or other convenient location. Their thin design also makes them easy to mount on a wall.

Capable of Handling HD sources

High quality parts and design enable the NS-PA120 to deliver the full sound potential of high definition sources such as Blu-ray Disc. Even if you do not currently use these sources, you may in the future, so your speakers have to be able to clearly reproduce the extra clarity that they provide.

High Volume Wood Cabinet with Bass Reflex Port (NS-F120)



Even with its flat shape, the NS-F120 has a large volume cabinet for powerful sound output. Made of real wood, it features a bass reflex port for enhanced bass sound. The rounded shape allows the sound to disperse smoothly for natural, full-bodied bass.

High Quality Woofers and Tweeter

Each speaker has two 6.5cm (2-1/2”) cone woofers and a 2cm (3/4”) silk dome tweeter. Using high quality parts, these units provide clean, faithful sound reproduction that is never harsh and will not cause listener fatigue even after hours of listening.

Well-Designed Centre Speaker



The NS-C120 has an angled shape that allows it to be placed facing upward, for ideal dispersion of dialogue and vocal sounds to the viewer.

Large Speaker Terminals



Because these speakers are designed for high quality HD sources, the speaker terminals are also high quality. They are large, threaded and gold-plated, for maximum signal transmission quality.



Specifications

Package Speaker
Channel		5-channel
Speaker System	System Frequency Response	90 Hz –46 kHz
	Impedance	6 ohms
Front Speaker	Type	2-way bass-reflex (NS-F120)
	Driver	Dual 6.5cm (2-1/2”) cone woofers and 2cm (3/4”) silk dome tweeter
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	82 dB/2.83 V/1 m
	Dimensions (W x H x D)	259 x 1,043 x 205 mm (with stand); 10-1/4” x 41-1/8” x 8-1/8” (with stand)
	Weight	4.4 kg; 9.7 lbs./unit
Center Speaker	Type	2-way acoustic suspension (NS-C120)
	Driver	Dual 6.5cm (2-1/2”) cone woofers and 2cm (3/4”) silk dome tweeter
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	82 dB/2.83 V/1 m
	Dimensions (W x H x D)	305 x 133 x 125 mm; 12” x 5-1/4” x 4-7/8”
	Weight	1.8 kg; 4.0 lbs./unit
Surround Speaker	Type	2-way acoustic suspension (NS-B120)
	Driver	Dual 6.5cm (2-1/2”) cone woofers and 2cm (3/4”) silk dome tweeter
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	82 dB/2.83 V/1 m
	Dimensions (W x H x D)	150 x 305 x 99 mm; 5-7/8” x 12” x 3-7/8”
	Weight	1.8 kg; 4.0 lbs./unit
