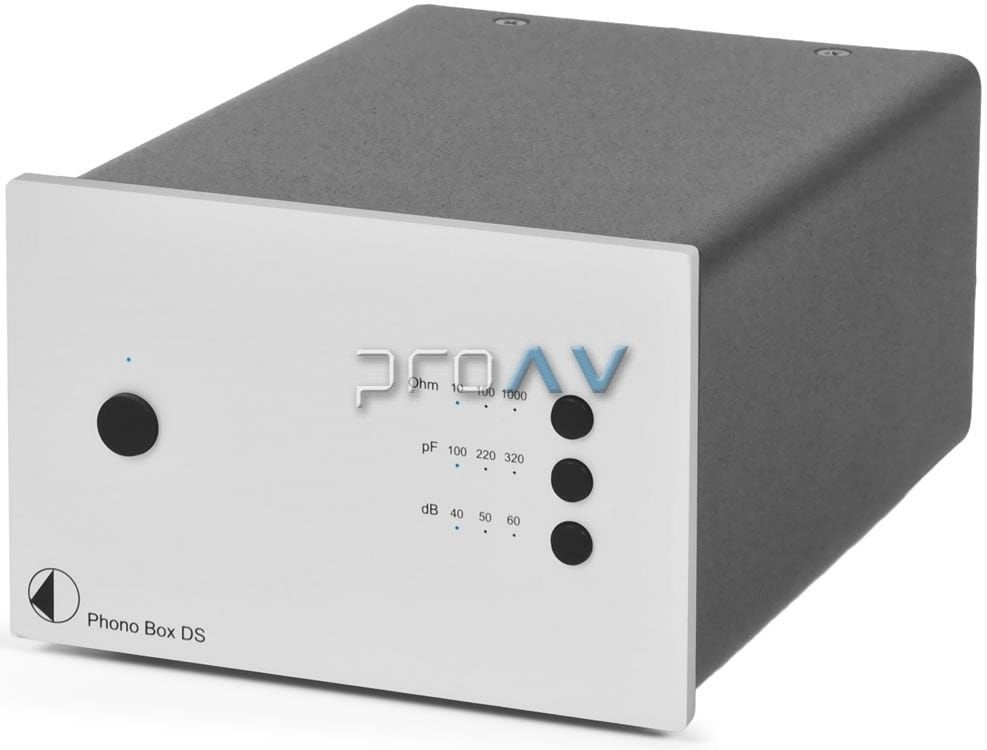

PHONO BOX DS

PHONE BOX DS

• MM & MC capable

• Linear RIAA equalisation

• Ultimate circuit technology from Dr. Sykora, slimplified

version of Phono Box DS+ without display & relais switching

• Ultra low noise & low distortion levels

• SMD circuitry

• Subsonic filter (switchable on rear panel)

• Substantial setup options

• Comfortable switching via buttons on front

• Metal casing protects against vibration and interference

• DC power supply (< 1 watt standby power)

• Faceplate silver or black

Premium class phono preamplifier with MM & MC capability

This ultra low noise phono preamplifier benefits from outstanding circuit technology from Dr. Sykora, well-known from Phono Box DS+, in a slimmed version with almost same sound quality, but without display and relais switching at a more favourable price. For the first time nearly all setup options can be made via front panel, what makes circumstantial handling of mini dip-switches or jumpers obsolete. Exceptional performance and flexibility with almost any MM or MC cartridge makes Phono Box DS the best choice in its price class. A subsonic filter, that prevents your amplifier and speakers of ultra low rumble below 20Hz, is positioned on the rear panel. Carefully selected amplifier modules and audiophile-grade capacitors guarantee a breathtaking sound experience. Therefore Phono Box DS is a perfect cost-effective upgrade for most high-quality hifi-systems!

Technical data

Pro-Ject Phono Box DS

Input impedance 10 / 100 / 1000ohms or 47kohms

Load capacity switchable 47pF 147pF, 267pF, 367pF

(only relevant for MM @ 47kohms)

Gain MM or high output MC: 40, 50 dB

low output MC: 60 dB

Signal to noise ratio 80dB (A weighted @ 40dB input gain)

THD < 0,02%

RIAA accuracy within 0,3dB/20Hz - 20kHz

Subsonic 20Hz / - 12dB

Input & Output RCA

Power supply 18V/500mA DC; 220 - 240V, 50Hz

Power consumption 100mA DC < 1 watt standby

dimensions W x H x D (D with sockets) 103 x 72 x 144 (156)mm

weight 1100g without power supply
