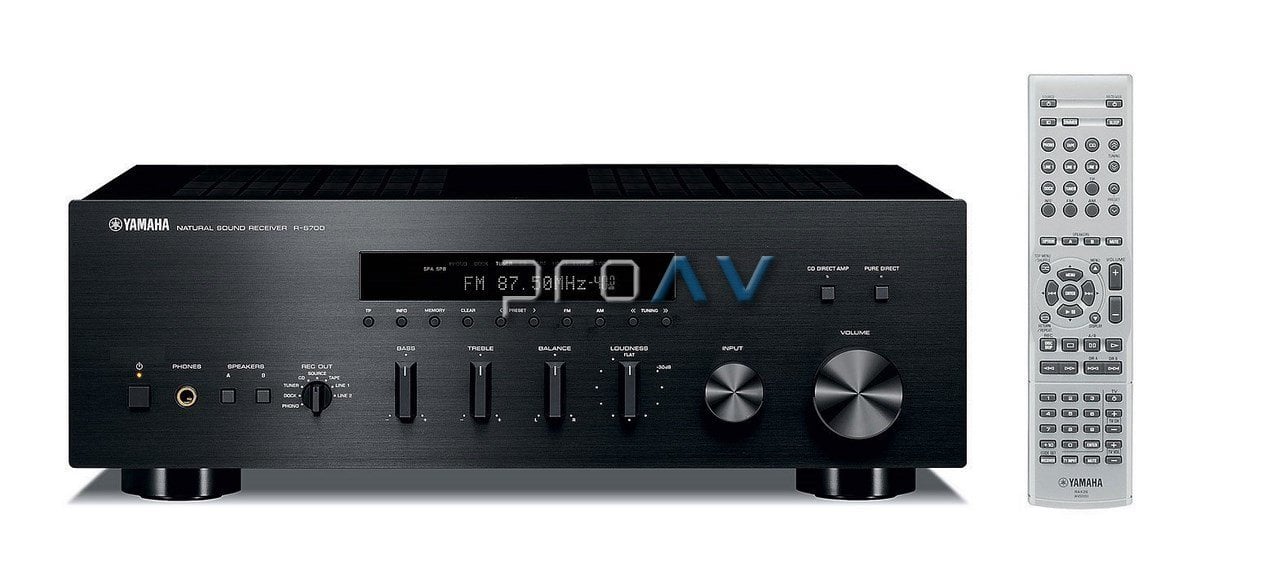

R-S700 Radyolu Stereo Receiver Amfi
Re-defining the elite receiver.
- 160W x 2 (max), 100W x 2 (RMS) high power output
- CD Direct Amplification
- Pure Direct for short and direct signal path
- iPhone/iPod/Bluetooth® compatibility
- iPod video out allows connection to a TV
- Gold-plated speaker terminals
- Dual aluminium-extruded heat sinks
- Continuous Variable Loudness Control
- Rec Out selector
- Subwoofer out
- Speaker A, B or A+B selection
- Terminal for detachable AC cable
The Look and Texture of Quality
Offers the look and feel of the top-class A-S2000, with elegant aluminium front panel and silky touch volume/selector knobs. You can feel Yamaha’s commitment to quality when you touch the knobs.
Pure Direct
Music signals travel the shortest possible route, bypassing the buffer amp and tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
Highest Quality Parts
The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.
New Speaker Terminals
These high grade speaker terminals have gold plating for best connection and outstanding durability. The pitch between jacks is wider for easier insertion.
Dual aluminium-extruded heat sinks
Dual aluminium-extruded heat sinks ensure effective heat dissipation and help achieve crisp, clean sound.
Continuously Variable Loudness Control
Our ears lose sensitivity to high and low frequencies at low volume levels. This control lets you turn down the volume while maintaining the optimum frequency response.
Special Power Supply for Clear iPod Sound
The iPod dock has an independent power supply to prevent operating or charging current from the iPod from flowing into the amp ground signal. This ensures optimum iPod sound quality.
Balanced System for Minimal Noise
An unbalanced interface is subject to commonmode voltage noise, so Yamaha uses a balanced system to receive the iPod signal. This makes a significant contribution to reducing noise in the system for higher sound quality.
Subwoofer Out
Subwoofer Out lets you connect a subwoofer for stronger bass and better overall sound quality.
Pre-main coupler
Preout/Main In jacks let you connect other components to enhance the versatility and quality of your system.
Power management (Auto power off)
Auto Power Off automatically turns off the power after a certain amount of time to save energy.
New Remote Controls
The R-S700 preset remote control is designed to make it easy to operate the receiver’s many functions.
|
|
R-S700 | |
|---|---|---|
| Specifications | ||
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 160 W + 160 W | |
| Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) | 100W + 100W (0.019% THD) | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 140/170/220/290 W | |
| Frequency Response | 10 Hz-100 kHz ±1 dB (Main In) | |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) | 0.015% (50 W/8 ohms) | |
| Signal-to-Noise Ratio (CD) | 107 dB (CD Direct on, 200 mV) | |
| Audio In / Out | 6 / 2 | |
| Subwoofer Out | Yes | |
| FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) | 3 µV (20.8 dBf) | |
| FM Signal-to-Noise Ratio (Mono/Stereo) | 74 dB / 70 dB | |
| Standby Power Consumption | 0.5 W | |
| Power Management (Auto Power Standby) | Yes (4/6/12 hours) | |
| Pure Direct | Yes | |
| Dimensions (W x H x D) | 435 x 151 x 387 mm | |
| Weight | 11.2 kg | |
