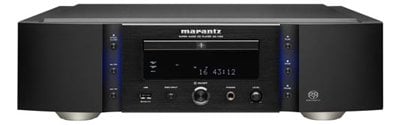

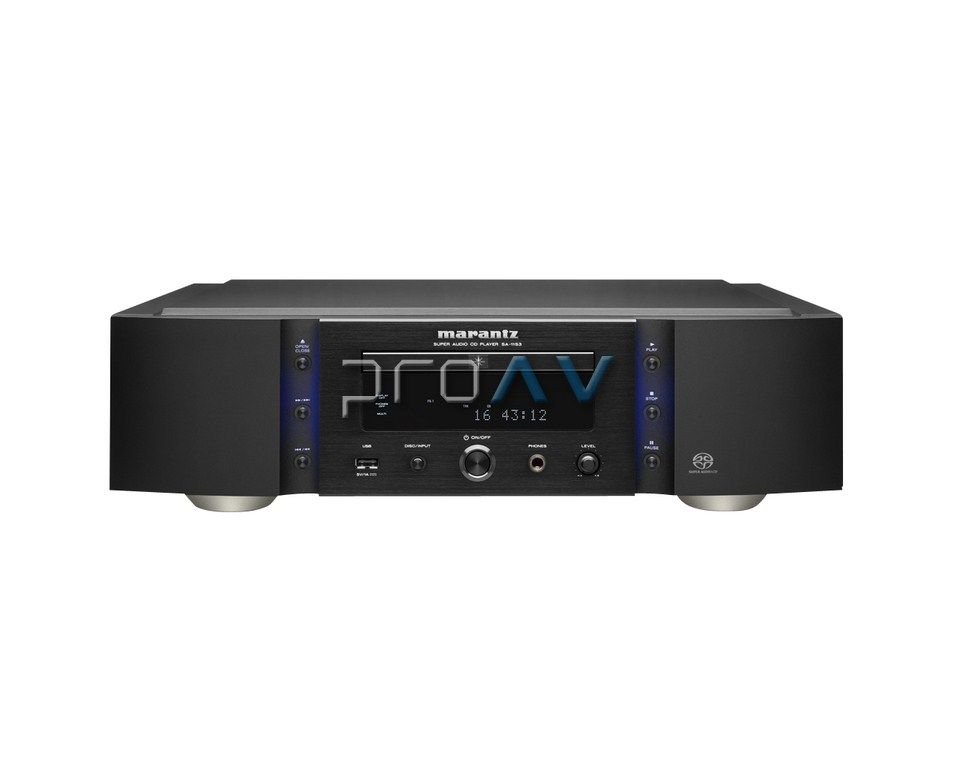

SA-11S3 CD Player
SA-11S3 SACD/CD Player
Versatile audio player delivers
exceptional sound quality
Cutting-edge converter chip for
enhanced dynamic range and audio clarity
Coaxial, optical, and USB ports
for maximum connectivity
High-fidelity CD playback with
SACDM2 mechanism
Multiple digital filtering options
for adjustable audio playback
Includes convenient remote control
Premium Converter Chip Enhances Dynamic
Range and Clarity
New for the SA-11S3 is the inclusion of the
top-line Burr-Brown DSD1792A D/A converter chip, which features both
PCM and DSD decoding, and provides a high current output that is
substantially larger (7X more) than the DAC chip used in previous
models, for greater dynamic range and improved signal to noise
characteristics. Coupled to the Marantz-designed latest generation
PEC777f3 24 bit DSP processor/digital filter, the combination
provides unparalleled sound quality from both PCM (CD, LPCM, WAV)
sources and Super Audio CD DSD bitstreams. With multi-channel SACDs,
the SA-11S3 also provides stereo (2 channel) down-mixing.
Multiple Filters Offer Versatile
Listening Options
Two digital filter options are provided for both
PCM and DSD bitstreams. With PCM content Filter 1 has a symmetrical
impulse response with extremely short pre- and post-echo
characteristics and an absolutely linear phase response for a sound
that is the most faithful to the original digital audio source, while
the Filter 2 option provides a more analog-like signal that strikes
the best balance of fine detail coupled with rich harmonics. With DSD
content from SACD, Filter 1 provides a direct decoding function with
no additional filtering, while the Filter 2 option attenuates any
residuals above 100 kHz.
As well, there are two additional
digital filtering functions, one that includes noise shaping for
improved in-band low level linearity as well as another one that
provides effective filtering of extremely low frequency infrasonic
signals (stop band is DC~1.7 Hz). All three digital filtering
functions are controlled by dedicated buttons on the remote, with
last memory function that retains the settings during disc changes
and even when the player is powered down.
SACDM2 Optical Drive Mechanism for
Accurate Disc Readout
For optimum disc readout accuracy, the
SA-11S3 is equipped with our latest generation SACDM2 optical disc
drive mechanism, which provides solid rotational accuracy with both
CDs and SACDs, and features a dual layer stainless steel/steel top
plate, and the whole mechanism is securely anchored to the dual layer
base plate via its own solid metal sub-chassis. For maximum shielding
from RF interference, the chassis is copper-plated throughout.
Exclusive Output Technology Ensures
Faithful Playback
The sophisticated fully differential analog
output stages feature our exclusive HDAM SA2 and HDAM technologies,
which dispense with the traditional IC op amp chips in favor of pure
discrete circuit elements for the most accurate and musically honest
reproduction. Both balanced (XLR) and unbalanced outputs are
provided, and the unbalanced (RCA) jacks feature high purity solid
copper cores that are gold-plated for optimum signal transfer.
Multiple Ports for Versatile
Connectivity
Digital versatility is the hallmark of the SA-11S3,
as the player does double duty as a reference quality DAC and is
equipped with numerous digital interfaces to accept a wide variety of
formats. The front panel features a USB-A port for connection to a
portable device such as an iPod, iPhone, iPad and the like, as well
as compatibility with other devices. There's also a USB-B port on the
rear panel, which provides compatibility with a wide range of digital
formats, including up to 192 kHz/24 bit digital audio, and is
compatible with asynchronous data streams from a computer (drivers
are available for download on our website). In addition, there are
coaxial and optical digital input ports for connection to other
digital audio sources.
Rugged, Durable Construction
Weighing
in at a substantial 37 pounds, the SA-11S3 features a rugged chassis
that includes a newly designed 5mm thick aluminum top cover that
allows stacking, even with heavy components, and the gorgeous front
panel includes a full alpha-numeric display with ultra low noise LCD
technology, which provides detailed operational information along
with SACD text. The newly designed remote control features hairline
metallic finish and provides a full suite of commands compatible with
the matching PM-11S3 Reference Series integrated amplifier for easy
single remote system control.
What's in the Box
SA-11S3 SACD/CD Player, remote control, and user's manual.
