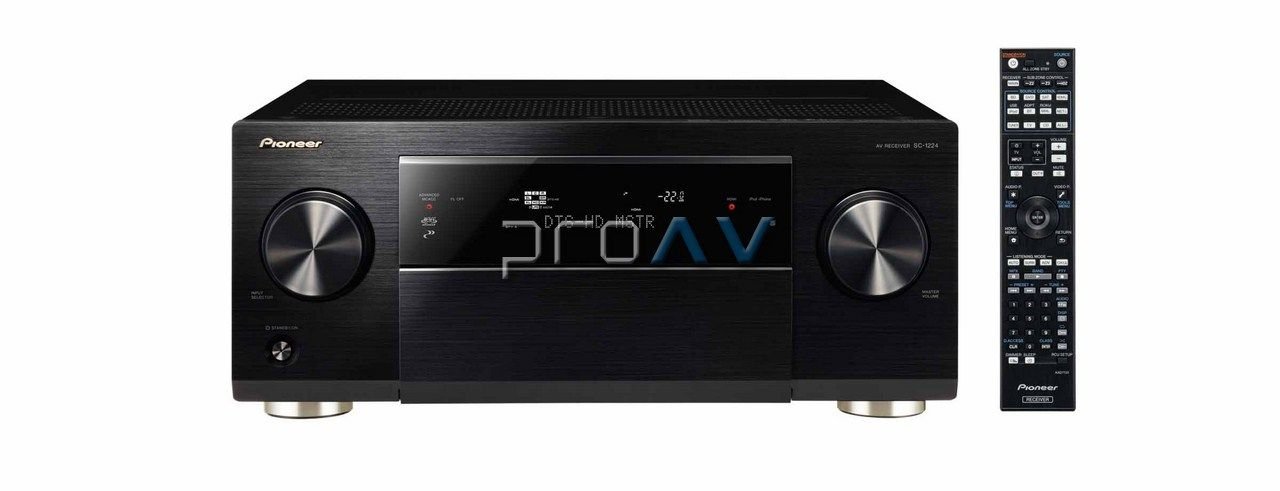

SC-1224 Ev Sinema Amfisi













Immerse yourself in high quality audio and video.

With 190 watts output per channel, the SC-1224 transforms your living area in a true home cinema. It has an ingeniously designed insulated dual chassis that, together with a rigid trans-stabilizer, reduces noise and ensures high quality audio reproduction. The robust design houses a powerful Class D (digital) amplifier, which produces impeccable sound without needing high power consumption.

The SC-1224 AV receiver passes through Ultra HD 4K video and even upscales lower resolution signals from any source into 4K. This way you are able to enjoy the highest picture quality that is available today. In addition, this AV receiver supports Multi-Zone playback, allowing you to watch your favourite film in one room, while someone else listens to music in another.

This AV receiver is ready for high-resolution music files and gapless playback. Connect your iPod, iPhone, or Android device, and it becomes one with the receiver. The SC-1224 also offers audio playback in the Direct Streaming Digital (DSD) format and multi-channel 96 kHz 24-bit (5.0 and 5.1) FLAC and WAV files via the front USB. Get worldwide internet radio with vTuner, stream millions of songs via Spotify Connect, or stream your content via DLNA, Wi-Fi (adaptor included) and Bluetooth (built-in).

















Professional audio components
This receiver is equipped with a high quality SABRE Premier Audio DAC, a digital to analogue converter that produces crystal clear sound. The DAC also eliminates jitter, so the signal remains free of digital artefacts.





Massive power
audiophile level Class D amplification brings you unprecedented power output. Short signal paths ensure impeccable sound, while efficient cooling provides superior performance with lower power consumption (-44% vs analogue amps). Now with 4-16Ω speaker support.



4K Ultra HD video ready
Experience real high definition with 4K ultra-high resolution video. 4K Pass Through ensures your receiver is ready for the next generation of high def video.





Advanced room calibration
Advanced MCACC analyses the sound field of your speakers and automatically adjusts their virtual size, level, distance, and response. With the Subwoofer EQ, you can manually set the bass levels for more powerful playback.





Always in full control
Using the convenient iControlAV5 app, you can easily control all important functions directly from your smartphone or from your tablet. The iControlAV5 app is available for free for iOS and Androiddevices





Stream with ease
AirPlay compatibility allows enthusiasts to access their iTunes music library through the AV receiver. This AV receiver is also DLNA certified (1.5) to work as a Digital Media Player and Digital Media Renderer.





Enjoy Spotify Connect
Enjoy on demand access to millions of songs with Spotify’s digital streaming service. This AV receiver is ready for Spotify Connect, which lets you select songs on your Spotify app to listen to on your audio system.







Bluetooth built-in
Easily stream songs from compatible devices using the built-in Bluetooth wireless technology. This AV receiver features A2DP and Audio/Video Remote Control Profile (AVRCP). Supported codecs include SBC, AAC, and aptX.





Hi-Res multi-channel audio
Enjoy high-resolution audio playback like never before. This AV receiver supports both AIFF and Apple Lossless hi-resolution audio files. You can even playback the latest multichannel WAV and FLAC audio files









Main Features

Direct Energy amplifier

Output Power per Channel: 200W

Impedance at Output Level: 4Ω

Number of Channels: 7

Signal / Noise Ratio: 101 dB

Input Connections

Front

1 x HDMI

1 x USB 2.0 (iPod/iPhone Digital Audio, USB drive)


1 x MCACC Setup MIC



Rear

6 x HDMI (5 Assignable + 1 for HDMI/MHL)


1 x Ethernet

2 x AV Composite


1 x Audio (Assignable)

2 x Digital Coaxial (Assignable)

2 x Digital Optical (Assignable)

2 x Component Video(Assignable)

1 x IR

1 x USB charge port for Wireless LAN Converter



Output Connections

Front

1 x Phones out



Rear


2 x HDMI


1 x AV Composite

1 x Monitor Component

1 x Monitor Composite

1 x IR

2 x Preout Subwoofer

9 x Speaker out



Plays: AM/FM Tuner (63 presets)


Internet Radio with vTuner


Spotify Ready

Apple AirPlay



Via LAN/USB: MP3, WAV, AAC, WMA, FLAC, AIFF, Apple Lossless and DSD


iPod Digital Transmission(*)



192 kHz/24-bit audio playback:
WAV, FLAC, and AIFF



Gapless playback: MP3, WAV, AAC, FLAC, AIFF, and Apple Lossless(**)



Multi-channel audio playback(**): WAV, FLAC

Via HDMI: SACD

(*)

Via USB


(**) Except multi-channel audio streaming

MHL Terminal for Android Smartphones

HD Audio Formats: Dolby TrueHD
- DTS-HD Master Audio

Audio Return Channel

Stand-by Pass Through

Control with HDMI (+)

On-Screen Display (GUI)Graphic User Interface with Album Artwork (HDMI only)



7 languages : Dutch, English, French, German, Italian, Russian, Spanish

Sleep Timer

Firmware updates: (via LAN/USB)

AVNavigator

Bluetooth (Built-in)

Internet Radio (vTuner)

Spotify Connect

DLNA Certified (v1.5)

HTC Connect (+)

Windows 8.1 Compatible

Remote Control: Glow-key, learning remote control

Eco Mode.





Input & Output connections

Composite Video Input/Output: 2/1

Digital Optical Input/Output: 2/- (assignable)

Digital Coaxial Input: 2/- (assignable)

Ethernet

HDMI Front Input

HDMI Input/Output: 7 (rear)/2

Headphone Input

Large speaker terminals

Pre-amp Output: (SW)

USB Host (Front)

IR In/Out (+)1/1



Apps: iControlAV5 (+) - AVNavigator





Apple Compatibility

Works with iPod

Works with iPhone

AirPlay

Compatible GenerationsVia USB: iPhone 5/5S/5C
, iPhone 4/4S,
iPhone 3G/3GS


iPod touch 5G/4G/3G/2G/1G
 and iPod classic


iPod nano 7G/6G/5G/4G/3G

Supported Functions: Audio playback-Battery charging





Network Features

Wireless LAN (AXF-7031 WLAN converter included)

Network Standby





Surround Sound Formats

Dolby Digital Plus

Dolby Pro Logic II (+)

Dolby TrueHD

DTS Neo: 6 (+)

DTS-HD Master Audio





Power Output

Power output per channel: 140W

Condition: 1kHz, 1% THD

Rated Power Output:

(Simultaneous Power Output: 560W all channels)

6Ω: 160W per channel

4Ω: 200W per channel

Input (Sensitivity/Imp.): LINE: 380 mV / 47 kΩ

Signal-to-Noise Ratio: LINE: (DIN): 101 dB

Power Requirements: AC 220-230V 50 / 60Hz

Power Consumption (in use / standby): 290 W / 0.1 W

Auto Power Down



Amplifier Specifications

Amplifier: Direct Energy HD Amplifier

Digital Signal Processor: Texas Instruments AureusTM (TMS320DA808)

D/A Converter: 192 kHz / 24-bit

A/D Converter: 96 kHz / 24-bit

Dimensions (W x H x D): 435 x 185 x 441  mm

Weight: 14.7 kg
