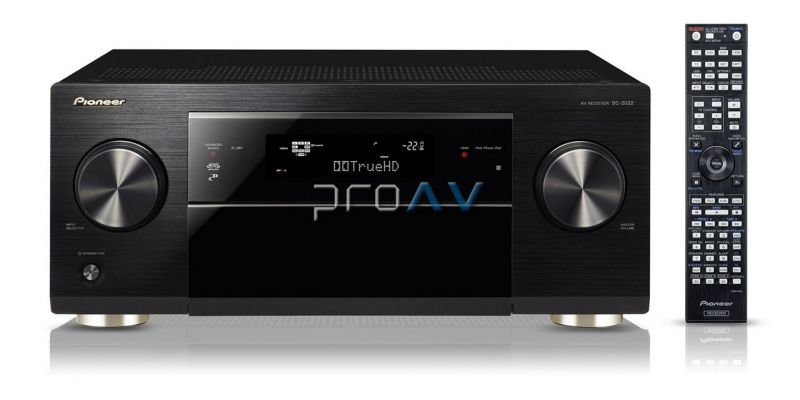

SC-2022 Ev Sinema Amfisi

SC-2022 Ev Sinema Amfisi

59.796,67 TL
Kategori
EV SİNEMA AMPLİLER
Marka
PIONEER
Stok Kodu
EXKNX357
Fiyat
1.371,19 EUR + KDV
Stok için tel açınız
Ürün Bilgisi
Yorumlar
Taksit Seçenekleri
Önerileriniz


7.2 Channel AV Receiver with 7x HDMI, AirPlay, DLNA, Jitter Reduction and Auto Phase Control Plus



Direct Energy HD Amplification with Virtual Sound.

This 7.2-channel AV receiver provides 170W continuous output per channel. It offers all the features available in the VSX series combined with the same Audiophile Grade Class D amplification available in the SC models.





Massive power

Audiophile-level Class D amplification brings you unprecedented power output. Short signal paths ensure impeccable sound and efficient cooling provides superior performance with lower power consumption (-44% vs Analogue Amps). Now with 4-16Ω speaker support.



Less jitter, better audio

Transmission via HDMI can cause clock jitter, resulting in sound distortion during the D/A conversion. PQLS “speed synchronises” the digital audio data between the receiver and your matching Pioneer Blu-ray player, reducing the jitter. The result is clear, rich and precise audio.

Watch a video



Strong bass & sharp highs

During Blu-ray Disc/CD playback, Auto Phase Control Plus makes a real-time analysis of the phase difference between the LFE (low frequency effect) and the main signals, and automatically compensates the gap. Elimination of phase lag enhances strong bass and clear high-frequency sound.

Watch a video





Bluetooth audio streaming

Stream audio from your Bluetooth-equipped phone, laptop or tablet (optional AS-BT100 adapter required). The Sound Retriever feature optimises sound quality during transmission.

Watch a video



Stream with DLNA

DLNA is widely supported on PCs, laptops, smartphones and other devices. As this receiver is DLNA certified, you can easily stream audio from such a device using your home network.

Watch a video



Stream with AirPlay

Apple's AirPlay lets you stream music from any compatible device connected to your home network. This means you can easily enjoy your iTunes music library through your AV receiver.

Watch a video





Image optimised for you

Advanced Video Adjust optimises the video signal according to your type of screen or projector. Based on MCACC calibration data, it also adjusts image quality to your distance from the screen.
The additional Stream Smoother will reduce block noise and mosquito noise on lower bit rate video content such as YouTube.

Watch a video



Always in full control

iControlAV2012 lets you modify all important receiver functions from your smartphone or tablet (iOS / Android).
Featuring Virtual Speakers and PQLS, it even allows you to define EQ frequencies by drawing out 'curves' on your smartphone's touchscreen.

Watch a video



Intuitive setup and operation

With the receiver connected to your home network, AVNavigator software makes installing a breeze. A Wiring Navi guides you in making the connections with speakers and other devices, and updates the receiver with the appropriate settings, while the interactive manual lets you intuitively explore every feature. AVNavigator is also backed by a free iPad app.

Watch a video











Specifications

Close all Open all

Main Features

  • Direct Energy HD amplifier Yes

  • Output Power per Channel 170W

  • Impedance at Output Level 6Ω

  • Number of Channels 7

  • 4Ω Speaker Support Yes

  • Input Connections • 7 x HDMI (1080p upscaling)
    • 4 x Composite
    • 2 x Component
    • 2 x Coaxial
    • 2 x Optical
    • 1 x USB host (front)
    • 1 x USB power port (rear)
    • 1 x iPod/iPhone Digital via USB (cable included)
    • 1 x Ethernet
    • 1 x Bluetooth adapter port for AS-BT200
    • 1 x rear USB charge port for AS-WL300 Wireless Converter

  • Output Connections • 1 x HDMI
    • 1 x Composite
    • 2 x Subwoofer pre out

  • File Playback Via LAN / USB:
    • MP3, WAV, AAC, WMA, FLAC

    192 kHz/24-Bit Audio playback:
    • WAV
    • FLAC

  • I/P Control for CI Yes

  • HD Audio Formats • Dolby TrueHD
    • DTS-HD Master Audio

  • Audio Return Channel Yes

  • Stand-by Pass Through Yes

  • Control with HDMI (+) Yes

  • On-Screen Display (GUI) 7 languages via HDMI only:
    • English
    • Dutch
    • French
    • German
    • Italian
    • Spanish
    • Russian

  • Firmware updates Yes (via Internet or USB)

  • AVNavigator Yes

  • Internet Radio Yes

  • vTuner Yes

  • DLNA Certified (+) Yes (v1.5)

  • Windows 7 Certified Yes

  • Remote Control Glow-key, learning remote control

  • RF Remote Yes (optional)



Input & Output connections

  • AV Front Input Yes

  • Bi-Amplifier Yes

  • Bluetooth Adapter Port (+) Yes

  • Component Video Input/Output 2/1 (assignable)

  • Composite Input/Output 4/3 (1 main - 1 for zone 2 - 1 for DVR/BDR Rec)

  • Digital Optical Input/Output 2/- (assignable)

  • Digital Coaxial Input/Output 2/- (assignable)

  • Ethernet (+) 1

  • HDMI Front Input Yes

  • HDMI Input/Output 7 (6 assignable) /1

  • HDMI version 1.4a

  • Headphone Yes

  • IR In/Out (+) 2/1

  • Large speaker terminals Yes

  • Pre-amp Output Yes, All (9.2 ch)

  • RS-232C Yes

  • Speaker A/B Versatile speaker configuration

  • USB Host (Front) (+) Yes

Apps

  • iControlAV2012 Yes

  • Air Jam Yes

  • AVNavigator for PC & iPad

Apple Compatibility

  • Works with iPod Yes (cable included)

  • Works with iPhone Yes

  • Works with iPad Yes

  • AirPlay Yes

  • iPhone Control Button (+) Yes

  • Compatible Generations iPad, iPad2, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone, iPod touch 4G/3G/2G/1G, iPod nano 6G (Audio only)/ 5G/4G/3G

  • Supported Functions • Audio & video playback
    • On-screen album art
    • Charging

Network Features

Surround Sound Formats

Audio Features

Video Features

Power Output

  • Power output per channel 170W

  • Condition 1 kHz, 1 % THD, 6 Ω

  • Rated Power Output 170W per channel

  • Power Requirements AC 220 - 230 V / 50/60 Hz

  • Power Consumption (in use / standby) 290 W / 0.1 W

  • Auto Power Down Yes

Construction

  • Advanced Direct Construction Yes

  • Design • Insulated Dual Chassis
    • Trans-stabiliser

Amplifier Specifications

  • Digital Signal Processor Texas Instruments Aureus(TM) TMS320DA808

  • D/A Converter 192 kHz / 24-bit

  • A/D Converter 96 kHz / 24-bit

  • Dimensions (W x H x D) 435 x 185 x 441 mm

  • Weight 14.8 kg
