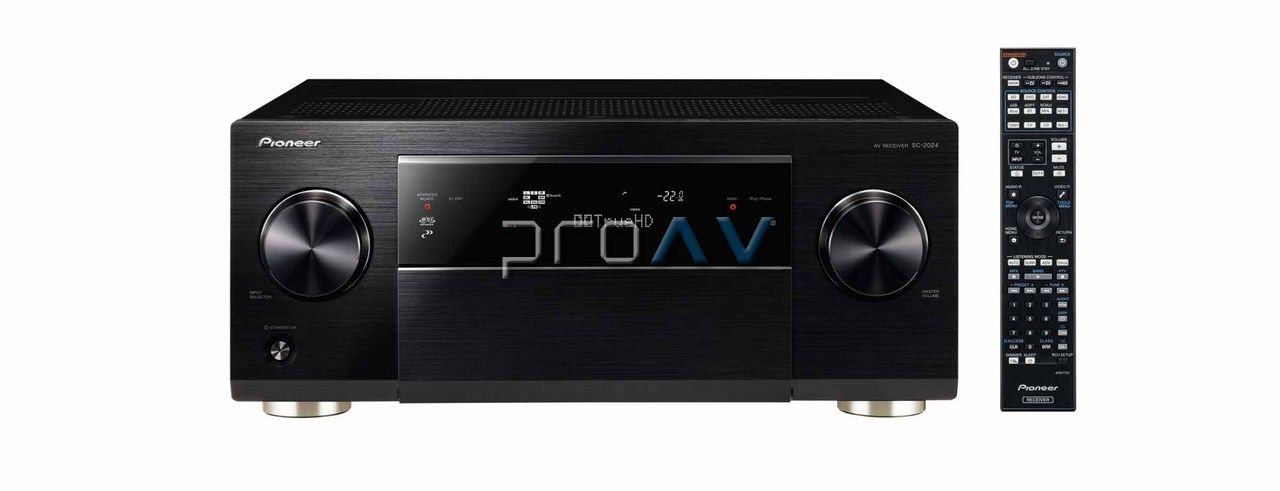

SC-2024 Ev Sinema Amfisi













Your AV power house.

The SC-2024 will transform any room into a true home cinema, with up to 190 watts output per channel. Its specially designed chassis is equipped with a trans-stabilizer to reduce noise and to ensure high quality audio. It also houses a powerful Class D (digital) amplifier, which guarantees maximum performance and minimum energy loss.

This 7.2-channel AV receiver offers advanced connectivity with features to match its performance. It is ready to pass through Ultra HD 4K video to a compatible display. The SC-2024 will even upscale lower resolution signals to 4K, so you can enjoy high quality pictures from any source. For entertainment in different rooms simultaneously, this AV receiver supports Multi-Zone playback via HDMI.

There are numerous ways to experience your music with the SC-2024. Playback high-resolution music files, DSD tracks, or multi-channel FLAC and WAV audio files via the front USB port. Connect your Android device via MHL, enable HTC connect, or plug in your iPod/iPhone to access all your favourite songs. Get worldwide internet radio with vTuner, stream millions of songs via Spotify Connect, or stream your content via DLNA, Wi-Fi (adaptor included) and Bluetooth (built-in).















Professional audio components
This receiver is equipped with a high quality SABRE Premier Audio DAC, a digital to analogue converter that produces crystal clear sound. The DAC also eliminates jitter, so the signal remains free of digital artefacts.





Massive power
audiophile level Class D amplification brings you unprecedented power output. Short signal paths ensure impeccable sound, while efficient cooling provides superior performance with lower power consumption (-44% vs analogue amps). Now with 4-16Ω speaker support.



4K Ultra/60p HD video ready
Experience real high definition with 4K ultra-high resolution video. 4K Pass Through ensures your receiver is ready for the next generation of high def video.





Advanced room calibration
Advanced MCACC analyses the sound field of your speakers and automatically adjusts their virtual size, level, distance, and response. With the Subwoofer EQ, you can manually set the bass levels for more powerful playback.





Always in full control
Using the convenient iControlAV5 app, you can easily control all important functions directly from your smartphone or from your tablet. The iControlAV5 app is available for free for iOS and Androiddevices





Stream with ease
AirPlay compatibility allows enthusiasts to access their iTunes music library through the AV receiver. This AV receiver is also DLNA certified (1.5) to work as a Digital Media Player and Digital Media Renderer.





Enjoy Spotify Connect
Enjoy on demand access to millions of songs with Spotify’s digital streaming service. This AV receiver is ready for Spotify Connect, which lets you select songs on your Spotify app to listen to on your audio system.







Bluetooth built-in
Easily stream songs from compatible devices using the built-in Bluetooth wireless technology. This AV receiver features A2DP and Audio/Video Remote Control Profile (AVRCP). Supported codecs include SBC, AAC, and aptX.





Hi-Res multi-channel audio
Enjoy high-resolution audio playback like never before. This AV receiver supports both AIFF and Apple Lossless hi-resolution audio files. You can even playback the latest multichannel WAV and FLAC audio files









Main Features

Direct Energy HD amplifier

Output Power per Channel: 240W

Impedance at Output Level: 4Ω

Number of Channels: 7

Signal / Noise Ratio: 101 dB

Input Connections

Front

1 x HDMI

1 x USB 2.0 (iPod/iPhone Digital Audio, USB drive)


1 x MCACC Setup MIC



Rear

6 x HDMI (5 Assignable + 1 for HDMI/MHL)


1 x Ethernet

2 x AV Composite


1 x Audio (Assignable)

2 x Digital Coaxial (Assignable)

2 x Digital Optical (Assignable)

2 x Component Video(Assignable)

1 x IR

1 x USB charge port for Wireless LAN Converter

2 x 12V Trigger (RS-232C)



Output Connections

Front

1 x Phones out



Rear


2 x HDMI
 (selectable for MAIN ZONE/HDZONE)

1 x AV Composite

1 x Monitor Component

1 x Monitor Composite

1 x IR

2 x Preout Subwoofer

9 x Speaker out



Plays: AM/FM Tuner (63 presets)


Internet Radio with vTuner


Spotify Ready

Apple AirPlay



Via LAN/USB: MP3, WAV, AAC, WMA, FLAC, AIFF, Apple Lossless and DSD


iPod Digital Transmission(*)



192 kHz/24-bit audio playback:
WAV, FLAC, and AIFF



Gapless playback: MP3, WAV, AAC, FLAC, AIFF, and Apple Lossless(**)



Multi-channel audio playback(**): WAV, FLAC

Via HDMI: SACD

(*)

Via USB


(**) Except multi-channel audio streaming

MHL Terminal for Android Smartphones

HD Audio Formats: Dolby TrueHD
- DTS-HD Master Audio

Audio Return Channel

Stand-by Pass Through

Control with HDMI (+)

On-Screen Display (GUI)Graphic User Interface with Album Artwork (HDMI only)



7 languages : Dutch, English, French, German, Italian, Russian, Spanish

Sleep Timer

Firmware updates: (via LAN/USB)

AVNavigator

Bluetooth (Built-in with aptX support)

Internet Radio (vTuner)

Spotify Connect

DLNA Certified (v1.5)

HTC Connect (+)

Windows 8.1 Compatible

Remote Control: Glow-key, learning remote control

Eco Mode.





Input & Output connections

Bi-Amplifier



Composite Video Input/Output: 2/1

Component Video Input/Output: 2/1 (assignable)

Digital Optical Input/Output: 2/- (assignable)

Digital Coaxial Input: 2/- (assignable)

Ethernet

HDMI Front Input

HDMI Input/Output: 7 (assignable)/2

Headphone Input

Large speaker terminals

Pre-amp Output: All(7.1 ch)

USB Host (Front)

IR In/Out (+)1/1



Apps: iControlAV5 (+) - AVNavigator fot iPad (built-in)





Apple Compatibility

Works with iPod

Works with iPhone

AirPlay

Compatible GenerationsVia USB: iPhone 5/5S/5C
, iPhone 4/4S,
iPhone 3G/3GS


iPod touch 5G/4G/3G/2G/1G
 and iPod classic


iPod nano 7G/6G/5G/4G/3G

Supported Functions: Audio playback-Battery charging





Network Features

Wireless LAN (AXF-7031 WLAN converter included)

Network Standby





Surround Sound Formats

Dolby Pro Logic II (+)

Dolby TrueHD

DTS Neo X

DTS-HD Master Audio





Power Output

Condition: 1kHz, 1% THD

Rated Power Output:

(Simultaneous Power Output: 630W all channels)

6Ω: 190W per channel

4Ω: 240W per channel

Input (Sensitivity/Imp.): LINE: 380 mV / 47 kΩ

Signal-to-Noise Ratio: LINE: (DIN): 101 dB

Power Requirements: AC 220-230V 50 / 60Hz

Power Consumption (in use / standby): 290 W / 0.1 W

Auto Power Down



Amplifier Specifications

Amplifier: Direct Energy HD Amplifier

Digital Signal Processor: Texas Instruments AureusTM (TMS320DA808)

D/A Converter: 192 kHz / 24-bit

A/D Converter: 96 kHz / 24-bit

Dimensions (W x H x D): 435 x 185 x 441  mm

Weight: 15.1 kg
