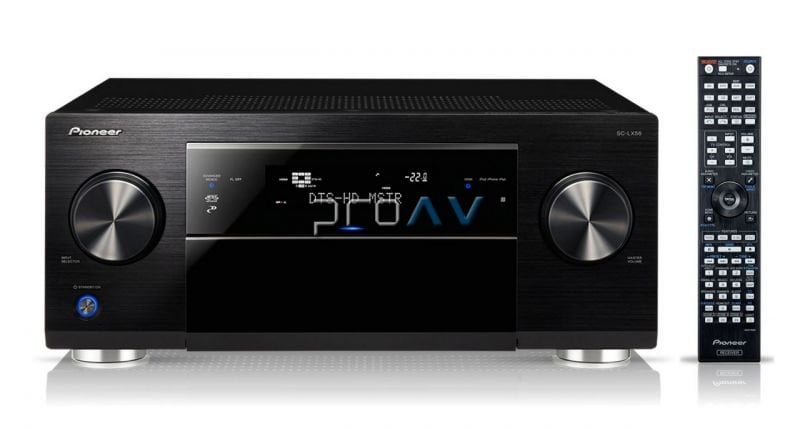

SC-LX56 Ev Sinema Amfisi
9.2 Channel Direct Energy HD AV Receiver with 8x HDMI, AirPlay, DLNA, 4K Pass Through and MHL for Android
Direct Energy HD Amp with THX Select 2 certification
This 9.2-channel THX Select 2 AV receiver offers audiophile grade Class D amplification at continuous 170 W output per channel. On top of that, you get MHL for Android, wireless LAN, 4K Pass Through, 4-16Ω support, 8x HDMI inputs and no fewer than 11 speaker terminals.
Massive power
Audiophile-level Class D amplification brings you unprecedented power output. Short signal paths ensure impeccable sound and efficient cooling provides superior performance with lower power consumption (-44% vs Analogue Amps). Now with 4-16Ω speaker support.
Built for tomorrow'sHD technology
Experience real definition with the latest 4K HDTV specification for ultra-high resolution video. 4K Pass Through ensures you have the most up-to-date technology to take advantage of advanced digital formats.
Connect your Android smartphone with MHL
Stream high-quality video and audio from your Android device using a single cable. Thanks to the MHL-compatible HDMI connection on the front panel, you also can charge your device at any time.
Image optimised for you
Advanced Video Adjust optimises the video signal according to your type of screen or projector. Based on MCACC calibration data, it also adjusts image quality to your distance from the screen.
The additional Stream Smoother will reduce block noise and mosquito noise on lower bit rate video content such as YouTube.
Strong bass & sharp highs
During Blu-ray Disc/CD playback, Auto Phase Control Plus makes a real-time analysis of the phase difference between the LFE (low frequency effect) and the main signals, and automatically compensates the gap. Elimination of phase lag enhances strong bass and clear high-frequency sound.
Less jitter, better audio
Transmission via HDMI can cause clock jitter, resulting in sound distortion during the D/A conversion. PQLS “speed synchronises” the digital audio data between the receiver and your matching Pioneer Blu-ray player, reducing the jitter. The result is clear, rich and precise audio.
Stream with DLNA
DLNA is widely supported on PCs, laptops, smartphones and other devices. As this receiver is DLNA certified, you can easily stream audio from such a device using your home network.
Stream with AirPlay
Apple's AirPlay lets you stream music from any compatible device connected to your home network. This means you can easily enjoy your iTunes music library through your AV receiver.
Always in full control
iControlAV2012 lets you modify all important receiver functions from your smartphone or tablet (iOS / Android).
Featuring Virtual Speakers and PQLS, it even allows you to define EQ frequencies by drawing out 'curves' on your smartphone's touchscreen.
Main Features
Direct Energy HD amplifierYes
Output Power per Channel170W
Impedance at Output Level6Ω
Number of Channels9
4Ω Speaker SupportYes
Input Connections• 8 x HDMI (1080p upscaling)
• 4 x Composite
• 2 x Component
• 2 x Coaxial
• 2 x Optical
• 1 x USB host
• 1 x iPod/iPhone Digital via USB (cable included)
• 1 x Ethernet
• 1 x Bluetooth adapter port for AS-BT200
• 1 x rear USB charge port for AS-WL300 Wireless ConverterOutput Connections• 2 x HDMI
• 3 x Composite
• 1 x Component
• 1 x Optical
• 2 x Subwoofer pre outFile PlaybackVia LAN / USB:
• MP3, WAV, AAC, WMA, FLAC
192 kHz/24-Bit Audio playback:
• WAV
• FLACMHL Terminal for Android SmartphonesYes
I/P Control for CIYes
HD Audio Formats• Dolby TrueHD
• DTS-HD Master Audio
• DTS-HD High ResolutionAudio Return ChannelYes
Stand-by Pass ThroughYes
4K PassthroughYes
On-Screen Display (GUI)7 languages via HDMI only:
• English
• Dutch
• French
• German
• Italian
• Spanish
• RussianFirmware updatesYes (via Internet or USB)
AVNavigatorYes
Internet RadioYes
vTunerYes
DLNA Certified (+)Yes (v1.5)
Remote ControlIlluminated, learning remote control
RF RemoteYes (optional)
Input & Output connections
Bi-AmplifierYes
Component Video Input/Output2/1 (assignable)
Composite Input/Output4/3 (1 for Zone 2)
Digital Optical Input/Output2/1 (assignable)
Digital Coaxial Input/Output2/- (assignable)
HDMI Front InputYes
HDMI Input/Output8 (7 assignable) /2
HDMI version1.4a
HeadphoneYes
Large speaker terminalsYes
Pre-amp Output Yes, All (11.2 ch)
RS-232CYes
Speaker A/BVersatile speaker configuration
Apps
iControlAV2012Yes
Air JamYes
AVNavigatorfor PC & iPad
Apple Compatibility
Works with iPodYes (cable included)
Works with iPhoneYes
Works with iPadYes
AirPlayYes
Compatible Generations• iPod touch 4G, 3G, 2G, 1G
• iPod Nano 6G (audio), 5G, 4G, 3G
• iPhone 4S, 4, 3GS, 3G,
• iPad, iPad 2Supported Functions• Audio & video playback
• On-screen album art
• Charging
Network Features
Wireless LANYes (converter included)
Surround Sound Formats
DTS (+)Yes
DTS-ES (+)Yes
DTS Neo XYes
THX Certified (+)Yes (THX Select2 Plus)
Surround Modes (+)15 + 1 for Phones
Audio Features
AM/FM Tuner with RDSYes
Tuner Pre-set Stations63
Auto Level Control (+)Yes (Multi-channel)
Auto SurroundYes
DSD-to-PCM ConvertorYes (Multi-channel)
Dynamic Range ControlYes
Headphone SurroundYes
Jitter ReductionYes
Multizone Function (+)Yes (2)
Auto Phase Control Plus Yes
MCACC (+)Yes (Advanced, 9-band)
PQLS (+)Bit-stream / Multi-surround / 2-channel
Advanced Sound Retriever (+)Yes (Multi-channel)
Sound Retreiver linkYes
Virtual DepthYes
Virtual HeightYes
Virtual WideYes
X-Curve (+)Yes
Video Features
3D ReadyYes
Upscaling to 1080pYes
Advanced Video AdjustYes
PureCinemaYes
Stream SmootherYes
HDMI Standby ThroughYes
HDMI Standby Input SwitchingYes
Power Output
Power output per channel170W
Condition1kHz, 1% THD, 6Ω
Rated Power Output170W per channel
Power Requirements220–230 V, 50/60 Hz
Power Consumption (in use / standby)330 W / 0.1 W
Auto Power DownYes
Construction
Advanced Direct ConstructionYes
Design• Chassis duplo isolado
• Trans-stabiliser
Amplifier Specifications
Digital Signal Processor2 x Texas Instruments Aureus(TM) TMS320DA808
D/A Converter192 kHz / 32-bit
A/D Converter192 kHz / 24-bit
Dimensions (W x H x D)435 x 185 x 441 mm
Weight15.3 kg
