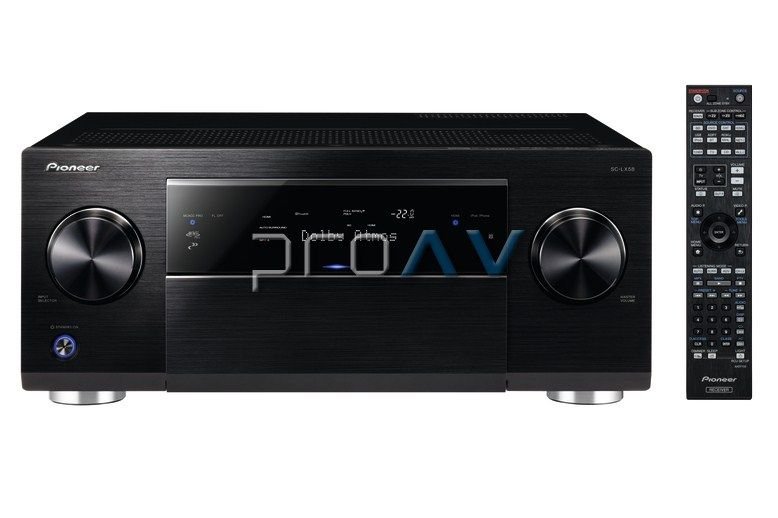

SC-LX58 Ev Sinema Amfisi

















Massive power meets great design

Enjoy your music and movies with maximum impact. This AV receiver is driven by powerful Class D amplification and produces up to 240 watts output per channel. Additionally, it integrates the SABRE32Ultra DAC, which is adopted to deliver exceptional sound, offering jitter-free, high quality audio reproduction with a rich, deep bass.

The SC-LX58 includes a Wireless LAN Converter so you can easily stream your favourite tracks via DLNA, Apple AirPlay, or Bluetooth. You can also connect this amplifier with your iPod/iPhone or Android device for music playback. Or, access millions of on-demand songs via Spotify Connect and the easy-to-operate worldwide internet radio (vTuner)



















Improving audio
The audio scaler upscales your audio by expanding a two-channel digital signal to 32-bit to improve resolution and density. The sampling rate can be increased to 192kHz, reducing noise, and enhancing the characteristics of the digital signal.







Dolby Atmos.Feel every dimension
This amplifier features Dolby Atmos, the latest audio platform for home theatre entertainment. With the right set-up - speakers and receiver - this technology will fill your room with astonishing clarity, richness, detail, and depth.







Massive power
audiophile level Class D amplification brings you unprecedented power output. Short signal paths ensure impeccable sound, while efficient cooling provides superior performance with lower power consumption (-44% vs analogue amps). Now with 4-16Ω speaker support.



4K Ultra/60p HD video ready
Experience real high definition with 4K ultra-high resolution video. 4K Pass Through ensures your receiver is ready for the next generation of high def video.





Multi-zone capabilities
All new amplifiers offer simultaneous entertainment in multiple zones – including a HDZone with a dedicated HDMI output to an additional room. Up to four different mobile devices running Pioneer’s iControlAV5 App can simultaneously control the AV receiver to take full advantage of its multi-room capabilities.







Always in full control
Using the convenient iControlAV5 app, you can easily control all important functions directly from your smartphone or from your tablet. The iControlAV5 app is available for free for iOS and Androiddevices







Stream with ease
AirPlay compatibility allows enthusiasts to access their iTunes music library through the AV receiver. This AV receiver is also DLNA certified (1.5) to work as a Digital Media Player and Digital Media Renderer.





Enjoy Spotify Connect
Enjoy on demand access to millions of songs with Spotify’s digital streaming service. This AV receiver is ready for Spotify Connect, which lets you select songs on your Spotify app to listen to on your audio system.







Bluetooth built-in
Easily stream songs from compatible devices using the built-in Bluetooth wireless technology. This AV receiver features A2DP and Audio/Video Remote Control Profile (AVRCP). Supported codecs include SBC, AAC, and aptX.





Hi-Res multi-channel audio
Enjoy high-resolution audio playback like never before. This AV receiver supports both AIFF and Apple Lossless hi-resolution audio files. You can even playback the latest multichannel WAV and FLAC audio files









Main Features

Direct Energy HD amplifier

Output Power per Channel: 240W

Impedance at Output Level: 4Ω

Number of Channels: 9

Signal / Noise Ratio: 101 dB

Input Connections

Front

1 x HDMI

1 x USB 2.0 (iPod/iPhone Digital Audio, USB drive)


1 x MCACC Setup MIC



Rear

7 x HDMI (5 Assignable + 1 for HDMI/MHL)


1 x Ethernet

2 x AV Composite


1 x Audio (Assignable)

2 x Digital Coaxial (Assignable)

2 x Digital Optical (Assignable)

2 x Component Video(Assignable)

1 x IR

1 x USB charge port for Wireless LAN Converter



2 x 12V Trigger

1 x RS-32C



Output Connections

Front

1 x Phones out



Rear


3 x HDMI
 (selectable for MAIN ZONE/HDZONE)

1 x AV Composite

1 x Monitor Component

1 x Monitor Composite

1 x IR

2 x Preout Subwoofer

9.2-ch Preout (11.2-ch terminals)



Plays: AM/FM Tuner (63 presets)


Internet Radio with vTuner


Spotify Ready

Apple AirPlay



Via LAN/USB: MP3, WAV, AAC, WMA, FLAC, AIFF, Apple Lossless and DSD


iPod Digital Transmission(*)



192 kHz/24-bit audio playback:
WAV, FLAC, and AIFF



Gapless playback: MP3, WAV, AAC, FLAC, AIFF, and Apple Lossless(**)



Multi-channel audio playback(**): WAV, FLAC

Via HDMI: SACD

(*)

Via USB


(**) Except multi-channel audio streaming

MHL Terminal for Android Smartphones

HD Audio Formats: Dolby TrueHD
- DTS-HD Master Audio

Audio Return Channel

Stand-by Pass Through

Control with HDMI (+)

On-Screen Display (GUI)Graphic User Interface with Album Artwork (HDMI only)



7 languages : Dutch, English, French, German, Italian, Russian, Spanish

Sleep Timer

Firmware updates: (via LAN/USB)

AVNavigator

Bluetooth (Built-in with aptX support)

Internet Radio (vTuner)

Spotify Connect

DLNA Certified (v1.5)

HTC Connect (+)

Windows 8.1 Compatible

Remote Control: Illuminated, learning remote control

Eco Mode.





Input & Output connections



Bi-Amplifier



Composite Video Input/Output: 2/1 (assignable)

Component Video Input/Output: 2/1 (assignable)

Digital Optical Input/Output: 2/- (assignable)

Digital Coaxial Input: 2/- (assignable)

Ethernet

HDMI Front Input

HDMI Input/Output: 8(1 front, 7 rear) / 3

Headphone Input

Large speaker terminals

Pre-amp Output: All (9.2 ch)(11.2 ch terminals)

USB Host (Front)

IR In/Out (+)1/1



Apps: iControlAV5 (+) - AVNavigator built-in





Apple Compatibility

Works with iPod

Works with iPhone

AirPlay

Compatible GenerationsVia USB: iPhone 5/5S/5C
, iPhone 4/4S,
iPhone 3G/3GS


iPod touch 5G/4G/3G/2G/1G
 and iPod classic


iPod nano 7G/6G/5G/4G/3G

Supported Functions: Audio playback-Battery charging





Network Features

Wireless LAN (AXF-7031 WLAN converter included)

Network Standby





Surround Sound Formats

Dolby TrueHD

DTS Neo X

DTS-HD Master Audio

Dolby Atmos Upgradable

DTS-ES

Dolby Digital Plus





Power Output

Power output per channel: 240 W

Condition: 1kHz, 1% THD

Rated Power Output:

(Simultaneous Power Output: 760W all channels)

6Ω: 190W per channel

4Ω: 240W per channel

Input (Sensitivity/Imp.): LINE: 390 mV / 47 kΩ

Signal-to-Noise Ratio: LINE: (DIN): 101 dB

Power Requirements: AC 220-230V 50 / 60Hz

Power Consumption (in use / standby): 330 W / 0.1 W

Auto Power Down



Amplifier Specifications

Multi-channel Simultaneous Drive

Digital Signal Processor: Texas Instruments AureusTM (TMS320DA808)

D/A Converter: 192 kHz / 24-bit

A/D Converter: 192 kHz / 24-bit

Dimensions (W x H x D): 435 x 185 x 441  mm

Weight: 15.3 kg
