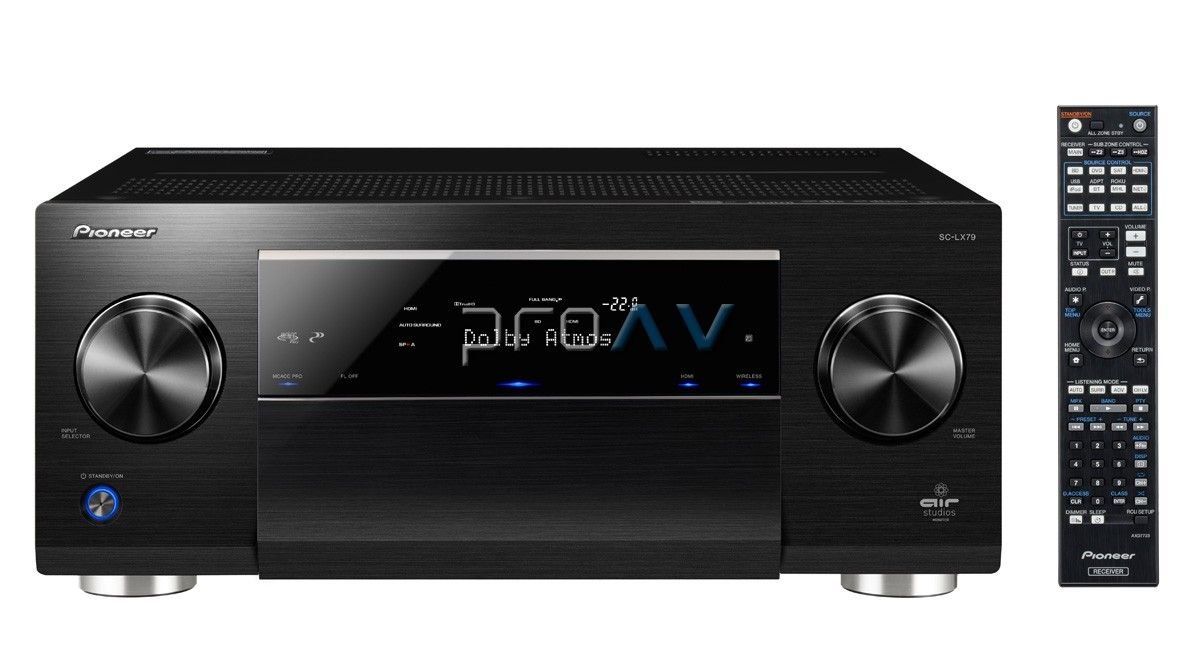

SC-LX79 Ev Sinema Amfisi
High-grade components for exceptional
multi-channel sound
The sound professionals from the renowned Air Studios in London have cooperated on the fine tuning of this receiver and awarded the model the coveted Monitor Certification following a detailed inspection. This is only possible because the SC-LX 79 is structured with high-grade components and tried-and-tested circuits down to the smallest detail. This all begins with the casing which, as part of the elaborate 3D Spaceframe engineering process, uncouples the individual working groups from each other in such a good way that is only otherwise possible in separate processor end block combinations. With eight HDMI inputs (including one on the front side), which are in accordance with the new 2.2 HDMI standard and process Ultra-HD signals, the SC-LX 79 can also easily manage complex home cinemas which, thanks to three independent HDMI outputs, can also be distributed across several rooms. The MCACC Pro calibration system is available for ultra-precise adaptation of the sound to the room; in addition to automatic fine-tuning, it also facilitates numerous manual fine tuning options for advanced users. All sound formats benefit from this system, from classic analog stereo from the integrated phono input, up to the newest surround-sound formats. With Spotify Connect, internet radio, Bluetooth, AirPlay and HiRes-compatible DLNA streaming, the 17.7 kilo receiver is networked in the best possible way. It provides you not only with entertainment that is not only high in quality, but also extremely flexible and varied.
UDIO FEATURES
·
Channels: 9
·
Amplification Type: Class D (Direct Energy
HD)
·
810 W Multi ch Simultaneous Drive (8 ohms, 1
kHz, THD 1.0 %)
·
250 W/ch (4 ohms, 1 kHz, THD 1.0 %, 1ch
Driven)
·
210 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
·
AIR Studios Monitor Certification
·
Dolby Atmos®/Dolby® TrueHD/Dolby Digital
Plus/Dolby Surround
·
DTS:X/DTS Neural:X™ Ready
·
DTS-HD Master Audio/DTS-ES/DTS Neo:X|11.1
·
DSD Direct Playback via Network/USB (2.8 MHz,
5.6 MHz/2ch)
·
DSD Disc (SACD) Playback via HDMI (2.8
MHz/5.1ch, 2ch)
·
SABRE32 Ultra
DAC (ES9016S) for 9.2ch
·
Audio Scaler 192 kHz/32-bit Enhancer
·
MCACC Pro Room Calibration: Full Band
Phase Control, Auto Phase Control Plus/Phase Control Plus, Standing
Wave Control, 3D Time Axis Measurement, Subwoofer EQ (4
Band), Bass Management System for Dolby Atmos Enabled
Speakers
·
Sound Enhancements: PQLS
Bit-stream/Multi-Surround/2ch, Advanced Sound Retriever
(Multi-ch), Auto Sound Retriever/Auto Sound Retriever for ARC, Auto
Level Control (Multi-ch), Virtual Speakers (Wide/Height/Surround
Back), Rendering Mode
·
Advanced Surround Modes: Action, Drama,
Advanced Game, Sports, Classical, Rock/Pop, Front Stage
Surround, Sound Retriever Air, Phones Surround, ECO Mode 1, ECO Mode
2
·
Input Volume Absorber
·
Speaker System 15 Patterns Including 7
Patterns for Dolby Atmos
VIDEO FEATURES
·
Ultra HD Pass-through with HDCP 2.2
(4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:2/36-bit)
·
Video Scaler (1080p to 4K) with Super Resolution
·
Triple HD Noise Reduction
·
Advanced Video Adjust
· Stream Smoother/Stream Smoother Link
NETWORK FEATURES
·
Apple AirPlay Certified
·
DLNA Certified™ (1.5)
·
HTC Connect™ Certified
·
Compatible with Windows® 8.1
·
Music File Playback/Seek via Network/USB:
AIFF , Apple Lossless, WAV, FLAC, MP3, WMA, AAC, DSD
- 192 kHz/24-Bit Audio playback (AIFF, Apple Lossless, WAV, FLAC)
- Multi-Channel (5.1ch, 5.0ch) Audio Playback (WAV, FLAC)
·
Gapless Playback for AIFF, Apple Lossless,
WAV, FLAC, AAC, MP3, DSD
·
Spotify® Digital Music-Streaming Service
Ready
·
Internet Radio with vTuner
·
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
·
Built-in Bluetooth® Wireless Technology
(Version: 2.1 + EDR, Profile: A2DP/AVRCP, Codec: SBC/AAC)
· Android™ Audio/Video Playback with MHL™
OPERATING FEATURES
·
iPod Digital Transmission via Front USB
Terminal
·
Start-up Navi (Initial Setting App) Ready
(iOS/Android)
·
AVNavigator (Wiring Navi/Interactive
Operation Guide)
·
iControlAV5 Remote Control App Ready
(iOS/Android)
·
HDMI ZONE Out (HDZONE)
·
Power Save for HDMI Standby Through
· Learning Remote Control (Luminous)
CONNECTIONS
Front
·
HDMI 1 in
·
USB 1 in for iPod/iPhone, USB drive
·
MCACC Setup MIC in
·
Phones 1 out
Rear
·
HDMI 7 in (7 assignable, 1 for HDMI/MHL)
·
HDMI 3 out (2 for MAIN, 1 for MAIN/HDZONE)
·
Ethernet 1 In
·
AV (Composite) 2 In/1 Out
·
Audio 1 In (assignable)
·
Phono (MM) 1 In
·
Digital Coaxial 2 In (assignable)
·
Digital Optical 2 In (assignable)/1 Out
·
Component Video 2 In (assignable)
·
Monitor Composite 1 Out
·
Preout 11.2 ch (13.2 ch terminals)
·
Speaker 11 ch Out
·
Independent Dual Subwoofer
·
IR 2 In/1 Out
· 12 V Trigger x 2/RS-232C
OTHER FEATURES
·
Advanced Direct Construction
·
Rigid Trans-Stabilizer
·
Insulated Dual Chassis
·
3D Space Frame Construction
· Anti-Standing Wave Insulator
DIMENSIONS
& WEIGHT
·
Dimensions (W x H x D): 435 x 185 x 441 mm
·
Weight: 17.7 kg
