SR-7007 Ev Sinema Amfisi

SR7007
7ch Integrated Network Receiver

7.2 Channel 4K & 3D Pass Through,
Networking Home Theater Receiver with AirPlay

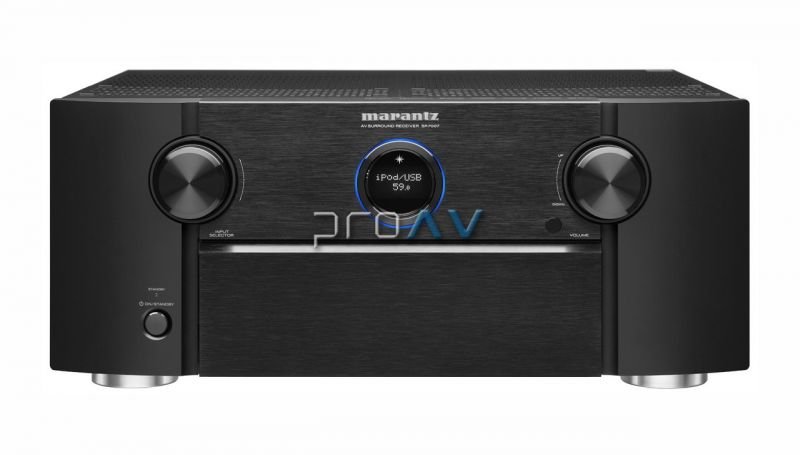

Simplicity and elegance characterize the SR7007. With the blue illuminated and iconic porthole display plus the drop-down
door in all brushed aluminum front panel, the receiver offers both style and comprehensive features, including an Ethernet
port, seven HDMI inputs, three HDMI outputs, and playback of the latest hi-definition audio formats. AirPlay® allows you to
stream music wirelessly from your iPhone®, iPod® Touch and iPad® over your home network. Three audio and video zones,
networking, and support for Bluetooth devices deliver the flexibility you need. While our proprietary HDAM (Hyper-Dynamic
Amplifier Module) audio circuits, Current Feedback topology, and seven fully-discrete, 125 watt amplifiers provide the crushing

Audio/Video Quality
n Fully discrete power amplifier for all 7 channels
(125 W x 7 ch, 8ohm 20-20kHz 0.08%)
n Current feedback & HDAM pre amplifier circuit
n 4K video support (path-through and GUI overlay)
n 3D pass-through technology for enjoying 3D
video entertainment with dynamic surround sound
n 1080p/24Hz upscaling via HDMI
n 4K (3840×2160) upscaling via HDMI

Connectivity, Flexibility
& Expandability
n Airplay: Stream music from your iPad, iPhone or
iPod Touch or from your iTunes music library
n Internet Radio
n Networking Ready: Stream internet radio, Pandra,
SIRIUS XM, as well as music and photos over the
home network
n Bluetooth wireless connectivity (M-XPort) via optional
RX-101 adaptor
n Gold plated 7.2 Channel Pre-amp outputs (parallel)
allow the connection of external power amplifiers if
needed
n Front Panel USB Input Direct digital play for iPod,
iPhone and USB drives

n 7 (front: 1) /2 HDMI In/Out
-Simultaneous dual outputs allows two video
devices connected and output same source
simultaneously
-CEC (Control)　
-ARC (Audio Return Channel)
-Standby source setting via HDMI control
-Auto Lip Sync.
-Deep Color,“x.v.Color”
-Pass through in standby mode
-Zone2 HDMI output allows different source
for zone2
n Audyssey MultEQ XT setup
n Audyssey Dynamic EQ & Dynamic Volume
n 3/1 (gold plated) Component In/Out
n 4 (front: 1) / 2 (gold plated) Composite In/Out
n 2/2 Optical/Coaxial (gold plated)Digital In
n Headphone output
n HD Radio (AM/FM) and FM Tuner
n 56 Tuner Presets
n 6 Audio inputs (incl. front input) and an
output(gold plated)
n Phono input (gold plated)
n 7.1 ch Input
Ease of Use
n Improved System Setup with menu assist.
n Rich overlay GUI with English, French, or Spanish

n New LCD Learning Remote handset
n Auto Power Off
n Mobile App control with advanced media browsing.
(iOS & Android)
Additional Features
n Power amp Assign for 7.1ch (SB ch.), 5.1ch +
Front Height, 5.1 ch + Front Wide, 5.1ch + Bi-Amp,
5.1ch + zone, or 5.1ch + Front B
n Selectable zone component monitor, Zone 2
CVBS monitor, and Zone 2 HDMI monitor
n 3 source Zone 3 capability
n IR Flasher In
n RS232C control (AMX/Crestron command)
n C4 certified (IP/232C)
n Assignable DC trigger (+12V, 150mA x 2)
n Firmware Upgradable via Internet
Marantz Audio Advantage
n Pure Direct / Source Direct
n M-DAX (Marantz Dynamic Audio eXpander)
n 192kHz/24-bit Audio DACs
n Transparent binding post speaker terminals
(gold plated)
n DSD to PCM convert playback capability
n Aluminum front panel with trap door and
aluminum knobs

Audio Section
Power amplifier
Rated output:
Front:
125 W + 125 W (8 ohm, 20 Hz – 20 kHz with 0.08 % T.H.D.)
195 W + 195 W (6 ohm, 1 kHz with 10 % T.H.D.)
Center:
125 W (8 ohm, 20 Hz – 20 kHz with 0.08 % T.H.D.)
195 W (6 ohm, 1 kHz with 10 % T.H.D.)
Surround:
125 W + 125 W (8 ohm, 20 Hz – 20 kHz with 0.08 % T.H.D.)
195 W + 195 W (6 ohm, 1 kHz with 10 % T.H.D.)
Surround back:
125 W + 125 W (8 ohm, 20 Hz – 20 kHz with 0.08 % T.H.D.)
195 W + 195 W (6 ohm, 1 kHz with 10 % T.H.D.)
Analog
Input sensitivity/Input impedance: 200 mV/47 k ohm
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT
mode)
S/N: 102 dB (IHF–A weighted, DIRECT mode)
Digital
D/A output: Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input: Format — Digital audio interface

Phono equalizer (PHONO input)
Input sensitivity: 2.5 mV
RIAA deviation: ±1 dB (20 Hz to 20 kHz)
S/N: 74 dB (A weighting, with 5 mV input)
Rated output: 150 mV
Distortion factor: 0.03 % (1 kHz, 3 V)
Video Section
Standard video connectors
Input/output level and impedance: 1 Vp-p, 75 ohm
Frequency response: 5 Hz – 10 MHz 0, –3 dB
Color component video connector
Input/output level and impedance: Y signal — 1 Vp-p, 75 Ωohm
PB / CB signal — 0.7 Vp-p, 75 ohmΩ
PR / CR signal — 0.7 Vp-p, 75 Ωohm
Frequency response: 5 Hz – 60 MHz — 0, –3 dB
Tuner Section
[FM]
(Note: μV at 75 ohm , 0 dBf = 1 x 10–15 W)
Receiving Range:87.5 MHz – 107.9 MHz
Usable Sensitivity: 1.5 μV (14.8 dBf)
S/N: MONO 78 dB (IHF–A weighted, DIRECT mode)
STEREO 68 dB (IHF–A weighted, DIRECT mode)
HD 85 dB

Total harmonic Distortion (at 1 kHz):
MONO 0.1 %
STEREO 0.2 %
HD 0.02%
[AM]
Receiving Range:AM: 530kHz – 1710kHz
Usable Sensitivity: 20 μV
S/N: HD 85 dB
Total harmonic Distortion (at 1 kHz): HD 0.02 %
General
Power supply: AC 120 V, 60 Hz
Power consumption: 670 W
0. 2 W (Standby mode)
0.5 W (CEC standby mode)
2.7W (network standby mode)
Dimensions (W x H x D):
17 21/64” x 7 23/64 ” x 15 63/64”
440 x 187 x 406 mm
Weight: 27 lbs 9oz, 12.5 kg
