SR-7007 Ev Sinema Amfisi
Simplicity and elegance characterize the SR7007. With the blue illuminated and iconic porthole display, plus the drop-down door in all brushed aluminum front panel, the receiver offers both style and comprehensive features, including an Ethernet port, seven HDMI inputs, three HDMI outputs, and playback of the latest hi-definition audio formats. Three audio and video zones, networking, and support for Bluetooth devices deliver the flexibility you need, while proprietary HDAM (Hyper-Dynamic Amplifier Module) audio circuits, Current Feedback Technology, and seven fully-discrete, 125 watt amplifiers provide the crushing dynamics detail retrieval you demand.
125-watt, 7.2-channel AV receiver
delivers exceptional audio quality with elegant style.
Includes an Ethernet port, seven HDMI
inputs, three HDMI outputs, and offers playback of the latest
hi-definition audio formats.
SR7007 Home Theater Receiver
At a
Glance:
-
Classic design and Marantz porthole display with blue illuminated ring, a brushed aluminum front panel with folding door
-
Marantz proprietary technologies for exceptional audio quality
-
7.2-channel AV receiver with 125-watt per channel fully discrete amplifiers
-
Networking capability and Apple's AirPlay technology for streaming audio
-
3D pass-through and 4K video capabilities to enjoy 4K high-resolution video
-
Seven HDMI inputs and three outputs including one discrete zone HDMI output
-
Three-year warranty
Marantz Proprietary Technologies for
Exceptional Sound
The SR7007 features Marantz proprietary HDAM
(Hyper Dynamic Amplifier Module) circuits, Current Feedback
technology along with fully discrete 125-watt amplifiers for all
seven channels to provide exceptional audio quality Marantz customers
demand.
Networking Capabilities and a Built-in
AirPlay Technology
The SR7007 features networking
capabilities that let you stream Internet radio services like Pandora
or SiriusXM as well as more than 12,000 internet radio stations to
your home theater system, or even stream digital music or photos
located on your home computer or play songs from your iTunes library
thanks to built-in AirPlay technology. (SiriusXM subscriptions sold
separately.) Marantz's optional RX-101 adapter (sold separately)
allows you to connect the SR7007 with Bluetooth devices.
Play 3D and 4K High-Resolution Video
The SR7007 includes built-in 3D pass-through technology that enables it to route 3D video signals from a Blu-ray player to your HDTV. As a result, you can enjoy 3D Blu-ray in dynamic surround sound. The receiver also supports the 4K high-resolution video standard, allowing you to play 4K videos on compatible displays and projectors. The receiver supports both 4K pass-through and 4K upscaling technologies.
Audyssey Technology for Optimal
Audio
Built-in Audyssey MultEQ XT technology automatically
calibrates your speakers and equalizes your home theater
system--resulting in clear, balanced sound, even in large or oddly
shaped rooms. Audyssey Dynamic EQ maintains bass, clarity, and
surround sound at low volumes--great for late-night TV
watching--while Audyssey Dynamic Volume automatically controls volume
to deliver the perfect levels for day or night listening. In
addition, the receiver features Audyssey DSX technology that produces
fully immersive surround sound.

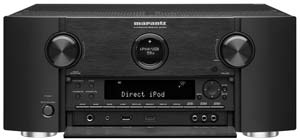

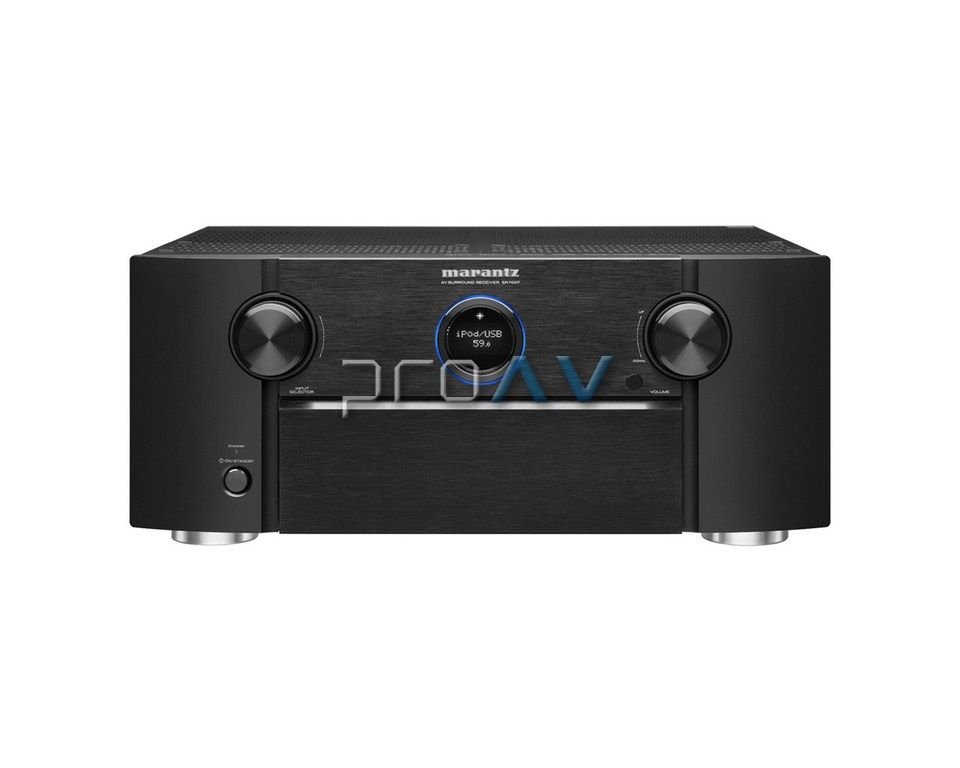

Simple, Elegant, Retro
Design
Complementing the SR7007's black, brushed aluminum finish
is an illuminated porthole design that recalls Marantz's classic
stereo components. A fold-up door conceals the buttons and inputs on
the front of the receiver for a more streamlined look.
Intuitive Graphic User Interface and
free Smartphone Apps
New improved and intuitive on-screen "Setup
Assistant" simplifies the installation process. . In addition,
Marantz offers an app called Marantz Remote app that allows you to
operate the SR7007 wirelessly from your iPhone, iPad, or
Android-based device. With Marantz RC-5 control capability, you can
even control legacy Marantz products connected to the SR7007 from the
app.

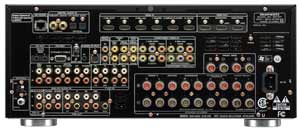

Versatile Connectivity for All of Your
Needs
Along with an Ethernet port, the SR7007 comes equipped with
a built-in HD radio tuner, seven HDMI inputs including one on the
front panel and three HDMI outputs (two parallel and one discrete),
so you can enjoy two different HDMI sources in two different rooms at
the same time. A USB port on the front panel lets you plug in your
iPod, iPhone, or USB flash drive. In addition, the receiver employs
7.2 channel preamp outputs, 7.1 channel external inputs, 3 component
video inputs and one output (main/zone assignable) and phono input.
All rear panel terminals are gold-plated.
Stream Music Wirelessly with
AirPlay
For users with Spotify Premium accounts, the SR7007 offers
direct access to more than 18 million music tracks. Spotify streams
music content with a high-quality 320 Kbps bitrate, offering
high-fidelity listening through your home-audio system.
Product and Warranty Information
This
receiver measures 7-2/5 by 17-3/10 by 16 inches (H x W x D) and
weighs 28-7/10 pounds.
The SR7007 is backed by a three-year warranty, subject to the full warranty terms and conditions.
What's in the Box
SR7007 Home
Theater Receiver, remote control with batteries, AM and FM antennas,
power cable, quick setup guide, owner's manual on CD-R, and setup
microphone.
Features
MULTI CHANNEL/SURROUND
Number of Channels |
7.2 Channels |
Audyssey |
Audyssey MultEQXT, DSX, Dynamic EQ, Dynamic Volume |
DTS |
DTS HD Master Audio, HD High Resolution, ES Discrete/Matrix, Neo:6, 96/24 |
Dolby |
Dolby TrueHD, Digital, Digital Plus, Pro Logic IIz, EX |
DSD(SA-CD)/NEURAL |
Yes / - |
SRS |
- |
SOUND ENHANCEMENTS
Current Feedback Topology |
Preamplifier Stage |
Discrete Amplification |
Yes |
Power Transformer |
EI Core |
D/A Conversion |
192kHz/24-Bit |
Digital Signal Processing |
Analog Devices ADSP21487 |
Video Off (Pure Direct) |
Yes |
Source Direct |
Yes |
Chassis |
Full Size |
Variable X-over |
Yes |
Video Up-conversion |
Yes (Analog Composite/Component Video to HDMI) |
Auto Calibration by MIC |
Audyssey MultEQXT (upgradeable to Pro by Installer) |
Satellite Radio Ready |
- |
AM/FM tuner |
FM Tuner Only |
Bass Redirection |
Yes |
Lip-sync (digital audio delay) |
Yes |
Software Upgradable |
Yes (via Internet) |
IN/OUTPUTS
VIDEO
HDMI In |
7 (including front HDMI input) |
Component In |
3 |
S-Video In |
- |
Composite In |
4 |
HDMI Out |
3 (2 x Simultaneous, 1 x Zone 2) |
Component Out |
1 |
S-Video Out |
- |
Composite Out |
2 |
AUDIO
Analog L&R In |
6 |
Analog L&R Out |
1 |
Digital Optical In |
2 |
Digital Coaxial In |
2 |
Digital Optical Out |
- |
Digital Coaxial Out |
- |
Other |
|
OTHER
Pre-Amplifier Out |
7.2 |
Main Amplifier In |
- |
Multi-Channel In |
7.1 |
Multi-Room Audio Out |
Zone 2 & Zone 3 Preout (Variable) |
Multi-Room Video Out |
Zone 2 HDMI, Component (Assignable) and Composite |
Multi-Room Speaker Out |
Yes (Selectable) |
Speaker A/B |
- |
Networking |
AirPlay, DLNA 1.5 certified Audio/Photo Streaming, Internet Radio, Streaming service capability (Pandora/SiriusXM/flickr and Spotify) |
SetUp Wizard |
Yes (Setup Assistant) |
External control |
RS-232C / IP |
DC Triggers |
2 |
D-Bus Remote (RC-5) In/Out |
Yes |
Flasher In/IR Receiver In/Emitter out |
1 / - / - |
Front Panel A/V Inputs |
Front HDMI, USB and A/V inputs |
Headphone Out |
1 |
AC Outlets (Switched/Unswitched) |
- / - |
Specifications
AUDIO SECTION
Power Output |
125W (20Hz - 20kHz, 0.08% THD, 2ch driven) |
S/N Ratio |
100dB |
Freq. Response (Analog In) |
10Hz - 100kHz (+/- 3 dB) |
Freq. Response (Dig In) |
- |
TUNER SECTION FM
Frequency Range |
87.5 - 107.9MHz |
S/N Ratio (Mono/Stereo) |
HD: 85dB |
TUNER SECTION AM
Frequency Range |
530 - 1710kHz |
S/N Ratio |
- |
VIDEO SECTION
Video Freq. Response (Component) |
5Hz - 60MHz |
Video Freq. Response (Composit, S-Video) |
5Hz - 10MHz |
Signal to Noise |
General
Color |
Black |
Front Panel |
Aluminum / Glass-resinforced resin |
Remote Control |
Backlit, LCD, Learning, Pre-code System Remote Controller |
Power Requirement |
AC120V 60Hz |
Power Consumption |
670W (Standby 0.2W) |
Dimensions W x H x D (Inchs) |
17.32" x 7.36" x 15.98" |
Weight (lbs) |
28.66 lbs |
