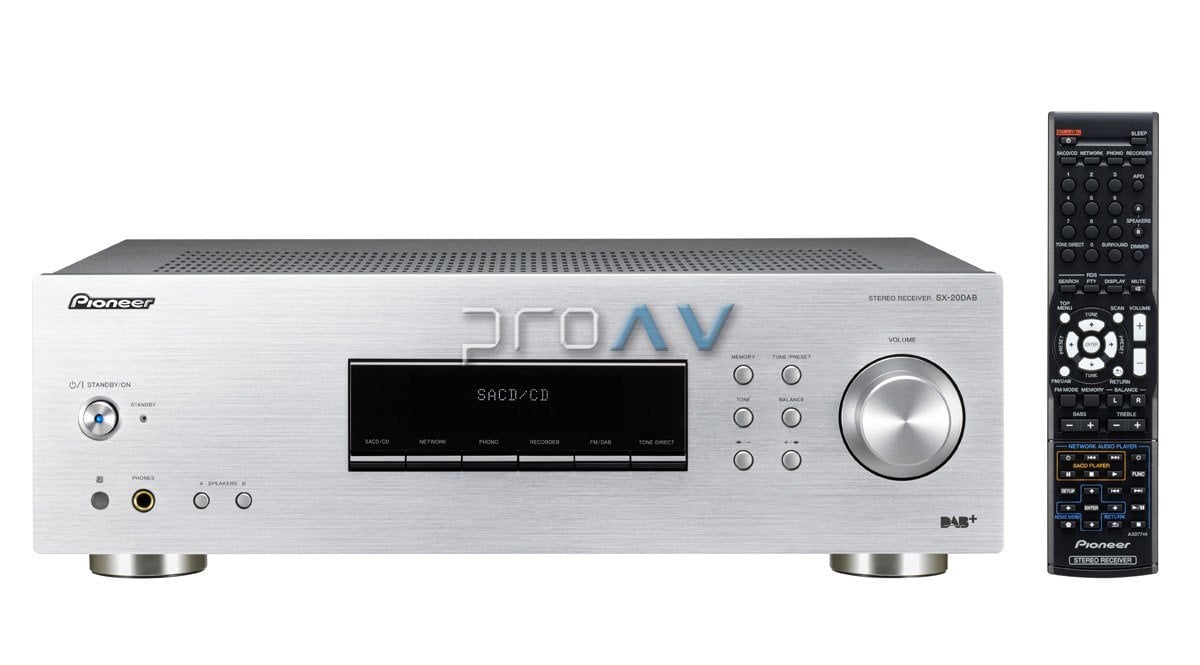

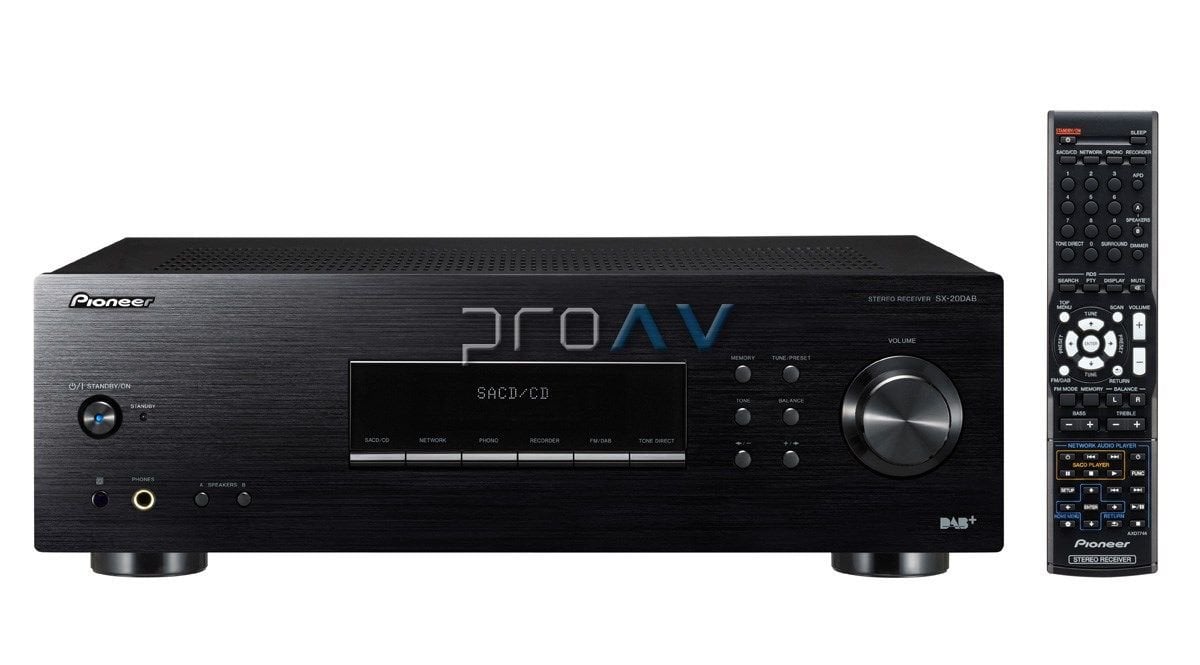

SX-20 DAB Stereo Receiver Amfi (Dab+ UKW/MW Tuner ve Phono Inputlu)

SX-20DAB

Pioneer'in direk enerji kavramı, kısa sinyal yolları ve optimize edilmiş devreler ile yüksek kaliteli stereo için kanal başına 100 watt güç üretimini garanti eder.

Radio in best digital quality

The high-performance, discreet amplifiers with 100 watts per channel and the Pioneer direct energy concept with short signal paths and optimised circuits guarantee high-quality stereo reproduction. Thanks to the two connection terminals for loudspeakers it is possible to operate two box pairs (A + B), while bi-wiring is also possible. In addition to a UKW tuner with RDS and storage space for 30 stations, the SX-20DAB also has a DAB/DAB+ receiver for crystal clear digital radio. Its easy-to-read display supplies the information required for listening pleasure such as, for example, the broadcaster’s name and the current song title

Audio Features

• Rated Power Output: 100 W + 100 W (20 Hz-20 kHz, THD 1 %, 8 ohms)
• Frequency Response: SACD/CD, NETWORK, RECORDER: 5 Hz-100 kHz, 0 dB/-3 dB
• RIAA Deviation:
  - PHONO (MM): 20 Hz-20 kHz, ±0.5 dB
• Tone Control:
  - Bass: ±14 dB (100 Hz)
  - Treble: ±14 dB (10 kHz)
• Signal-to-Noise Ratio (IHF SHORTED, A-NETWORK):
  - SACD/CD, NETWORK, RECORDER: 100 dB
  - PHONO (MM): 80 dB
• Total Harmonic Distortion: SACD/CD, NETWORK, RECORDER: 0.02 % or less (1 kHz, 50 W, 8 ohms)
• Tuner Frequency Range:
  - (FM): 87.5-108 MHz
  - (DAB): 174.928-239.200 MHz
• Antenna Input (FM/DAB): 75 ohms unbalanced
• Analogue Discrete 2ch Amplifier
• DAB/DAB+ Tuner
• FM Tuner (30 Presets) with RDS Function
• Phono Input (MM)
• Speaker A/B Selector
• Two-Digit FL Display

Operating Features

• Sleep Timer
• Auto Power Down

Connections

• Analogue Audio Input: 4 (Phono MM, SACD/CD, NETWORK, RECORDER)
• Analogue Audio Output: 1 (REC OUT)
• FM/DAB Tuner Antenna
• Large Speaker A/B Terminals
• Speaker Impedance: 4-16 ohms (A or B), 8-16 ohms (A+B)
• Phones Output
• AC Inlet

Other Features

• Aluminium Front Panel

Dimensions & Weight

• Dimensions (W x H x D): 435 x 142.5 x 364 mm
• Weight (without Package): 8.3 kg
