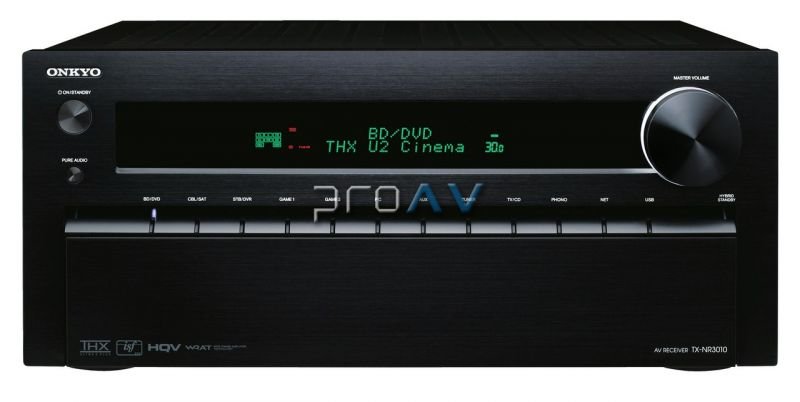

TX-NR3010 Ev Sinema Amfisi
9.2-Channel Network A/V Receiver
Thrill to the Power of Nine-Channel Entertainment
The ultimate hub for house-wide entertainment, the TX-NR3010 can drive audio in three rooms, output high-resolution video on two displays, and stream audio via DLNA—all controlled by your iPhone or Android-powered phone. With a total of 11 HDMI® ports (including MHL™ for smart phone) and 11.4-channel pre-outs, the home cinema setup possibilities are limited only by your imagination. The receiver boasts Audyssey MultEQ® XT32 room correction and three incredible sound expansion systems—DTS Neo:X™, Audyssey DSX®, and Dolby® Pro Logic® IIz—while a combination of Qdeo™, HQV®, and ISF technology upscales and calibrates video sources to 4K resolution. As an audiophile-spec component, the TX-NR3010 features a massive main transformer, additional transformers for audio and video processing, and separated pre-amp and power amp blocks. Audio signals are jitter-cleaned and converted to analog by 192 kHz/24-bit DACs and VLSC™ circuits before passing through the Three-Stage Inverted Darlington Circuitry. The resulting sound quality is awe-inspiring—and with differential DAC mode and digital crossover processing, bi-amping your front monitors results in even higher performance. Easily set up and controlled using the HDMI-enabled user interface, this THX® Ultra2 Plus™-certified receiver is waiting to reignite your passion for music and cinema.
Technical Details
FeaturesADVANCED FEATURES
- THX® Ultra2 Plus™ Certified
- Multi-Transformer for Audio, Video, and Digital Processing
- VLSC™ (Vector Linear Shaping Circuitry)
- High-Quality HQV® Vida™ VHD1900 Video Processor
- HDMI® Video Upscaling to 4K with Qdeo™ Technology by Marvell
- ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance
- DTS Neo:X™, Audyssey DSX®, and Dolby® Pro Logic® IIz for Expanded Surround Channels
- MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
- Input Source Preview with InstaPrevue™ Technology
- Audyssey MultEQ® XT32 for Room Acoustic Correction
- Internet Radio and Cloud Music Streaming Service Connectivity (Last.fm, MP3tunes, Spotify, AUPEO!, Simfy, vTuner)*1
- Supports Onkyo Remote Apps for iPod touch/iPhone*2 and Android Phone*3
- Zone 2 HDMI Output for HD Video in a Second Room
- 11.4 Multichannel Pre-Outs
- Digital Crossover Processing Network to Cancel Crossover Interference
- Machined Solid Brass, 19 mm-Pitch Audio Inputs (TV/CD and Phono)
*2 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later. *3 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
- 200 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC); 250 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
- Isolated Power-Amp and Pre-Amp Block
- WRAT (Wide Range Amplifier Technology)
- Three-Stage Inverted Darlington Circuitry
- H.C.P.S. (High Current Power Supply) Massive High Power Transformer
- Discrete Output Stage Circuitry
- Optimum Gain Volume Circuitry
- PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
- Bi-Amping Capability
- HDMI Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
- 7 x TI Burr-Brown 192 kHz/24-Bit DACs
- Differential DAC Mode to Double Processing Power for up to 5.1 Channels
- Advanced 32-Bit Processing DSP Chip
- 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
- Advanced Music Optimizer for Compressed Digital Music Files
- 9 HDMI Inputs (1 Front/8 Rear) and 2 Outputs
- 2 USB Ports (1 Front/1 Rear)
- Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
- Compatible with Optional UWF-1 Wireless LAN Adapter and UBT-1 Bluetooth USB Adapter
- Playback of Audio Files Through Local Network
- (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD, LPCM)
- 2 Component Video Inputs and 1 Output
- 5 Composite Video Inputs and 1 Output
- 6 Digital Audio Inputs (3 Optical and 3 Coaxial)
- 7 Analog Audio Inputs and 1 Phono Input
- Powered Zone 2/3 and Zone 2/3 Line-Outs for Distributed Audio Playback in Multiple Rooms
- Zone 2 Video Output (Composite)
- Analog RGB Video Input (D-sub, 15 pin) for PC
- RS-232 Port, IR Input/Output, and 12 V Trigger Outs (Zone 2/3)
- Audyssey Dynamic EQ® and Audyssey Dynamic Volume®
- Dolby® Volume for Reference-Quality Listening at Any Volume
- Overlaid On-Screen Display (OSD) with Quick Set-Up and Home Menu
- Hybrid Standby to Reduce Power Consumption
- Independent Crossover Adjustment for Each Channel
- (40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)
- A/V Sync Control (Up to 800 ms at 48 kHz)
- Tone Control (Bass/Treble) for All Channels (except Zone 2/3)
- RDS (PS/RT/PTY/TP) (European Model only)
- Bi-Directional, Preprogrammed, and Customizable RI Remote Control with Macro Presets for Four Activities
