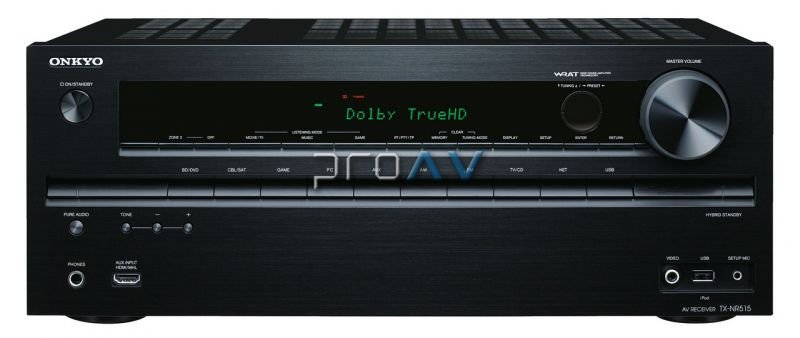

TX-NR515 7.2-Channel Network A/V Receiver

Feature-Loaded Network Receiver Offers Maximum Value for Money
The TX-NR515 receiver checks every box on your home cinema wishlist. In fact, we’ve over-delivered. Our acclaimed WRAT amplifier
delivers room-filling sound through 7.2 channels with Dolby® Pro Logic® IIz expansion. Audyssey’s 2EQ, Dynamic Volume®, and
Dynamic EQ® systems are standard. A class-leading eight HDMI® inputs handle Dolby® TrueHD and Dolby DTS-HD Master Audio™,
the latest games, and 3D movies; the front-panel HDMI Mobile High-Definition Link displays 1080p smartphone content; there are two
HDMI outputs for connection of a TV and a movie projector; and Marvell’s Qdeo™ technology upscales video to an astonishing 4K
(4096 x 2160 pixels). Want music? There’s home networking for playback of your multi-format PC-based library, and full integration of
cloud streaming and internet radio services. You can connect your iPod, iPhone, or flash drive via USB and select tracks with the supplied
remote controller. Input selection with InstaPrevue™ technology, overlaid OSD, multi-zone capability, and system control using iPod
touch/iPhone and Android phone are all included. With the TX-NR515, the only thing missing is a hefty price tag.

ADVANCED FEATURES
• HDMI® Support for 3D, Audio Return Channel,
DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD,
DTS-HD Master Audio™, DVD-Audio, Super Audio
CD, Multichannel PCM, and CEC
• HDMI Video Upscaling to 4K with Qdeo™ Technology
by Marvell
• MHL™ (Mobile High-Definition Link) for Smart Phone
Content on HDTV
• Direct Digital Connection of iPod/iPhone via Front-
Panel USB Port
• Internet Radio and Cloud Music Streaming Service
Connectivity (Last.fm, MP3tunes, Spotify, AUPEO!,
Simfy, vTuner)*1
• Picture-in-Picture Input Source Preview with
InstaPrevue™ Technology
• Playback of Audio Files Through Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis,
AAC, LPCM)
• Supports Onkyo Remote Apps for iPod touch/
iPhone*2 and Android Phone*3
• Dolby® Pro Logic® IIz for Expanded Surround
Channels
• Audyssey 2EQ for Room Acoustic Correction
• Audyssey Dynamic EQ® for Loudness Correction
• Audyssey Dynamic Volume® to Maintain Optimal
Listening Level and Dynamic Range
• Overlaid On-Screen Display (OSD) with Quick
Set-Up and Home Menu
• Powered Zone 2 and Zone 2 Line-Out for
Distributed Audio Playback in Another Room
• Hybrid Standby Function to Reduce Power
Consumption
*1 Availability of services depends on region. Some services may require a
firmware update. *2 Compatible with iPod touch (3rd generation or later)
and iPhone 3GS or later. All models require iOS 4.2 or later. *3 Requires
Android OS 2.1 or later.
AMPLIFIER FEATURES
• 130 W/Ch
(6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
160 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
PROCESSING FEATURES
• TI Burr-Brown 192 kHz/24-Bit DACs for All Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action,
and RPG
• Advanced Music Optimizer for Compressed Digital
Music Files
• Theater-Dimensional Virtual Surround Function
• CinemaFILTER™
• Direct Mode and Pure Audio Mode

CONNECTION FEATURES
• 8 HDMI Inputs (1 Front/7 Rear) and 2 Outputs
• 2 USB Ports (1 Front/1 Rear)
• Mass Storage Class USB Memory Playback Capability
• Compatible with Optional UWF-1 Wireless LAN
Adapter via USB
• HDTV-Capable (720p/1080i) Component Video
Switching (1 Input and 1 Output)
• 5 Composite Video Inputs (1 Front/4 Rear) and
1 Output
• 4 Digital Audio Inputs (2 Optical and 2 Coaxial)
• 5 Analog Audio Inputs
• 2 Parallel Subwoofer Pre-Outs
• Color-Coded, Banana Plug-Compatible Speaker Posts
(Except Zone 2)
OTHER FEATURES
• Crossover Adjustment (40/50/60/70/80/90/100/120/
150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)
• Tone Control (Bass/Treble) for Front L/R Channels
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• RDS (PS/RT/PTY/TP) (European Model Only)
• 40 FM/AM Random Presets
• Certified with Windows® 7 and DLNA Version 1.5
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive over HDMI) for System
Control
• Preprogrammed RI (Remote Interactive) Remote
Control

Cloud-Based Audio Streaming and Internet Radio
Over the Home Network
Connecting to the internet and your home PC via a local
network, the TX-NR515 makes streaming audio and
internet radio easy. You can also play MP3, WMA, WMA
Lossless, FLAC, WAV, Ogg Vorbis, AAC, and LPCM audio
files stored on your PC through your Onkyo system with
stunning power and fidelity. The receiver offers access to
internet radio channels from Last.fm and vTuner, plus cloudbased
music streaming from Spotify, AUPEO!, Simfy, and
MP3tunes*. Internet connectivity has the added benefit of
making firmware updates simpler than ever.
*Availability of services depends on region. Some services may require a firmware
update.
Mobile High-Definition Link for Smart Phone
Movies and Photos on HDTV
The TX-NR515’s front-panel HDMI port is designed for the
connection of mobile phones and other portable electronic
devices using the new MHL™ standard. MHL allows you to
display full 1080p video and still images on your HDTV with
up to 7.1 channels of surround sound. Use the receiver’s
remote to control playback from your phone as it receives a
handy recharge.
InstaPrevue™ Technology Makes Switching
Sources Easy
The TX-NR515 incorporates InstaPrevue visual port
management technology, making input source selection
much easier. InstaPrevue technology provides a live
video thumbnail of the available content on your devices
connected via HDMI. You no longer have to remember that
your gaming console is connected to Port 3, or your Blu-ray
player to Port 1, for example—you can see what’s playing
and choose accordingly.
Onkyo Remote Apps for iPod touch/iPhone and
Android Phone
The Onkyo Remote App 2 for iPod touch/iPhone*1 and
Onkyo Remote for Android phone*2 both provide an
intuitive way to operate Onkyo network A/V receivers.
Control input sources, adjust settings, and play audio stored
in a smartphone wirelessly (Android phone only) using the
application’s interactive graphical display. The two Remote
Apps are available separately as free downloads.
*1 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All
models require iOS 4.2 or later. *2 Requires Android OS 2.1 or later.
Save Power with Hybrid Standby
Hybrid Standby provides ‘HDMI through’ functionality while
the receiver sleeps, so you don’t have to fully power up to
watch a Blu-ray or play a game using just your TV’s sound.
The receiver also maintains a local network connection
when on Hybrid Standby mode, so you can switch the unit
on at any time using the Onkyo Remote Apps for iPod
touch/iPhone and Android phone.

4K Video Upscaling and Processing via Qdeo™
Technology
The TX-NR515 offers full 4K (4096 x 2160) upscaling of
standard video sources such as 480i/p, 720p, and
1080i/p. Interlaced-to-progressive conversion and scaling are
performed by high-quality Qdeo technology from Marvell.
Qdeo is a versatile video processor that uses algorithms
designed to erase video noise and artifacts such as jaggies
and feathering. Played back on a compatible wide-screen
display, your Blu-ray Discs and DVDs will look more detailed
and cinematic than ever.
Note: 4K video playback requires a 4K-compatible TV. HDMI pass-through of 4K
content from source devices is not supported.
WRAT (Wide Range Amplifier Technology)
Delivers Higher Fidelity
Onkyo’s WRAT concept was developed to improve
signal-to-noise ratios, and enhance the fidelity of amplified
audio. The technologies work to reduce noise across
the frequency range, guaranteeing a clear, well-balanced
performance. It does this by employing a low negativefeedback
amplifier design; using "closed” ground-loop
circuitry to cancel noise from individual circuits; and by
ensuring high instantaneous-current capability to cancel
reflex energy and impedance fluctuations from the speakers.
Overlaid On-Screen Display with Quick
Set-Up Menu
The receiver’s HDMI-linked On-Screen Display (OSD)
makes initial set-up and in-program calibration very easy.
The ‘Q’ button on your remote overlays a ‘Quick Setup’
menu on the program you’re watching. This handy shortcut
includes the most frequently used settings, and helps
you optimize your home cinema’s performance with the
minimum of disruption. The ‘Home’ button accesses standard
set-up menus for more detailed adjustment.
Dolby® Pro Logic® IIz for a More Enveloping
Sound Field
Pro Logic IIz creates a surround-sound experience from any
movie or music source—even a stereo one. Pro Logic IIz
also enables you to incorporate two "front height” speakers
that carry ambient audio effects for games and movies.
Audyssey Technologies Optimize Home Cinema
Performance
The TX-NR515 comes equipped with three soundenhancing
Audyssey technologies.
(1) Audyssey 2EQ tailors multi-channel audio for your home theater
speaker set-up by measuring three room positions and applying a
resolution filter to the satellite speakers to correct for room acoustics.
(2) Audyssey Dynamic EQ® maintains a consistent bass response,
tonal balance, and surround-sound effect at different volume levels, so
you can enjoy the natural dynamics of your content regardless of the
volume.
(3) Audyssey Dynamic Volume® automatically compensates for
volume fluctuations in different audio content—for example, during
commercial breaks—while optimizing the dynamic range.
