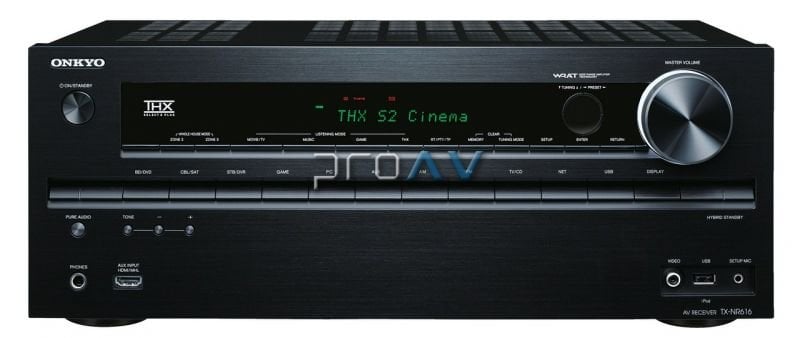

TX-NR616 7.2-Channel Network A/V Receiver

Escape into THX®-Certified Surround Sound
Movie, music, and gaming enthusiasts can now step up to realistic THX® Select2 Plus™-certified surround sound for less money down
with the new TX-NR616 Network A/V Receiver. Onkyo’s acclaimed WRAT amplifier with three-stage inverted Darlington circuitry
delivers cinema-like power in the home. With Audyssey DSX® expansion, you can add extra Front Height channels for more enveloping
surround sound, while 2EQ® acoustic correction guarantees optimal performance in any room. Eight HDMI® inputs handle
3D content, HD audio, and video display upscaled to 4K with onboard Qdeo™ technology. The MHL/HDMI input lets you connect a
smart phone for smooth 1080p playback on your TV. Wireless home networking, meanwhile, opens up an exciting world of internet radio
and cloud-based music streaming. You can even enjoy your multi-format PC-based music collection over Wi-Fi with an optional USB
adapter. Intuitive system control—including audio distribution in multiple rooms—is provided by Onkyo’s remote apps for iPod touch/
iPhone and Android phone, or press the Quick Set-Up button on the supplied remote for instant mid-program adjustments. Visual input
selection with InstaPrevue™ technology rounds out what is an exceptionally refined and affordable THX receiver.

ADVANCED FEATURES
• THX® Select2 Plus™ Certified
• HDMI® Support for 3D, Audio Return Channel,
DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD,
DTS-HD Master Audio™, DVD-Audio, Super Audio
CD, Multichannel PCM, and CEC
• Three-Stage Inverted Darlington Circuitry
• HDMI Video Upscaling to 4K with Qdeo™ Technology
by Marvell
• MHL (Mobile High-Definition Link) for Smart Phone
Content on HDTV
• Direct Digital Connection of iPod/iPhone via Front-
Panel USB Port
• Picture-in-Picture Input Source Preview with
InstaPrevue™ Technology
• Internet Radio and Cloud Music Streaming Service
Connectivity (Last.fm, MP3tunes, Spotify, AUPEO!,
Simfy, vTuner)*1
• Playback of Audio Files Through Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis,
AAC, LPCM)
• Supports Onkyo Remote Apps for iPod touch/
iPhone*2 and Android Phone*3
• Audyssey DSX® and Dolby® Pro Logic® IIz for
Expanded Surround Channels
• Overlaid On-Screen Display (OSD) with Quick
Set-Up and Home Menu
• Powered Zone 2 and Zone 2/3 Line-Outs for
Distributed Audio Playback in Multiple Rooms
*1 Availability of services depends on region. Some services may require a
firmware update. *2 Compatible with iPod touch (3rd generation or later)
and iPhone 3GS or later. All models require iOS 4.2 or later. *3 Requires
Android OS 2.1 or later.

AMPLIFIER FEATURES
• 160 W/Ch
(6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
175 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
PROCESSING FEATURES
• TI Burr-Brown 192 kHz/24-Bit DACs for All Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action,
and RPG
• Advanced Music Optimizer for Compressed Digital
Music Files
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode
CONNECTION FEATURES
• 8 HDMI Inputs (1 Front/7 Rear) and 2 Outputs
• 2 USB Ports (1 Front/1 Rear)
• Mass Storage Class USB Memory Playback Capability
• Compatible with Optional UWF-1 Wireless LAN
Adapter via USB
• HDTV-Capable (720p/1080i) Component Video
Switching (1 Input and 1 Output)

• 5 Composite Video Inputs (1 Front/4 Rear) and
1 Output
• 4 Digital Audio Inputs (2 Optical and 2 Coaxial)
• 6 Analog Audio Inputs
• 2 Parallel Subwoofer Pre-Outs
• Color-Coded, Banana Plug-Compatible Speaker Posts
(Except Zone 2)
OTHER FEATURES
• Audyssey 2EQ® for Room Acoustic Correction
• Audyssey Dynamic EQ® for Loudness Correction
• Audyssey Dynamic Volume® to Maintain Optimal
Listening Level and Dynamic Range
• Hybrid Standby Function to Reduce Power
Consumption
• Independent Crossover Adjustment for Each Channel
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)
• Tone Control (Bass/Treble) for Front L/R Channels
• Light Dimming (Display: Normal/Dim/Dimmer;
Volume Knob LED: On/Off)*
• RDS (PS/RT/PTY/TP) (European Model only)
• 40 FM/AM Random Presets
• Certified with Windows® 7 and DLNA Version 1.5
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive over HDMI) for System
Control
• Preprogrammed RI (Remote Interactive) Remote
Control
*Note: Volume knob LED is always off when display is dimmed.

Wireless Cloud Streaming, Internet Radio, and
PC-Based Music
Connecting to your home network wirelessly via a
UWF-1 Wireless LAN Adapter (sold separately), or using
a standard LAN cable, the TX-NR616 makes streaming
audio and internet radio easy. You can also play MP3, WMA,
WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, and LPCM
audio files stored on your PC through your Onkyo home
cinema system with stunning power and fidelity. The receiver
offers easy access to internet radio channels from Last.fm
and vTuner, plus cloud-based music streaming from Spotify,
AUPEO!, Simfy, and MP3tunes*.
*Availability of services depends on region. Some services may require a firmware
update.
Mobile High-Definition Link for Smart Phone
Movies and Photos on HDTV
The TX-NR616’s front-panel HDMI port is designed for the
connection of mobile phones and other portable electronic
devices using the new MHL standard. MHL allows you to
display full 1080p video and still images on your HDTV with
up to 7.1 channels of surround sound. Use the receiver’s
remote to control playback from your phone as it receives a
handy recharge.
InstaPrevue™ Technology Makes Switching
Sources Easy
The TX-NR616 incorporates InstaPrevue visual port
management technology, making input source selection
much easier. InstaPrevue technology provides a live
video thumbnail of the available content on your devices
connected via HDMI. You no longer have to remember that
your gaming console is connected to Port 3, or your Blu-ray
player to Port 1, for example—you can see what’s playing
and choose accordingly.
THX® Select2 Plus™ Certified
THX Select2 Plus certification is specified for rooms where
the screen-to-seat viewing distance is three to four meters
and the room volume is around 56 cubic meters. To achieve
THX Select2 Plus certification, the TX-NR616 had to meet
the world’s most demanding standards for home cinema
audio quality and performance, and play at reference volume
levels with minimal distortion.
4K Video Upscaling and Processing via Qdeo™
Technology
The TX-NR616 offers full 4K (4096 x 2160) upscaling of
standard video sources such as 480i/p, 720p, and
1080i/p. Interlaced-to-progressive conversion and scaling are
performed by high-quality Qdeo technology from Marvell.
Qdeo is a versatile video processor that uses algorithms
designed to erase video noise and artifacts such as jaggies
and feathering. Played back on a compatible wide-screen
display, your Blu-ray Discs and DVDs will look more detailed
and cinematic than ever.
Note: 4K video playback requires a 4K-compatible TV. HDMI pass-through of 4K
content from source devices is not supported. 4K upscaling of analog video is only
available at 480i.

Onkyo Remote Apps for iPod touch/iPhone and
Android Phone
The Onkyo Remote App 2 for iPod touch/iPhone*1 and
Onkyo Remote for Android phone*2 both provide an
intuitive way to operate Onkyo network A/V receivers.
Control input sources, adjust settings, and play audio stored
in a smartphone wirelessly (Android phone only) using the
application’s interactive graphical display. The two Remote
Apps are available separately as free downloads.
*1 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All
models require iOS 4.2 or later. *2 Requires Android OS 2.1 or later.
Innovative Design and Premium Build Deliver
Spectacular Sound
The TX-NR616 incorporates three-stage inverted
Darlington circuitry, a high-quality enhancement to Onkyo’s
proven WRAT (Wide Range Amplifier Technology). The
circuit design ensures low negative feedback for reduced
distortion and improved handling of speaker impedance
fluctuations. Quality circuitry dovetails with a heavy-duty
power supply to deliver instantaneous current in response
to signal gains. The result is clear, effortless sound under
heavy loads. Furthermore, the TX-NR616 features separate
electronic components at the output stage—there are no
cheap shortcuts to THX® sound.
Overlaid On-Screen Display with Quick
Set-Up Menu
The receiver’s HDMI-linked On-Screen Display (OSD)
makes initial set-up and in-program calibration very easy.
The ‘Q’ button on your remote overlays a ‘Quick Setup’
menu on the program you’re watching. This handy shortcut
includes the most frequently used settings, and helps
you optimize your home cinema’s performance with the
minimum of disruption. The ‘Home’ button accesses standard
set-up menus for more detailed adjustment.
Direct Digital iPod/iPhone Connection for Cleaner
Sound
The receiver’s front-panel USB port lets you play MP3 and
AAC stored on an iPod/iPhone, and MP3, WMA, AAC, and
FLAC audio files stored on a flash-memory device using the
system’s own remote for track selection and playback. Your
music will also sound much cleaner and clearer, as the audio
signal is transported in digital form (rather than analog) via
the direct digital connection.
Audyssey DSX® and Dolby® Pro Logic® IIz for
Three-Dimensional Surround Sound
The TX-NR616 incorporates surround-sound technologies
from Audyssey and Dolby to offer greater flexibility in the
setup of your home cinema. Audyssey DSX can expand
5.1-channel audio soundtracks to incorporate additional
Front Height channels, while the Dolby system also adds
two Height channels and stereo source expansion. A sevenchannel
set-up provides a more detailed, realistic, and threedimensional
soundtrack, with the extra channels carrying
subtle directional and ambient effects.
