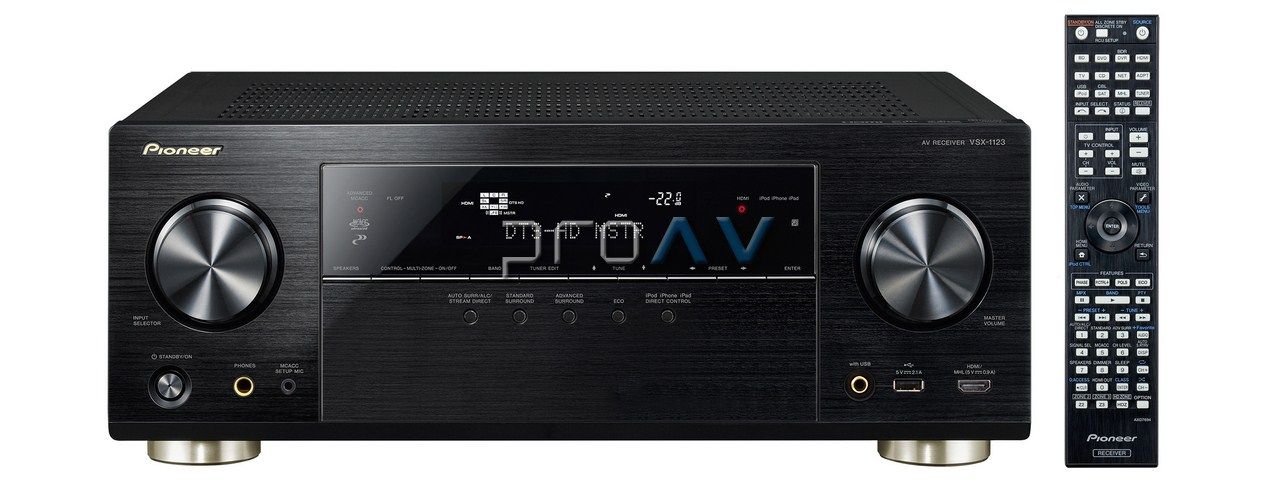

VSX-1123 Ev Sinema Amfisi

Impressive audio and video amplification with low power consumption.

With 7.2 channel surround sound in HD and 4K Ultra High definition upscaling, watching a film becomes an unforgettable experience. 8 HDMI inputs, of which one MHL compatible, let you connect a multitude of devices. For playback in other rooms the VSX-1123-K offers HDZone, a Zone 2 HDMI out for routing either the same signal as the main zone or a separate source to a second zone via HDMI.

Aside from a digital connection with your iPod, iPhone or iPad, you get easy-to-operate worldwide internet radio (vTuner) and network streaming via DLNA or Apple AirPlay when you connect via LAN (optional adapter for wireless LAN available). Enjoy high-resolution music file playback such as WAV, FLAC, AIFF and Apple Lossless via LAN or USB. WAV, FLAC, AIFF and DSD (USB only) in resolutions up to 192kHz/24-bit are supported. The VSX-1123 also offers playback of audio files stored in the Direct Streaming Digital (DSD) format through its front USB.

Via the built-in ECO Mode you can save energy without compromising on sound and video performance. Compatible (free) smartphone/tablet apps include the advanced remote control app iControlAV2013.

• Output Power per Channel150W

• Impedance at Output Level6Ω

• Number of Channels7

• Input Connections• 7 x HDMI
  • 1 x MHL HDMI (Front)
  • 4 x Composite
  • 1 x Component (Assignable)
  • 1 x Digital Coaxial (Assignable)
  • 1 x Digital Optical (Assignable)
  • 1 x USB 2.0 host (iPod/iPhone/iPad Digital Audio, USB drive)
  • 1 x Ethernet
  • 1 x Bluetooth adapter port for AS-BT200
  • 1 x rear USB charge port for AS-WL300 Wireless Converter

• Output Connections• 2 x HDMI (selectable for MAIN ZONE/HDZONE)
  • 1 x Monitor Composite
  • 2 x Composite
  • 2x preout Subwoofer
  • 7x speaker out
  • 1 x Phones out


• File PlaybackVia LAN/USB: MP3, WAV, AAC, WMA, FLAC, AIFF, Apple Lossless, DSD (USB only)
  192 kHz/24-Bit Audio playback: WAV, FLAC, AIFF

• MHL Terminal for Android Smartphones

• HD Audio FormaftsDolby TrueHD, DTS-HD Master Audio

• Audio Return Channel

• Stand-by Pass Through

• 4K Pass Through

• 4K Upscaling

• Control with HDMI (+)

• On-Screen Display (GUI)via HDMI only in English, French, Italian, German, Spanish, Dutch and Russian

• Firmware updates (via Internet or USB)

• AVNavigator

• Internet Radio

• vTuner

• DLNA Certified (+) (v1.5)

• Windows 7 Certified

• Windows 8 Certified

• Remote ControlGlow-key, learning remote control

• Eco Mode

• Digital Signal ProcessorTexas Instruments Aureus(TM) TMS320DA808

• D/A Converter192 kHz / 24-bit

• A/D Converter96 kHz / 24-bit

• Dimensions (W x H x D)435 x 168 x 362,5  mm

• Weight9.8 kg
