VSX 1131 Ev Sinema Amfisi

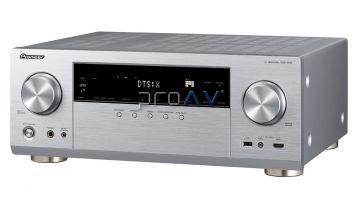

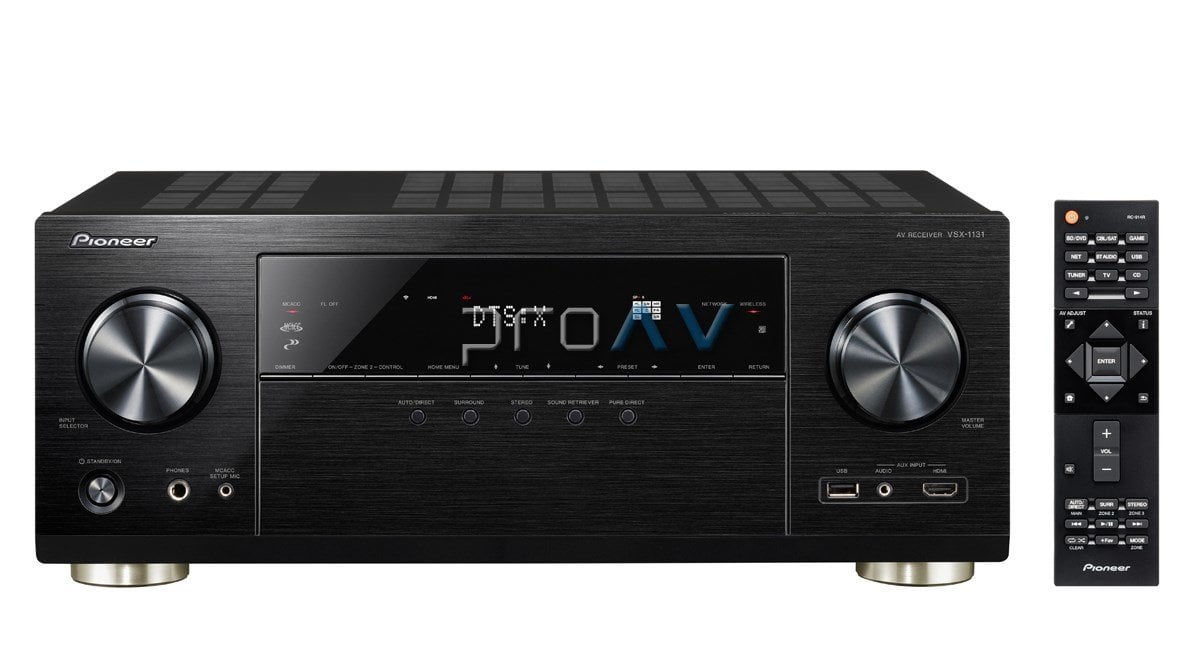

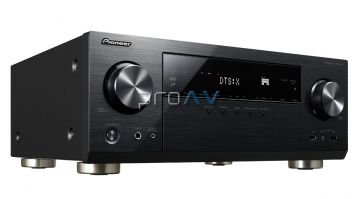

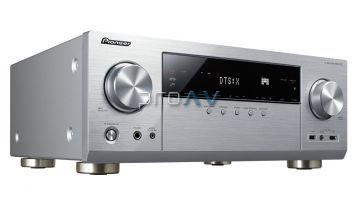

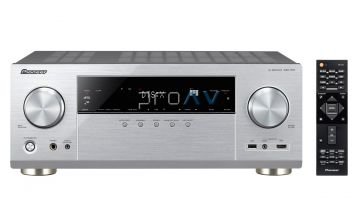

VSX-1131

The VSX-1131 offers a top-quality home theatre experience with the new object-based Dolby Atmos and dts:X audio formats as well as 4K video scaling. Its network capabilities also leave nothing to be desired: cloud streaming with Spotify Connect or full CD quality with Deezer and Tidal? Bluetooth, Webradio, AirPlay? Google Cast? FireConnect, the new, powerful multi-room standard? All the above as standard as the new, intuitive operating concept, the superior MCACC calibration system and even the phono input.

The receiver of unlimited possibilities – in image, sound and programming diversit

The fact that the VSX-1131 has seven amplifier channels immediately points to the major difference to the smaller models.

With the VSX-1131 the serious home cineaste can also operate a Dolby Atmos loudspeaker set with its additional ceiling speakers or "Atmos Enabled Speakers” and so get the first truly enveloping sound in all three spatial dimensions. dts:X as a second object-based surround format follows in a free firmware upgrade.

With 160 watts per channel, the amplifier output meets higher demands, similar to the seven HDMI ports, one of which is located on the front panel. This allows you to quickly connect external players without much hassle.

The VSX-1131 supports 4K UltraHD with HDR on every HDMI port, while it can convert Full HD into 4K using its powerful video scalers.

Music lovers actually no longer need to connect a player to the VSX-1131, because the receiver already has all the various streaming options installed.

With Spotify, Tidal and Deezer, all the payment streaming services are supported; with the latter two even providing full CD quality. TuneIn adds thousands of web radio stations, while AirPlay, Google Play and Bluetooth provide matching wireless access to every tablet or smart phone. And if you’re planning a multi-room system in the near future, you’ll be happy to know that the VSX-1131 is already compatible with FireConnect and so able to feed all connected sources into a corresponding system.

(*) Deezer, Tidal, Google Cast, FireConnect and dts:X are available after free firmware update in the summer of 2016. For the latest information on firmware updates, please visit our website or follow us on the social networks.

Audio Features

• Channels: 7
• Amplification Type: Direct Energy
• 160 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)Dolby Atmos®/Dolby Surround
• DTS:X*1/DTS Neural:X^*1
• Reflex Optimizer
• Dolby® TrueHD/Dolby Digital Plus
• DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS-HD Express
• DSD Playback via Network/USB (5.6 MHz/2ch 2.8 MHz/2ch)
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
• Digital Core Engine with Cirrus Logic (Quad Core) x1
• 384 kHz/32-bit DAC (AK4458)
• HDMI Audio Return Channel (ARC)
• MCACC Auto Room Tuning
  - Phase Control
  - Subwoofer EQ (4 Band)
• Advanced Sound Retriever (2ch)
• Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround
• AM/FM Tuner 40 Presets

Video Features

• Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
• HDR and BT.2020 Support
• Ultra HD Upscaling (1080p 4K)
• 3D Ready (Blu-ray Disc™, Broadcast, and Games)
• Deep Colour (36-bit), "x.v.Colour”

Network Features

• Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
• Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
• Google Cast^*1*2
• Apple AirPlay Certified
• Spotify® Digital Music-Streaming Service Ready^*3
• Internet Radio with TuneIn
• TIDAL Music Streaming Service Ready^*1
• Deezer^*1*4
• Hi-Res Audio File Playback via USB/Network
  - Up to 192 kHz/24-bit ALAC, AIFF , FL AC, WAV
  - 5.6/2.8 MHz DSD Playback
  - Dolby® TrueHD Playback (USB only)

Operating Features

• iControlAV5 Remote Control App Ready (iOS/Android)^*5
• New GUI with System/Network Setup Menu
• Auto Power Off in HDMI Standby Through
• Sleep Timer
• User-Friendly Simple Remote Control

Connections

Front Terminals

• HDMI 1 In
• USB 1 In for USB Drive
• MCACC Setup MIC In
• Audio 1 In (Mini Stereo Jack)
• Phones 1 Out

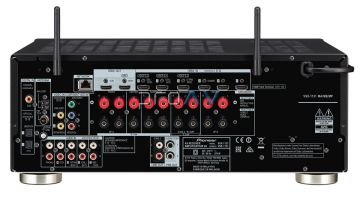

Rear Terminals

• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB)
• Ethernet 1 In
• AV (Component) 1 In (Assignable)
• AV (Composite) 2 In (Assignable)
• Audio 1 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 2 In (Assignable)
• Subwoofer 2 Pre Out

      ·  Zone 2 Line Out

       ·  Speaker 9 ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE      2/Bi-AMP, HEIGHT/SP B)

• ·  FM/AM Antenna

Dimensions & Weight

• Dimensions (W x H x D): 435 x 173 x 370.5 mm
• Weight: 10 kg
