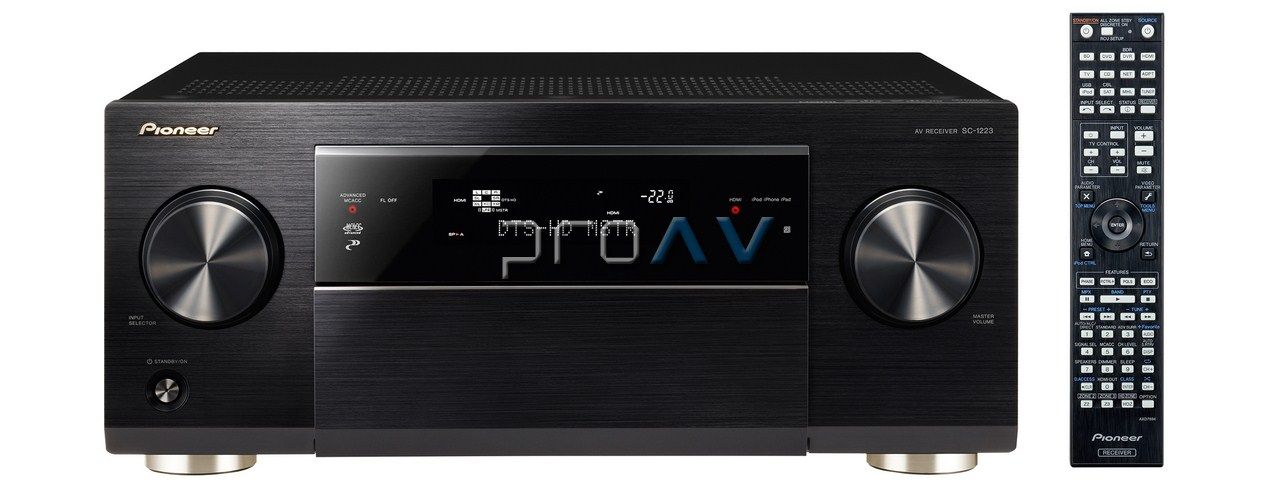

VSX-1223 Ev Sinema Amfisi

All the connections you need.

The SC-1223 is your entry ticket to exciting home entertainment, thanks to the power and finesse of Pioneer’s Class D amplification. This feature-rich AV receiver allows you to connect myriad devices via a multitude of digital inputs. With 8 HDMI inputs, of which one MHL compatible to connect with your Android smartphone, you've got plenty of connectivity options. A digital connection on the front allows you to connect your iPhone, iPod touch or iPad. The SC-1223 is ready for high-resolution music files, gapless playback, 4K Ultra HD video and multi-zone functionality as well as convenient receiver control via Pioneer’s free iControlAV2013 app. In addition, it offers playback of audio files stored in the Direct Streaming Digital (DSD) format through its front USB.

Besides physical connections, you can stream your smartphone's content over DLNA or AirPlay. And via the built-in ECO Mode you can save energy without compromising on sound and video performance.

• Direct Energy HD amplifier

• Output Power per Channel160W

• Impedance at Output Level6Ω

• Number of Channels7

• 4Ω Speaker Support

• Input Connections• 7 x HDMI
  • 1 x MHL HDMI (Front)
  • 3 x Composite
  • 2 x Component (Assignable)
  • 2 x Digital Coaxial (Assignable)
  • 2 x Digital Optical (Assignable)
  • 1 x USB 2.0 host (iPod/iPhone/iPad Digital Audio, USB drive)
  • 1 x Ethernet
  • 1 x Bluetooth adapter port for AS-BT200
  • 1 x rear USB charge port for AS-WL300 Wireless Converter

• Output Connections• 2 x HDMI (selectable for MAIN ZONE/HDZONE)
  • 1 x Monitor Composite
  • 2x preout Subwoofer
  • 7x speaker out
  • 1 x Phones out


• File PlaybackVia LAN / USB:
  • MP3, WAV, AAC, WMA, FLAC, IAFF, Apple Lossless

  192 kHz/24-Bit Audio playback:
  • WAV
  • FLAC
  • AIFF


• MHL Terminal for Android Smartphones

• I/P Control for CI

• HD Audio Formafts• Dolby TrueHD
  • DTS-HD Master Audio

• Audio Return Channel

• Stand-by Pass Through

• 4K Pass Through

• 4K Upscaling

• Control with HDMI (+)

• On-Screen Display (GUI)Via HDMI only in English, French, Italian, German, Spanish, Dutch and Russian

• Firmware updates (via Internet or USB)

• AVNavigator

• Internet Radio

• vTuner

• DLNA Certified (+) (v1.5)

• Windows 7 Certified

• Windows 8 Certified

• Remote ControlGlow-key, learning remote control

• Eco Mode

• Digital Signal ProcessorTexas Instruments Aureus(TM) TMS320DA808

• D/A Converter192 kHz / 24-bit

• A/D Converter96 kHz / 24-bit

• Dimensions (W x H x D)435 x 185 x 396 mm

• Weight11.9 kg
