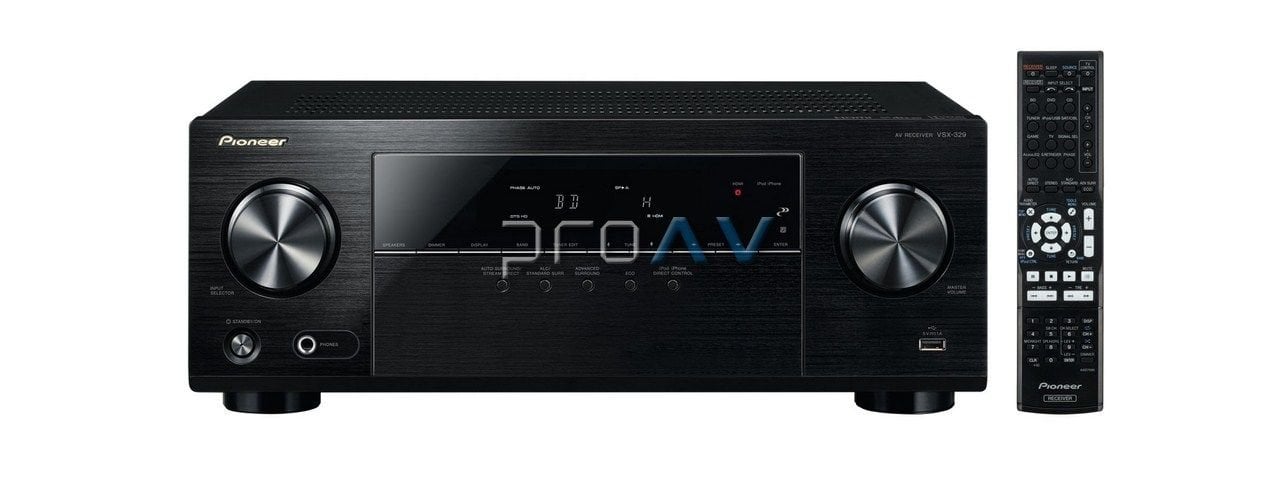

VSX-329 Ev Sinema Amfisi
Budget-friendly 105W AV
Receiver.
Intensify your home entertainment experience
with 5.1 HD surround sound.
Loves your iDevices
Made for iPod, iPhone and iPad certification means it’s easy to connect your Apple devices to seamlessly bring your music and video library into your living room. The front USB terminal allows a direct connection, also providing battery charge for your devices.
Enjoy uncompressed HD audio
The AV receiver supports the latest
Dolby TrueHD and DTS-HD Master Audio surround soundtracks, so you can
enjoy uncompressed, high-definition multichannel audio from Blu-ray
discs, as well as from other media.
Energy efficient settings
Use the ECO Modes to save energy. ECO
Mode 1 is suitable for playing CD’s, 2 channel audio files and
internet radio. The more energy efficient ECO Mode 2 also works with
movies, live concerts and other surround content.
Easy USB access
The AV receiver has an easily
accessible front USB terminal so you can quickly play your favourite
music tracks. It supports all kinds of audio formats, such as MP3,
WMA and AAC. It can also be used to charge connected devices.
Eliminate phase lag
The sophisticated phase control
function eliminates all kinds of phase lag problems, which are
especially troublesome in the low frequencies. The phase control
function requires no extra operation from the user.
4K Ultra HD video ready
Experience real high definition with 4K
ultra-high resolution video. 4K Pass Through ensures your receiver is
ready for the next generation of high def video.
Main Features
Direct Energy amplifier
Output Power per Channel105W
Impedance at Output Level6Ω
Number of Channels5
Signal / Noise Ratio98 dB
Input ConnectionsFront: • 1 x USB 2.0 (iPod/iPhone Digital Audio, USB drive) Rear: • 4 x HDMI • 2 x AV Composite • 1 x Audio (Assignable) • 1 x Digital Coaxial (Assignable) • 1 x Digital Optical (Assignable)
Output ConnectionsFront: • 1 x Phones out Rear: • 1 x HDMI • 1 x Monitor Composite • 1 x Preout Subwoofer • 5 x Speaker out
PlaysAM/FM Tuner (30 presets) Via USB: • iPod Digital Transmission Via HDMI: • SACD
HD Audio Formats • Dolby
TrueHD
• DTS-HD High Resolution Audio
Audio Return
Channel
On-Screen Display (GUI)Graphic User
Interface with Album Artwork (English)
Sleep Timer
Windows 8.1 Compatible
Remote Control
Eco Mode
Apple Compatibility
Works with iPod
Works with iPhone
Compatible Generations
Via USB
iPhone 5/5S/5C
iPhone 4/4S
iPhone 3G/3GS
iPod touch
5G/4G/3G/2G/1G
iPod classic
iPod nano 7G/6G/5G/4G/3G
Supported Functions: Audio playback
Battery charging
Power Output
Power output per channel: 105W
Condition: 1kHz, 1% THD, 6Ω
Rated Power Output 6Ω: 100W per channel
Input (Sensitivity/Imp.): LINE200 mV / 47 kΩ
Frequency Response: LINE10 Hz - 70 kHz, +0/-3 dB
Signal-to-Noise Ratio: LINE (DIN)98 dB
Power RequirementsAC 220-230V / 50/60 Hz
Power Consumption (in use / standby)155 W / 0.45 W (ARC off)
Auto Power Down
Amplifier Specifications
AmplifierDirect Energy Amplifier
Digital Signal ProcessorTexas Instruments AureusTM (TMS320DA808)
D/A Converter: 192 kHz / 24-bit
A/D Converter: 96 kHz / 24-bit
Dimensions: (W x H x D)435 x 168 x 331.5 mm
Weight: 7.2 kg
