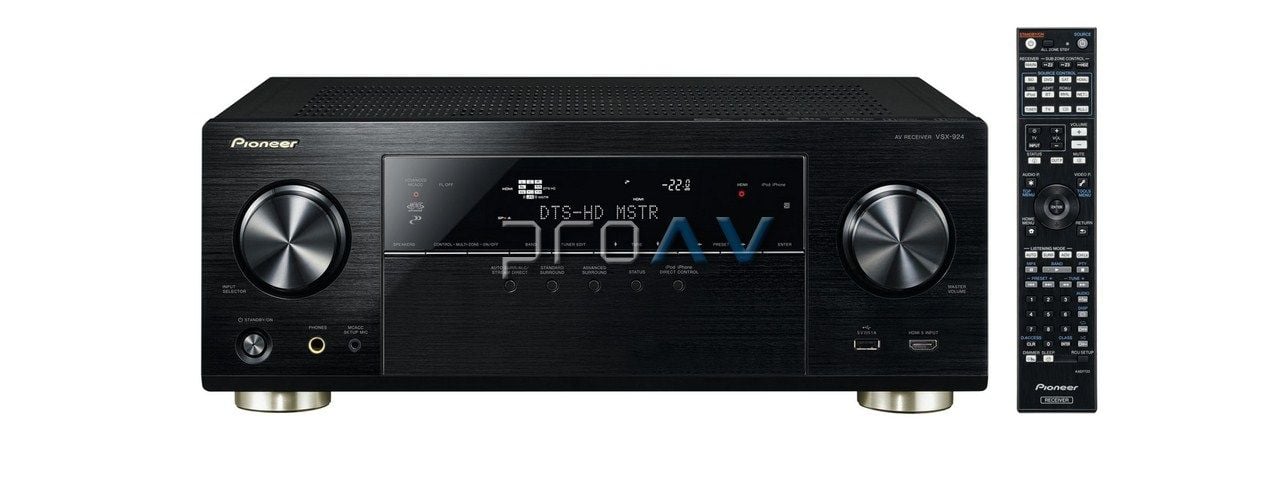

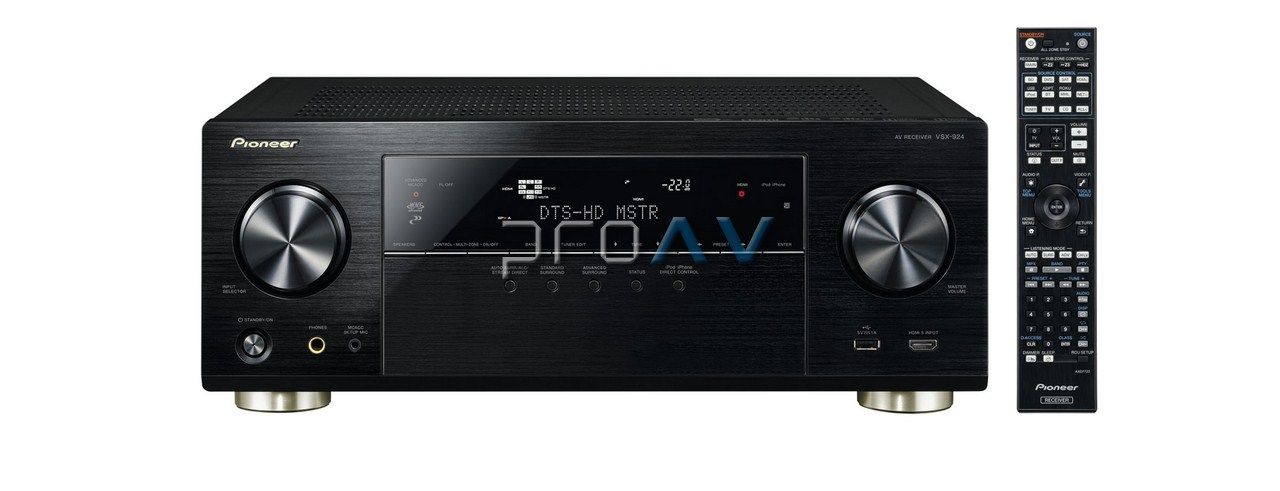

VSX-924 Ev Sinema Amfisi









Revel in true home entertainment.

If you are looking for the perfect power player, the VSX-924 is the one for you. This AV receiver offers up to 150 Watts of clear audio reproduction across all of its 7 channels.

The VSX-924 connects to almost anything: it supports AirPlay, MHL, HTC Connect & DLNA audio networking. It even plays multi-channel 96 kHz/24-bit FLAC and WAV files via USB and DLNA. This AV receiver also provides direct access to Spotify Connect and to vTuner internet radio. And, you can stream your music effortlessly via Bluetooth. Bluetooth is built-in and compatible with the aptX format, which compresses audio files for wireless transmission without affecting the quality, a Wi-Fi adaptor is included for convenience. .

The VSX-924 is ready to pass through 4K Ultra HD video signals to a compatible display. It even upscales lower resolution signals into 4K Ultra HD (up to 60p), allowing you to enjoy the highest quality picture available today. And, thanks to the I/P converter and the Triple HD Noise Reduction, this AV receiver enhances video performance in the best possible way.

Good to know: a powered zone 2 audio output allows you to watch your favourite film in one room, all the while someone else listens to music in another.











 Loves your iDevices
Made for iPod, iPhone and iPad certification means it’s easy to connect your Apple devices to seamlessly bring your music and video library into your living room. The front USB terminal allows a direct connection, also providing battery charge for your devices.





Professional audio components
This receiver is equipped with a high quality SABRE Premier Audio DAC, a digital to analogue converter that produces crystal clear sound. The DAC also eliminates jitter, so the signal remains free of digital artefacts.



Energy efficient settings
Use the ECO Modes to save energy. ECO Mode 1 is suitable for playing CD’s, 2 channel audio files and internet radio. The more energy efficient ECO Mode 2 also works with movies, live concerts and other surround content.





Easy USB access
The AV receiver has an easily accessible front USB terminal so you can quickly play your favourite music tracks. It supports all kinds of audio formats, such as MP3, WMA and AAC. It can also be used to charge connected devices.





4K Ultra HD video ready
Experience real high definition with 4K ultra-high resolution video. 4K Pass Through ensures your receiver is ready for the next generation of high def video.





Smarter room calibration
The MCACC System automatically compensates for differences in speaker size, level and distance, and equalises the frequency response. The included Phase Control technology furthermore improves the sound quality.



Always in full control
Using the convenient iControlAV5 app, you can easily control all important functions directly from your smartphone or from your tablet. The iControlAV5 app is available for free for iOS and Androiddevices





Stream with ease
AirPlay compatibility allows enthusiasts to access their iTunes music library through the AV receiver. This AV receiver is also DLNA certified (1.5) to work as a Digital Media Player and Digital Media Renderer.





Enjoy Spotify Connect
Enjoy on demand access to millions of songs with Spotify’s digital streaming service. This AV receiver is ready for Spotify Connect, which lets you select songs on your Spotify app to listen to on your audio system.







Bluetooth built-in
Easily stream songs from compatible devices using the built-in Bluetooth wireless technology. This AV receiver features A2DP and Audio/Video Remote Control Profile (AVRCP). Supported codecs include SBC, AAC, and aptX.







Hi-Res multi-channel audio
Enjoy high-resolution audio playback like never before. This AV receiver supports both AIFF and Apple Lossless hi-resolution audio files. You can even playback the latest multichannel WAV and FLAC audio files











Main Features

Direct Energy amplifier

Output Power per Channel: 150W

Impedance at Output Level: 6Ω

Number of Channels: 7

Signal / Noise Ratio: 100 dB

Input Connections

Front

1 x HDMI


1 x USB 2.0 (iPod/iPhone Digital Audio, USB drive)


1 x MCACC Setup MIC



Rear

6 x HDMI (1 for HDMI/MHL)


1 x Ethernet


2 x AV Composite


1 x Audio (Assignable)


1 x Digital Coaxial (Assignable)


1 x Digital Optical (Assignable)


1 x Component Video(Assignable)


1 x IR


1 x USB charge port for Wireless LAN Converter


Output Connections

Front

1 x Phones out



Rear

2 x HDMI

1 x Monitor Composite


1 x IR


2 x ZONE Audio Preout


2 x Preout Subwoofer


9 x Speaker out

Plays: AM/FM Tuner (63 presets)


Internet Radio with vTuner


Spotify Ready


Apple AirPlay



Via LAN/USB: MP3, WAV, AAC, WMA, FLAC, AIFF, DSD, and Apple Lossless


iPod Digital Transmission

(*)

192 kHz/24-bit audio playback:
WAV, FLAC, and AIFF


Multi-channel audio file playback(**):
 WAV, FLAC


Gapless playback:
• MP3, WAV, AAC, FLAC, AIFF, and Apple Lossless(***)


Via HDMI: SACD



(*) Via USB


(**) Up to 96 kHz/24-bit, 5.0/5.1 channel


(***) Except multi-channel audio streaming

MHL Terminal for Android Smartphones

HD Audio Formats: Dolby TrueHD
- DTS-HD Master Audio

Audio Return Channel

Stand-by Pass Through

Control with HDMI (+)

On-Screen Display (GUI): Graphic User Interface with Album Artwork (HDMI only)



7 languages : Dutch, English, French, German, Italian
• Russian, Spanish

Sleep Timer

Firmware updates: (via Internet or USB)

AVNavigator

Bluetooth: (Built-in, with aptX support)

Internet Radio: (vTuner)

Spotify Connect

DLNA Certified: (v1.5)

HTC Connect (+)

Windows 8.1 Compatible

Remote Control: Glow-key, learning remote control

Eco Mode







Input & Output connections



Component Video Input/Output: 1/- (assignable)



Composite Video Input/Output: 2/-

Digital Optical Input/Output: 1/- (assignable)

Digital Coaxial Input: 1/- (assignable)

Ethernet

HDMI Front Input

HDMI Input/Output: 7 (rear)/2

Headphone Input



IR In/Out (+): 1/1



Large speaker terminals

Pre-amp Output: (2.1 ch)



Speaker A/B: Versatile speaker configuration



USB Host (Front)



Apps: iControlAV5 (+) - AVNavigator(Built-in)





Apple Compatibility

Works with iPod

Works with iPhone

AirPlay

Compatible GenerationsVia USB: iPhone 5/5S/5C
, iPhone 4/4S,
iPhone 3G/3GS


iPod touch 5G/4G/3G/2G/1G
 and iPod classic


iPod nano 7G/6G/5G/4G/3G

Supported Functions: Audio playback-Battery charging







Network Features

Wireless LAN (AXF-7031 WLAN converter included)

Network Standby





Surround Sound Formats

Dolby Pro Logic IIz (+)

Dolby TrueHD

DTS Neo X

DTS-HD Master Audio







Power Output

Power output per channel: 150W

Condition: 1kHz, 1% THD, 6Ω

Rated Power Output: 8Ω, 2-channel: 105W per channel
- 6Ω: 150W per channel

Input (Sensitivity/Imp.): LINE: 315 mV / 47 kΩ

Frequency Response: LINE: 5 Hz - 100 kHz, +0/-3 dB

Signal-to-Noise Ratio: LINE: (DIN): 100 dB

Power Requirements: AC 220-230V / 50/60Hz

Power Consumption (in use / standby): 550 W / 0.1 W

Auto Power Down

Amplifier Specifications

Amplifier: Direct Energy Amplifier

Digital Signal Processor: Texas Instruments AureusTM (TMS320DA808)

D/A Converter: 192 kHz / 24-bit

A/D Converter: 96 kHz / 24-bit

Dimensions (W x H x D): 435 x 168 x 362.5  mm

Weight: 9.8 kg
