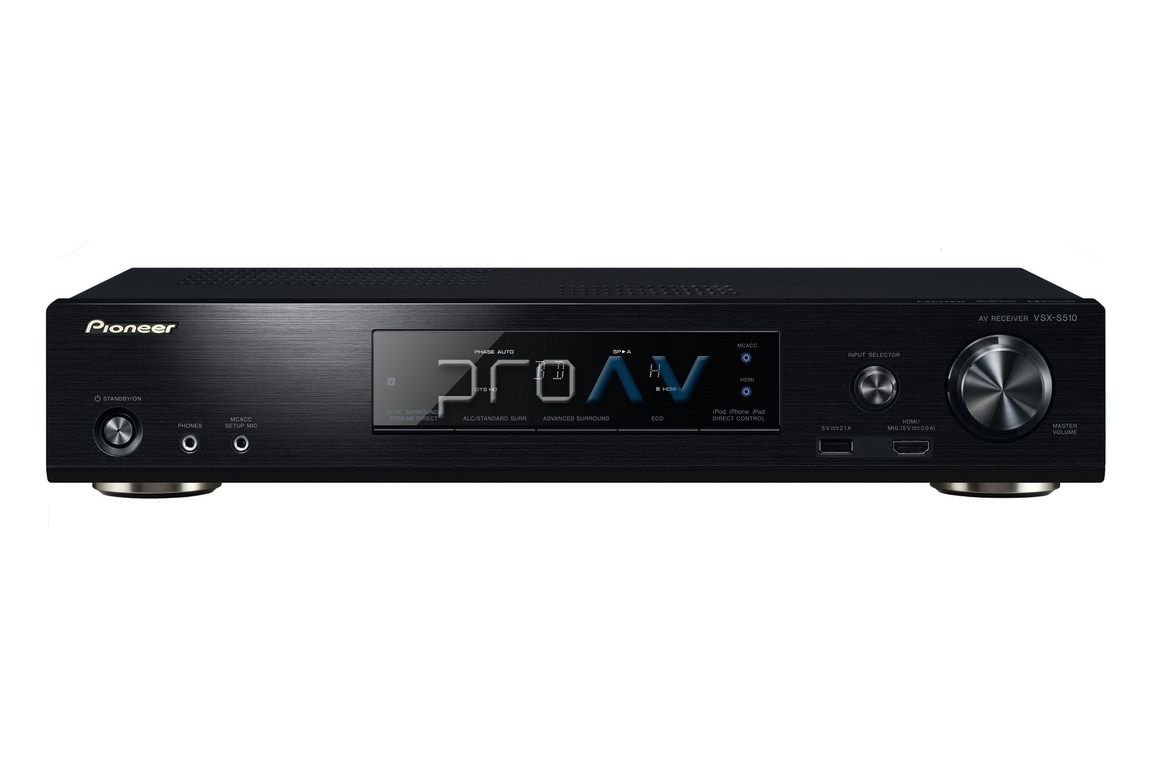

VSX-S510 Ev Sinema Amfisi









Small housing, massive power.

Measuring just 85 mm high and 317 mm deep, the VSX-S510 slim receiver is still packed with tons of features. High-resolution music file playback, 4K Ultra HD Pass Through, vTuner internet radio and an energy-saving ECO Mode are just a few of the many features you'll find in this little black box. The Class D amplifier section of the receiver delivers affluent power to each channel, providing you with great detail and high dynamic range.

Connect your iPod, iPhone or iPad via USB or via AirPlay to play back your favourite tunes through your home cinema. Android is supported as well with a front MHL port. On top of that, the VSX-S510 features Spotify Connect, allowing you to play all tracks from Spotify's massive music library and your personalised playlists via the VSX-S510.

A WiFi converter is optional.









 Loves your iDevices
Made for iPod, iPhone and iPad certification means it’s easy to connect your Apple devices to seamlessly bring your music and video library into your living room. The front USB terminal allows a direct connection, also providing battery charge for your devices.



Energy efficient settings
Use the ECO Modes to save energy. ECO Mode 1 is suitable for playing CD’s, 2 channel audio files and internet radio. The more energy efficient ECO Mode 2 also works with movies, live concerts and other surround content.



4K Ultra HD video ready
Experience real high definition with 4K ultra-high resolution video. 4K Pass Through ensures your receiver is ready for the next generation of high def video.





Smarter room calibration
The MCACC System automatically compensates for differences in speaker size, level and distance, and equalises the frequency response. The included Phase Control technology furthermore improves the sound quality.





Enjoy HD audio
Besides Dolby Pro Logic II, the receiver supports Dolby TrueHD and DTS-HD so you can enjoy high-quality audio from Blu-ray discs.



Enjoy Spotify
Spotify Connect is a Premium feature that lets you play and control Spotify on your devices. Choose music on your mobile and listen on your speakers. At home, hit play on your mobile and hear high fidelity sound on your audio speakers. Enjoy instant access to millions of songs with Spotify.





Stream with ease
DLNA and AirPlay are widely supported on PCs, laptops, smartphones and other devices. As this receiver is DLNA and AirPlay certified, you can easily stream audio from such a device. Apple's AirPlay lets you stream music from your entire iTunes library.





Always in full control
The free Pioneer ControlApp lets you modify the most important receiver functions from your smartphone or tablet (iOS /Android).







Massive power
audiophile level Class D amplification brings you unprecedented power output. Short signal paths ensure impeccable sound, while efficient cooling provides superior performance with lower power consumption (-44% vs analogue amps). Now with 4-16Ω speaker support.











Main Features

Output Power per Channel: 110W

Impedance at Output Level: 4Ω

Number of Channels: 6.2

Signal / Noise Ratio: 98 dB

Input Connections

5 x HDMI

1 x MHL HDMI (Front)

1 x Digital Coaxial (assignable)

1 x Digital Optical (assignable)

1 x USB 2.0 host (iPod/iPhone/iPad/iPad mini Digital Audio, USB drive)

1 x Ethernet

1 x Bluetooth adapter port for AS-BT200



Output Connections

1 x HDMI


1 x Composite


2x preout Subwoofer


6x speaker out


1 x Phones out

HD Audio Formats: Dolby TrueHD, DTS-HD Master Audio

Audio Return Channel

Stand-by Pass Through

Control with HDMI (+)

On-Screen Display (GUI)Analogue (English)

Remote ControlSR remote control

Eco Mode

Input & Output connections

Bluetooth Adapter Port (+)



Digital Optical Input/Output: 1/- (assignable)

Digital Coaxial Input: 1/- (assignable)

Front Mini Jack

HDMI Input/Output: 5/1

Headphone Input

Large speaker terminals

Pre-amp Output: (SW / SB)

USB Host (Front)

Ethernet



Apple Compatibility

Compatible Generations

Pad 4G(*)/3G
• iPad2,iPad
iPad mini(*)
• iPhone 5(*),iPhone 4S
 iPhone 4,iPhone 3GS
• iPhone 3G,iPhone
 iPod touch 5G(*)/4G/3G/2G/1G
• iPod nano 7G(*)/6G(*)/5G/4G/3G
(*) : Audio only

Supported Functions

Audio & video playback


On-screen album art
• Charging

Apps

Control App

Air Jam



Network Features

Wireless LANOptional WiFi converter AS-WL300 available





Surround Sound Formats

Dolby Digital (+)

Dolby Digital EX (+)

Dolby Digital Plus

Dolby Pro Logic II (+)

Dolby Pro Logic IIx (+)

Dolby TrueHD

DTS (+)

DTS-ES

DTS Neo: 6 (+)

DTS 96/24 (+)

DTS-Express

DTS-HD High Resolution Audio

DTS-HD Master Audio



Video Features

Deep Colour (+)

3D Ready

x.v.Colour

HD Digital Film Direct 24

4K Pass Through

Power Output

Power output per channel: 110W

Condition: 1kHz, 1% THD, 4Ω

Rated Power Output: 110W per channel

Input (Sensitivity/Imp.): LINE: 200 mV / 47 kΩ

Frequency Response: LINE: 5 Hz - 100 kHz +0/-3 dB

Signal-to-Noise Ratio: LINE (DIN): 90 dB

Power Output

Power output per channel: 110 W

Condition: 1 kHz, 4Ω 1% THD

Rated Power Output: 110 W per channel

Input (Sensitivity/Imp.): LINE: 200 mV / 47 kΩ

Frequency Response: LINE: 5 Hz - 100 kHz +0/-3 dB

Signal-to-Noise Ratio: LINE (DIN): 98 dB

Power Requirements: AC 220 - 230 V / 50/60 Hz

Power Consumption (in use / standby): 96 W / 0,3 W



Amplifier Specifications

AmplifierClass D Amplifier

Digital Signal ProcessorTexas Instruments AureusTM

D/A Converter: 192 kHz / 24-bit

A/D Converter: 96 kHz / 24-bit

Dimensions (W x H x D): 435 x 85 x 317  mm

Weight: 4.1 kg
