InstaShow™ Plug & Play. One Button to Start Wireless Full HD Presentations
BenQ
InstaShow™ is a unique no-software solution that allows multiple
presenters to present on any device, with the simplest plug and play
operation requiring no driver installation or execution and
compatibility with any OS or hardware platform.*
*The only compatibility requirement are USB/HDMI ports on the source laptop and HDMI input on the display device.
Instant Visual Communication and Collaboration for the Modern Enterprise
It’s human nature to resist change, especially without explanation, which is why new technology can be intimidating. InstaShow™ requires zero learning curve, plugging right into your daily routine to start sharing instantly. Simply intuitive, anyone that tries InstaShow immediately knows how to use it for collaborative presentations.InstaShow is a wireless solution that ushers opportunities in network collaboration without additional facility investment or training. Any business customer, even those without WiFi infrastructure, can deploy InstaShow for employees and visitors to enjoy simple and quick wireless presentation without awkward moments setting up, enabling instant teamwork for inspirational results.
One Simple Button to Start Presenting

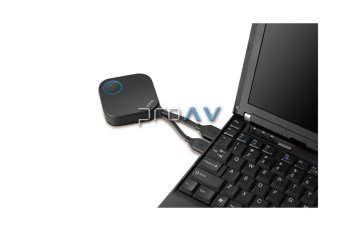

Just a single button, InstaShow™ is an all-hardware solution that simply plugs into the source laptop. It takes mere seconds to start presenting wirelessly. There is no software at all to install, configure, or execute, reducing downtime and uncomfortable silences to kick off a productive meeting.
No Software Setup or Maintenance
InstaShow significantly enhances corporate efficiency and agility by offering a natural, intuitive way for up to sixteen presenters to start presentations without waiting and wasting valuable meeting time. With conference rooms always at a premium in today’s enterprise settings, InstaShow significantly boosts corporate productivity by maximizing time and teamwork. Additionally, because it has no software to configure or update and no OS compatibility to maintain, InstaShow is free from IT support.
Join Anytime with Simple Pairing
Pairing the InstaShow transmit button to a receiver host is equally simple. It just takes holding down the pairing key on the host for five seconds, and doing the same on the transmitter for automatic wireless pairing. The host can even be put into pairing mode via web control, for cases where it is installed onto a ceiling-mounted projector or otherwise hard to reach.
Presenter-Controlled Video Mode Switching
Our exclusive InstaVideo function optimizes InstaShow’s audiovisual settings to spontaneously switch from clear presentation mode to smooth video mode with stereo sound at the click of a side button without requiring IT support, cable clutter or complex software settings. By letting presenters quickly customize the displayed contents for precise productivity or wireless Full HD 1080p video, users can confidently blend text, graphs and charts, pictures, and multimedia audio and video without hesitation for the most effective meetings.
Powerful Compatibility on Any Platform
Our universal all-hardware solution allows
collaboration and sharing without boundaries. InstaShow users can
freely present on any device with a standard HDMI input, utilizing
content from a wide range of devices such as laptops, Blue-ray or DVD
players, media boxes such as Apple TV, and PS4 or Xbox.
Furthermore, InstaShow exclusively offers extended desktop mode in both
Windows and OS X to enable presenter view. Presenters can privately view
or take notes, backup data, or monitor other applications while the
presentation is ongoing, and still deliver an inspirational performance.
Trustworthy Security Protection
AES 128-bit security encryption and WPA2 authentication protocol ensure that corporate intellectual property remains private and safe from tampering or unintended disclosure. The security handshake also assured smooth, high-quality wireless streaming of presentations. This allows presenters to share confidential information without the concern for security breaches during the presentation. InstaShow™ also supports HDCP to ensure all content with digital rights management will play smoothly without delay, error messages or interruption.
Reliably Stable Wireless Connection
Simple and convenient, InstaShow is also steadfastly reliable. Our exclusive automatic WiFi channel selection and auto-reconnect features allow presenters to depend on InstaShow, without concern for any stoppages or interruptions caused by unstable WiFi environments. Equipped with WiFi 802.11ac for high performance up to 400Mbps, InstaShow provides smooth wireless streaming of Full HD 1080p content without lagging, even in wireless traffic-heavy environments. IT managers can rely on InstaShow to reduce user complaints and helpdesk resources. Fast Response for Presentation Video and Animation
Fast Response for Presentation Video and Animation
Infinitesimal input latency lag less than 100ms enables natural, precise mouse movements and smooth execution of PowerPoint animations and transitions for professional-looking presentations. Corporate presenters and participants can concentrate on the meeting with the smoothest flow and follow critical points of the content intuitively.
Optimal Intelligent Resolution Matching
Utilizing EDID, InstaShow automatically configures the source notebook’s resolution setting to match the display device pixel-by-pixel for perfectly clear picture quality, whether it is a projector, flat-panel display, monitor, or TV. InstaShow users can focus on the meeting rather than adjusting resolution settings or requesting IT support to adjust display timing.
Assurance of All-Hardware Solution
InstaShow provides integrated hardware encoding and decoding, providing peace of mind for assured wireless presentation performance regardless of the operating system capabilities of the source notebook.
Eco-Conscious Operation for Efficiency and Productivity
InstaShow offers multiple ways that users
may select via web management to conserve energy for eco-conscious
corporations. First, HDMI Standby cuts InstaShow’s power consumption to
near zero after the connected device is turned off, extending
InstaShow’s lifespan. When the display device is turned back on,
InstaShow also wakes up automatically without the need for a separate
remote control, especially useful when InstaShow is ceiling mounted.
In addition, InstaShow can be configured to enter Network Standby when
there is no source activity within a user-defined timeout, cutting HDMI
transmission and triggering sleep mechanisms on connected display
devices, which simply need to be turned back on when the presentation or
meeting resumes. This reduces corporate TCO not only from power savings
and extended life from the InstaShow device, but from meeting room
displays that are left running unused as well. In fact, up to 50% of
display power consumption* can be conserved by InstaShow activating
Blank Mode when used in conjunction with a BenQ projector.
*Actual power savings vary depending on the display device.
General Specifications
Color
Black
Support Platform
Windows, MAC, Chrome. Any OS supports HDMI standard 1.4
Video Outputs
HDMI 1.4, comply with HDCP
Frame Rate
Up to 60 fps depending on environment
Output Resolution
800 x 600, 1280x720 (720P),1024 x 768
(XGA),1280 x 768,1280x800(WXGA),1280 x 1024,1280 x 960,1360 x 768,1440 x
900,1400 x 1050,1680 x 1050, 1920x1080 (1080p)
Input Resolution
Up to 1920x1080
Simultaneous Connections
16 pcs
Audio
Stereo, Radio quality 16 bits 48KHz
Wireless
IEEE 802.11ac, 5GHz, 2T2R
Data Rate Wireless
Up to 867Mbps
Authentication Protocol
WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise)
Security (encryption )
AES 128 bit
Reach
Max. 8m between InstaShow Button and InstaShow Host
Temperature Range
Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)
Humidity
Operation: 10% to 80% relative humidity, non-condensing
Storage: 5% to 90% relative humidity, non-condensing
InstaShow PackageInstaShow Button
x2
InstaShow Host
x1
Cradle
x1
USB Power Cable
x1 (150cm, USB Type A 3.0, micro USB)
HDMI Cable
x1 (80cm)
USB Extended Cable
x1 (15cm), x1 (80cm)
Antenna
x2 (Black)
Adapter
x1
Velcro Strap (black)
x1
Quick Start Guide
x1
Safety Statement
x1
Double-side Sponge Tap
x1
Rubber Feet
x4
Screws
x4
InstaShow ButtonCable
USB Type A, HDMI Cable
Reset Button
x1
Mode Key
x1
LED
*Red (boosting), Green (wifi connected), Blue (presenting)
Power Supply
DC 5V±10%, 0.9A
Power Consumption
Normal: 4.5W
Dimensioin (WxHxD)
84.5x189.55x19.9mm
Weight
100g
InstaShow HostPower Button
x1
Paring Key
x1
LAN
x1(10/100 Mbps)
Video Output
x1 HDMI 1.4 (video and audio)
LED
*Red (boosting), Green (ready for connection), Blue (presenting)
DC Power Jack
x1 (micro USB)
Power Supply
DC 5V±10%, 1.5A
Power Consumption
Normal: 5W
Network standby: 2W
HDMI standby: 0.02W
Dimension (WxHxD) (not include rubber feet)
110x110x27mm (99mm with antenna), (not include rubber feet)
Weight (with antenna)
150g
InstaShow CradleDimension (WxHxD)
85x97.5x170.4 mm
Weight
630g
Optional: InstaShow Button KitInstaShow Button
x2
Cradle
x1
USB Extended Cable
x1 (15cm), x1 (80cm)
Quick Start Guide
x1
Safety Statement
x1
Notes1
Please find detail LED behavior in the user manual.
2
Wireless connection speed is depended on wireless environment.
3
You may purchase optional InstaShow Button
Kit for up to sixteen users in your meeting room. Please contact local
dealers for more information.
| General Specifications |
|
| Color | Black |
| Support Platform | Windows, MAC, Chrome. Any OS supports HDMI standard 1.4 |
| Video Outputs | HDMI 1.4, comply with HDCP |
| Frame Rate | Up to 60 fps depending on environment |
| Output Resolution | 800 x 600, 1280x720 (720P),1024 x 768 (XGA),1280 x 768,1280x800(WXGA),1280 x 1024,1280 x 960,1360 x 768,1440 x 900,1400 x 1050,1680 x 1050, 1920x1080 (1080p) |
| Input Resolution | Up to 1920x1080 |
| Simultaneous Connections | 16 pcs |
| Audio | Stereo, Radio quality 16 bits 48KHz |
| Wireless | IEEE 802.11ac, 5GHz, 2T2R |
| Data Rate Wireless | Up to 867Mbps |
| Authentication Protocol | WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise) |
| Security (encryption ) | AES 128 bit |
| Reach | Max. 8m between InstaShow Button and InstaShow Host |
| Temperature Range | Operating: 0°C to +40°C (+32°F to +104°F) Storage: -10°C to +60°C (+14°F to +140°F) |
| Humidity | Operation: 10% to 80% relative humidity, non-condensing Storage: 5% to 90% relative humidity, non-condensing |
| InstaShow Package |
|
| InstaShow Button | x2 |
| InstaShow Host | x1 |
| Cradle | x1 |
| USB Power Cable | x1 (150cm, USB Type A 3.0, micro USB) |
| HDMI Cable | x1 (80cm) |
| USB Extended Cable | x1 (15cm), x1 (80cm) |
| Antenna | x2 (Black) |
| Adapter | x1 |
| Velcro Strap (black) | x1 |
| Quick Start Guide | x1 |
| Safety Statement | x1 |
| Double-side Sponge Tap | x1 |
| Rubber Feet | x4 |
| Screws | x4 |
| InstaShow Button |
|
| Cable | USB Type A, HDMI Cable |
| Reset Button | x1 |
| Mode Key | x1 |
| LED | *Red (boosting), Green (wifi connected), Blue (presenting) |
| Power Supply | DC 5V±10%, 0.9A |
| Power Consumption | Normal: 4.5W |
| Dimensioin (WxHxD) | 84.5x189.55x19.9mm |
| Weight | 100g |
| InstaShow Host |
|
| Power Button | x1 |
| Paring Key | x1 |
| LAN | x1(10/100 Mbps) |
| Video Output | x1 HDMI 1.4 (video and audio) |
| LED | *Red (boosting), Green (ready for connection), Blue (presenting) |
| DC Power Jack | x1 (micro USB) |
| Power Supply | DC 5V±10%, 1.5A |
| Power Consumption | Normal: 5W Network standby: 2W HDMI standby: 0.02W |
| Dimension (WxHxD) (not include rubber feet) | 110x110x27mm (99mm with antenna), (not include rubber feet) |
| Weight (with antenna) | 150g |
| InstaShow Cradle |
|
| Dimension (WxHxD) | 85x97.5x170.4 mm |
| Weight | 630g |
| Optional: InstaShow Button Kit |
|
| InstaShow Button | x2 |
| Cradle | x1 |
| USB Extended Cable | x1 (15cm), x1 (80cm) |
| Quick Start Guide | x1 |
| Safety Statement | x1 |
| Notes |
|
| 1 | Please find detail LED behavior in the user manual. |
| 2 | Wireless connection speed is depended on wireless environment. |
| 3 | You may purchase optional InstaShow Button Kit for up to sixteen users in your meeting room. Please contact local dealers for more information. |
